FlexDSL Orion3 - Panel Descriptions; Panel Description V84 S (Version with SFP interface); Panel Description V841 (Special Industrial Version)

FlexDSL Telecommunications AG
Steinackerstrassse 31
8902 Urdorf
Switzerland
Page 7/9
Tel: +41 44 741 52 90
Fax: +41 44 741 52 93
Email: info@flexdsl.ch
Web: www.flexdsl.ch

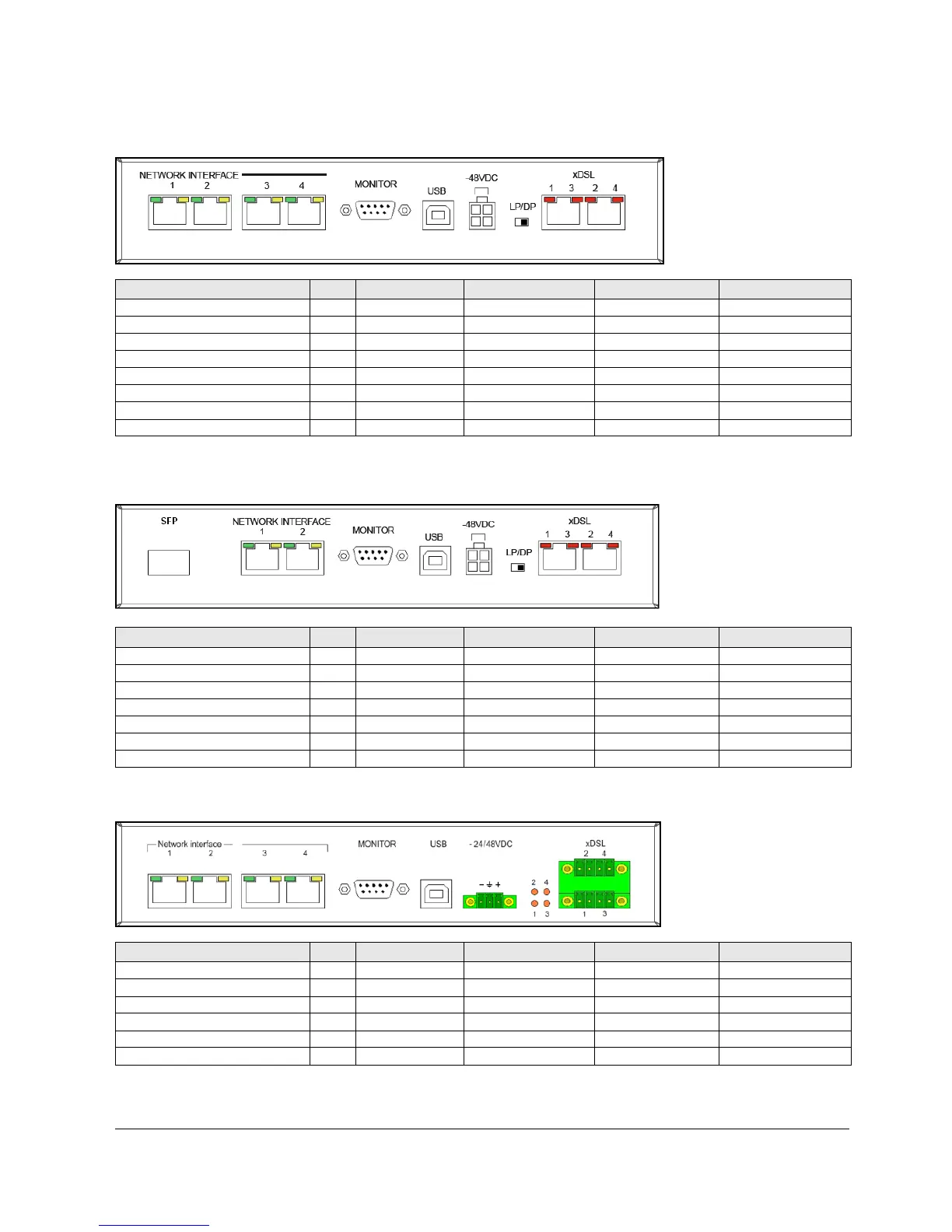

Panel Description
Connector
LED
RED
GREEN
AMBER
OFF
xDSL 1 (DSL No 1)
Left
DSL not working
DSL normal operation
xDSL 1 (DSL No 3, only V84)
Right
DSL not working
DSL normal operation
xDSL 2 (DSL No 2)
Left
DSL not working
DSL normal operation
xDSL 2 (DSL No 4, only V84)
Right
DSL not working
DSL normal operation
G.703 1 or G.703 2 (NI 3 V81)
Left
E1 normal operation
Failure / no E1 Signal
G.703 1 or G.703 2 (NI 3 V81)
Right
E1 Alarm
E1 normal operation
Ethernet (NI 1/2 V83, 1..4 on V84)
Left
Blinking = Data
Connection not active
Ethernet (NI 1/2 V83, 1..4 on V84)
Right
100 Mbit/s data rate
10 Mbit/s data rate
* NI means NETWORK INTERFACE
Panel Description V84S (Version with SFP interface)
Connector
LED
RED
GREEN
AMBER
OFF
xDSL 1 (DSL No 1)
Left
DSL not working
DSL normal operation
xDSL 1 (DSL No 3)
Right
DSL not working
DSL normal operation
xDSL 2 (DSL No 2)
Left
DSL not working
DSL normal operation
xDSL 2 (DSL No 4)
Right
DSL not working
DSL normal operation
Ethernet (NI 1/2)
Left
Blinking = Data
Connection not active
Ethernet (NI 1/2)
Right
100 Mbit/s data rate
10 Mbit/s data rate
SFP
n/a
Panel Description V84I (Special Industrial Version)
Connector
LED
RED
GREEN
AMBER
OFF
xDSL 1 (DSL No 1)
1
DSL not working
DSL normal operation
xDSL 1 (DSL No 3)
3
DSL not working
DSL normal operation
xDSL 2 (DSL No 2)
2
DSL not working
DSL normal operation
xDSL 2 (DSL No 4)
4
DSL not working
DSL normal operation
Ethernet (1..4)
Left
Blinking = Data
Connection not active
Ethernet (1..4)
Right
100 Mbit/s data rate
10 Mbit/s data rate
