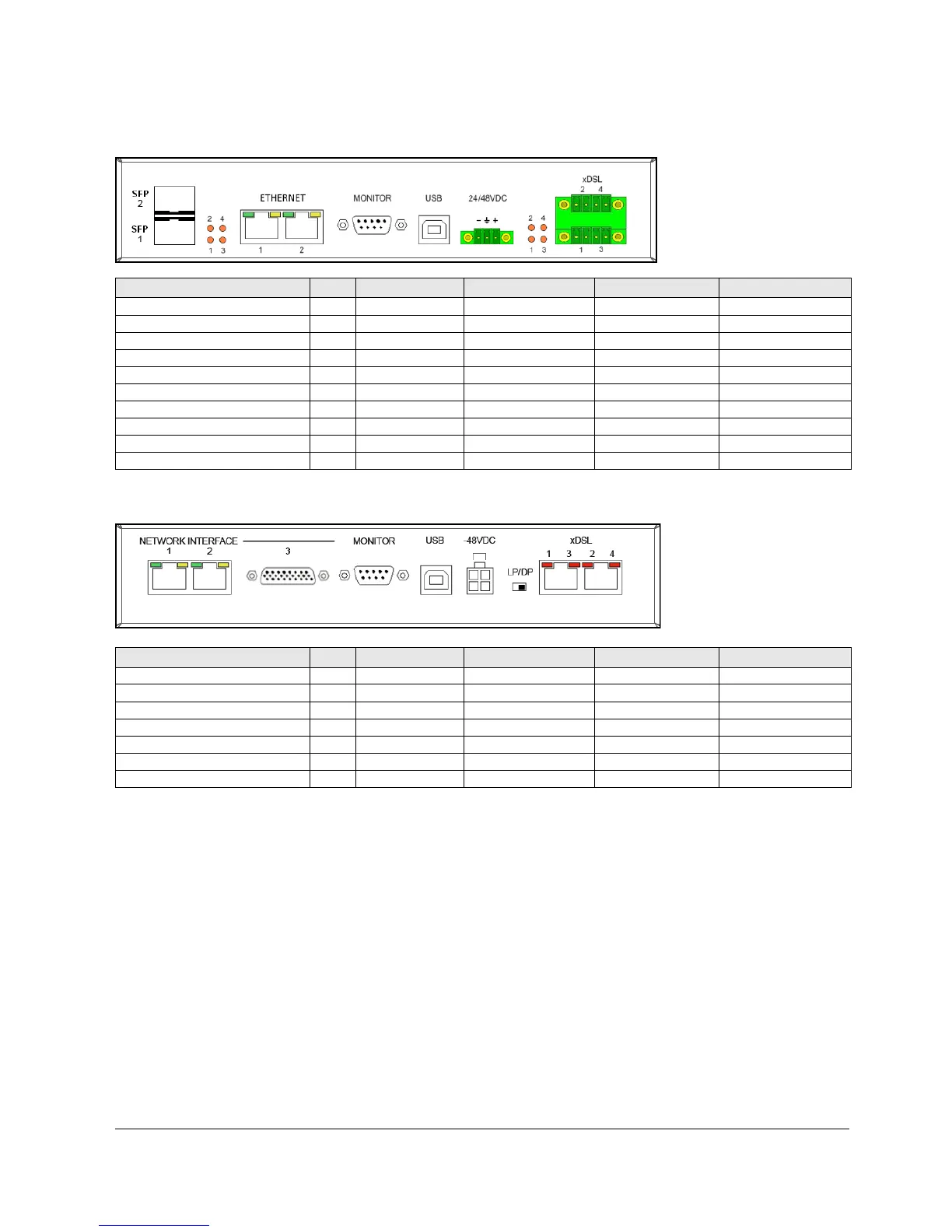

Panel Description V84IS (Special Industrial Version with SFP interfaces)
Connector
LED
RED
GREEN
AMBER
OFF
xDSL 1 (DSL No 1)
1
DSL not working
DSL normal operation
xDSL 1 (DSL No 3)
3
DSL not working
DSL normal operation
xDSL 2 (DSL No 2)
2
DSL not working
DSL normal operation
xDSL 2 (DSL No 4)
4
DSL not working
DSL normal operation
Ethernet (1/2)
Left
Blinking = Data
Connection not active
Ethernet (1/2)
Right
100 Mbit/s data rate
10 Mbit/s data rate
SFP 1
1
Blinking = Data
Connection not active
SFP 1
3
100 Mbit/s data rate
SFP 2
2
Blinking = Data
Connection not active
SFP 2
4
100 Mbit/s data rate
Panel Description (Version with Serial Interface)
Connector
LED
RED
GREEN
AMBER
OFF
xDSL 1 (DSL No 1)
1
DSL not working
DSL normal operation
xDSL 1 (DSL No 3)
n/a
xDSL 2 (DSL No 2)
2
DSL not working
DSL normal operation
xDSL 2 (DSL No 4)
n/a
Ethernet (1..2)
Left
Blinking = Data
Connection not active
Ethernet (1..2)
Right
100 Mbit/s data rate
10 Mbit/s data rate
Serial (3)
n/a
Environment, EMC and Safety
Storage:
ETS 300 019-1-1 Class 1.2
(-40C … +70C) Extended Temperature
Transportation:
ETS 300 019-1-2 Class 2.3
(-40C … +70C)
Operation:
ETS 300 019-1-3 Class 3.2
(-25C … +70C) Extended Temperature
When inside outdoor rack:
ETS 300 019-1-3 Class 3.3/3.4 partly over -25°C … +80°C
Dimension:
216(W)x165(D)x43(H) mm
Weight
< 1.0kg in Metal DIN-Rail Enclosure
Standards:
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
EN 300 386 V1.6.1:2012
EN 61000-4-3:2006/A1:2008/A2:2010
EN 50121-4:2006/AC:2008
EN 61000-4-4:2012
EN 55022:2010/AC:2011
EN 61000-4-5:2014
EN 55024:2010
EN 61000-4-6:2014
EN 61000-4-2:2009
EN 61000-4-11:2004
