FlexPoint FPR1207-F - System Features

To Next Page

To Previous Page

1.0 Introduction, continued

1.3 System Features

• A robust power system which provides 7W of 12Vdc primary and standby power for FTTx

activity

• Easy customer replaceable hot swappable 7.2Ah battery

• Emergency battery reserve for greater E911 availability

• Battery management system engineered to provide optimum service life and runtime

• Local visual and audible status indicators

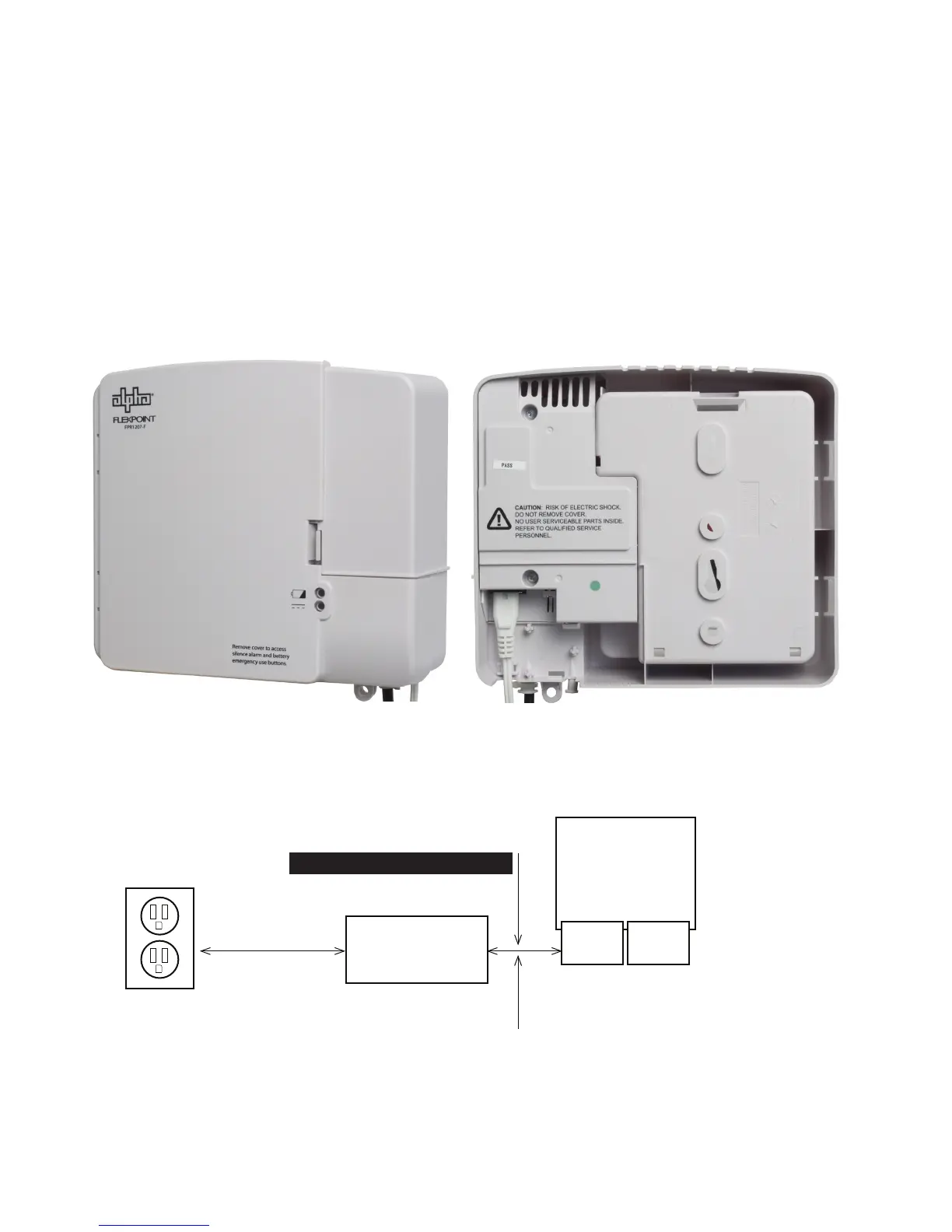

Fig. 1-1, Front View Fig. 1-2, Rear View

Fig. 1-3, System Block Diagram

ONT

FPR1207-F

12Vdc UPS

Up to 6’,

(1.8 meters)

Network

Area

Customer

Area

120Vac/230Vac

FlexPoint FPR1207-F

Coaxial cable with Type-F connector

FPR1207-F: Up to 5’ (~1.5 meters)

010-344-B1-001 Rev. A (2/2014)
