Step 1: Hook Up the FLEX-1500

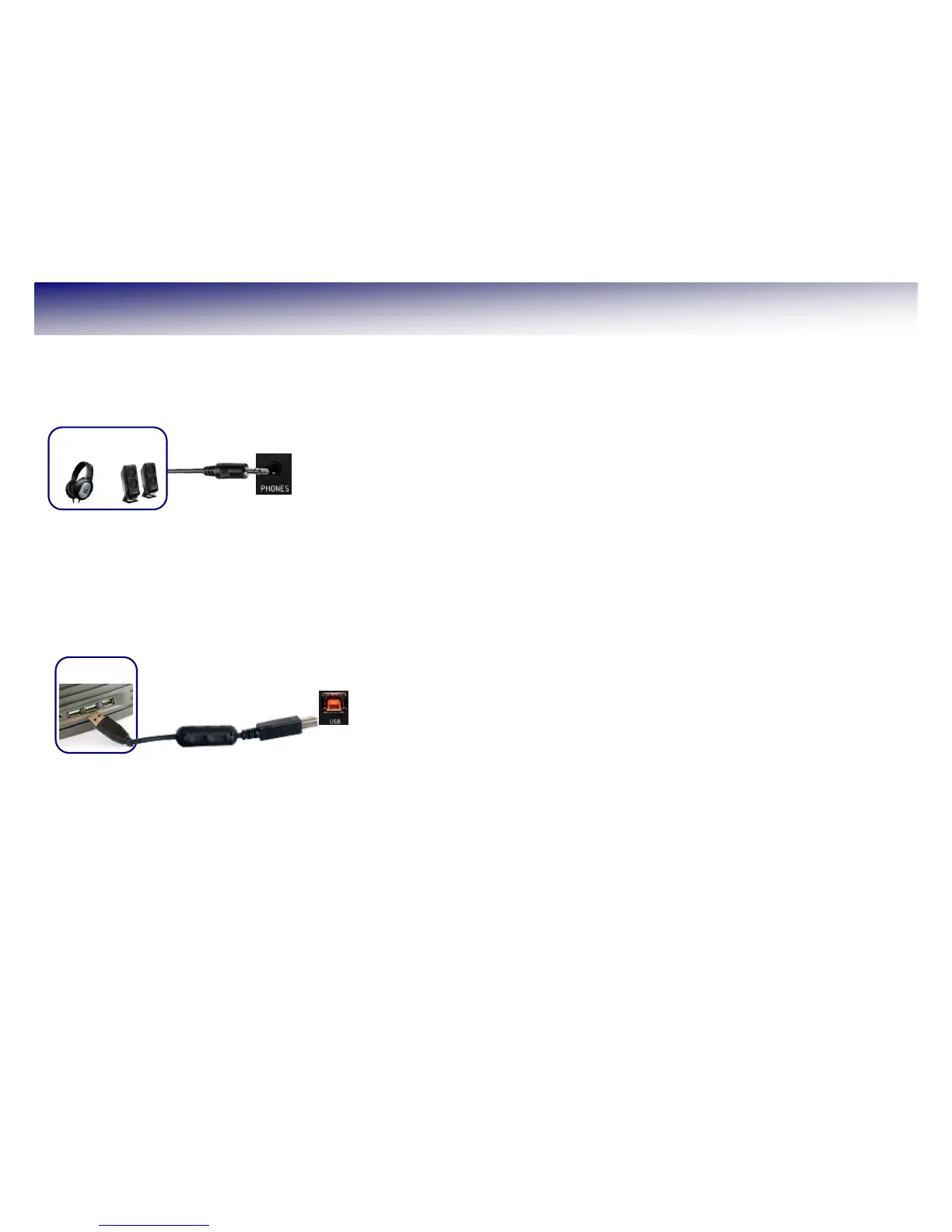

F: Phones
Connect either stereo headphones or powered
steres speakers, e.g. a pair of computer
speakers, to the jack marked Phones using a
1/8” stereo (TRS) plug.
G: USB
Locate the USB cable that came with your
transceiver. Connect the end with the ferrite
core to the jack marked USB. Connect the
other end to the USB 1.1 jack on your
computer. The plugs should insert easily with
no extra force.
Proceed to Step 2: Install PowerSDR on
the next page.
1/8” Stereo
Audio Plug
Amplified
Speakers
Headphones
USB Cable
(Included)
Computer
USB Port
