Document Number:
MAN FD104CV
Rev:
E
Revision Date:
01/27/2011
Page 10 of 16
Power/Video

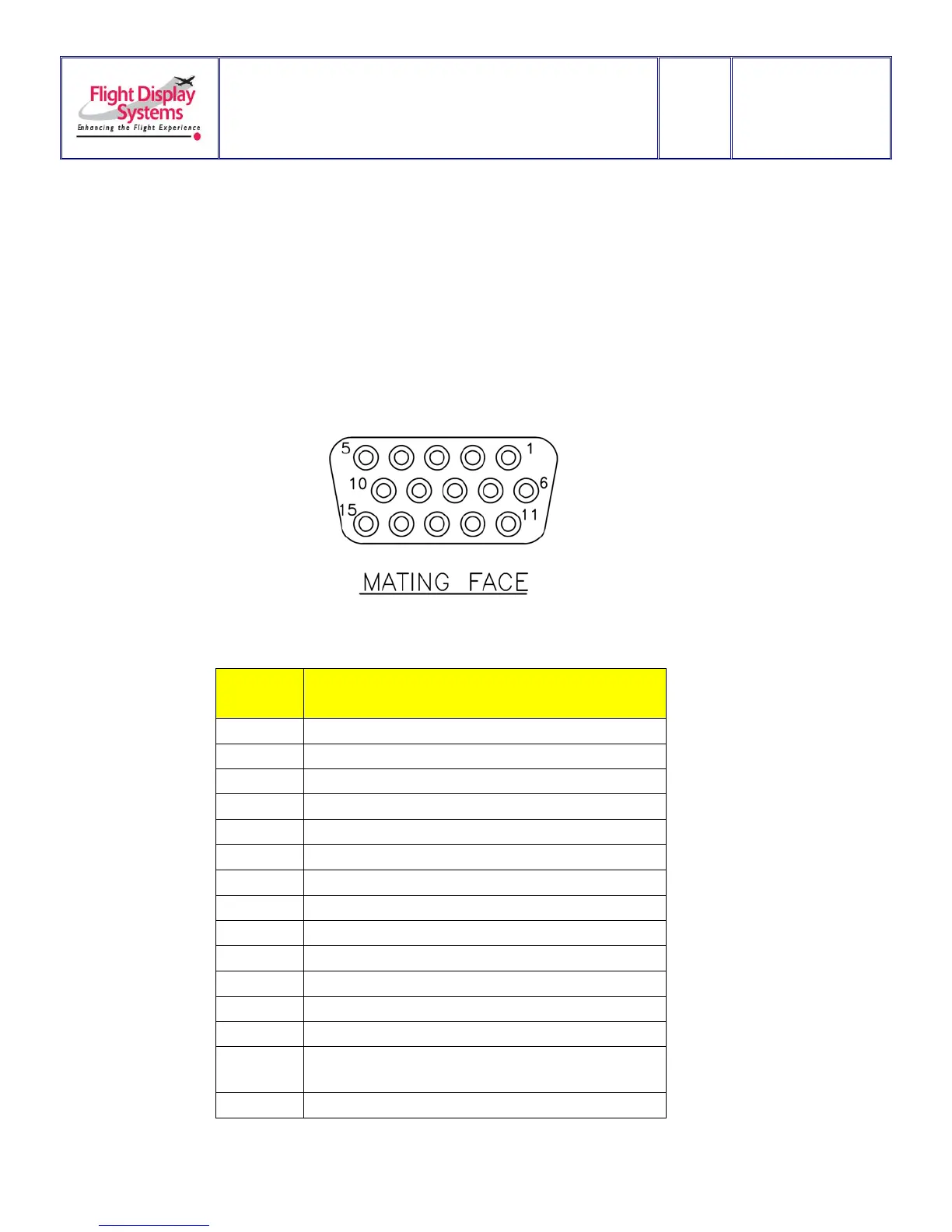

Pin out for P1 (High Density DB-15 Receptacle)
(Connector supplied with contacts and hood)
Connector P/N: M24308/2-286 or Equivalent
Crimp Contacts P/N: M39029/57-354 or Equivalent
Pin
Number
Description
1
28VDC Power
2
28VDC Ground
3
Composite Video - Signal
4
Composite Video - Shield
5
S-Video Y – Signal
6
S-Video Y – Shield
7
S-Video C – Signal
8
S-Video C – Shield
9
Red Video (Pin 1 on Standard VGA)
10
Green Video (Pin 2 on Standard VGA)
11
Blue Video (Pin 3 on Standard VGA)
12
Red Ground (Pin 6 on Standard VGA)
13
Green Ground (Pin 7 on Standard VGA)
14
Horizontal Sync (Pin 13 on Standard
VGA)
15
Vertical Sync (Pin 14 on Standard VGA)
