VGA Wiring

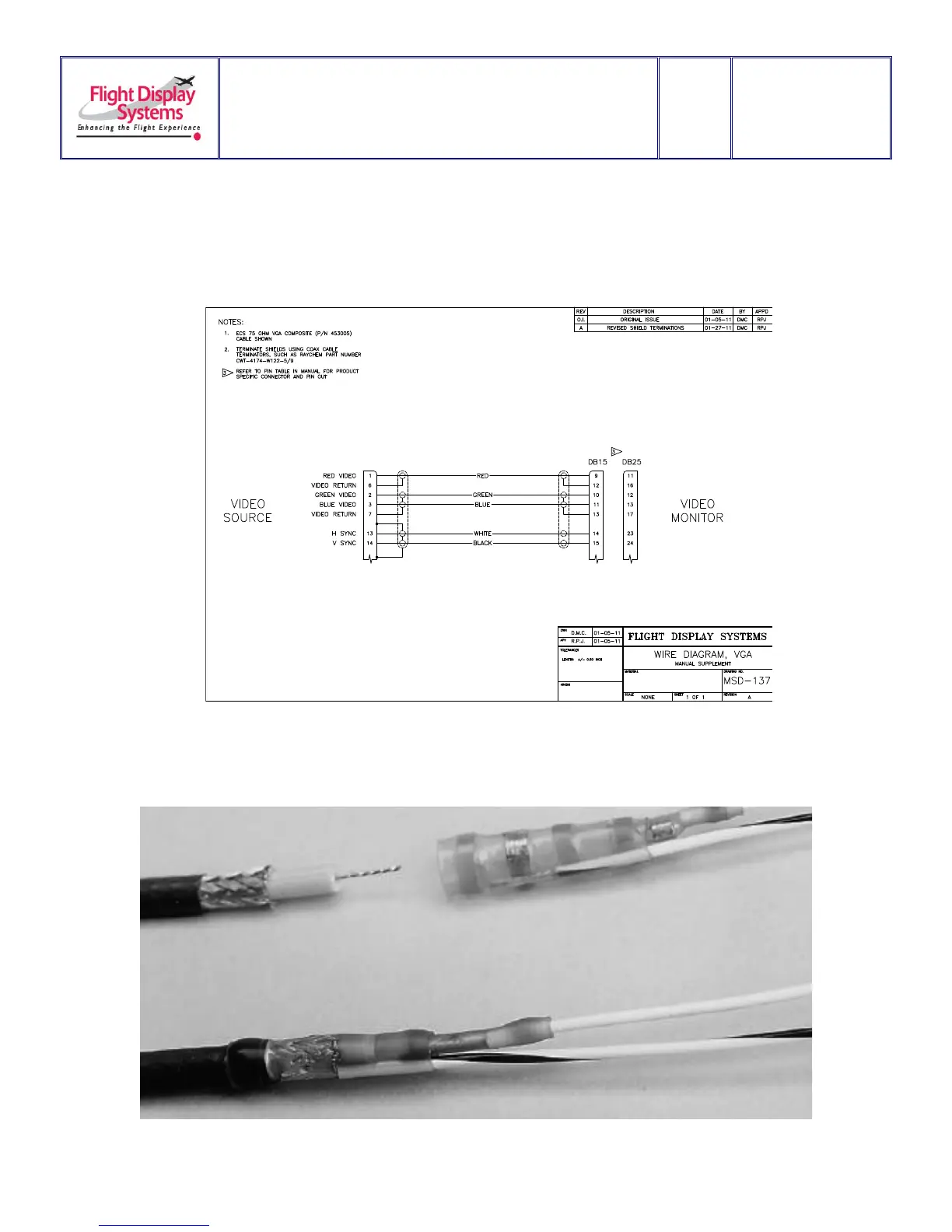

Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded cable

containing 5 separate coaxial cables, color-coded to match the functions of the wires.

We recommend coax cables be terminated using solder sleeve coaxial cable terminators

such as Raychem Part Number CWT-4174-W122-5/9.
