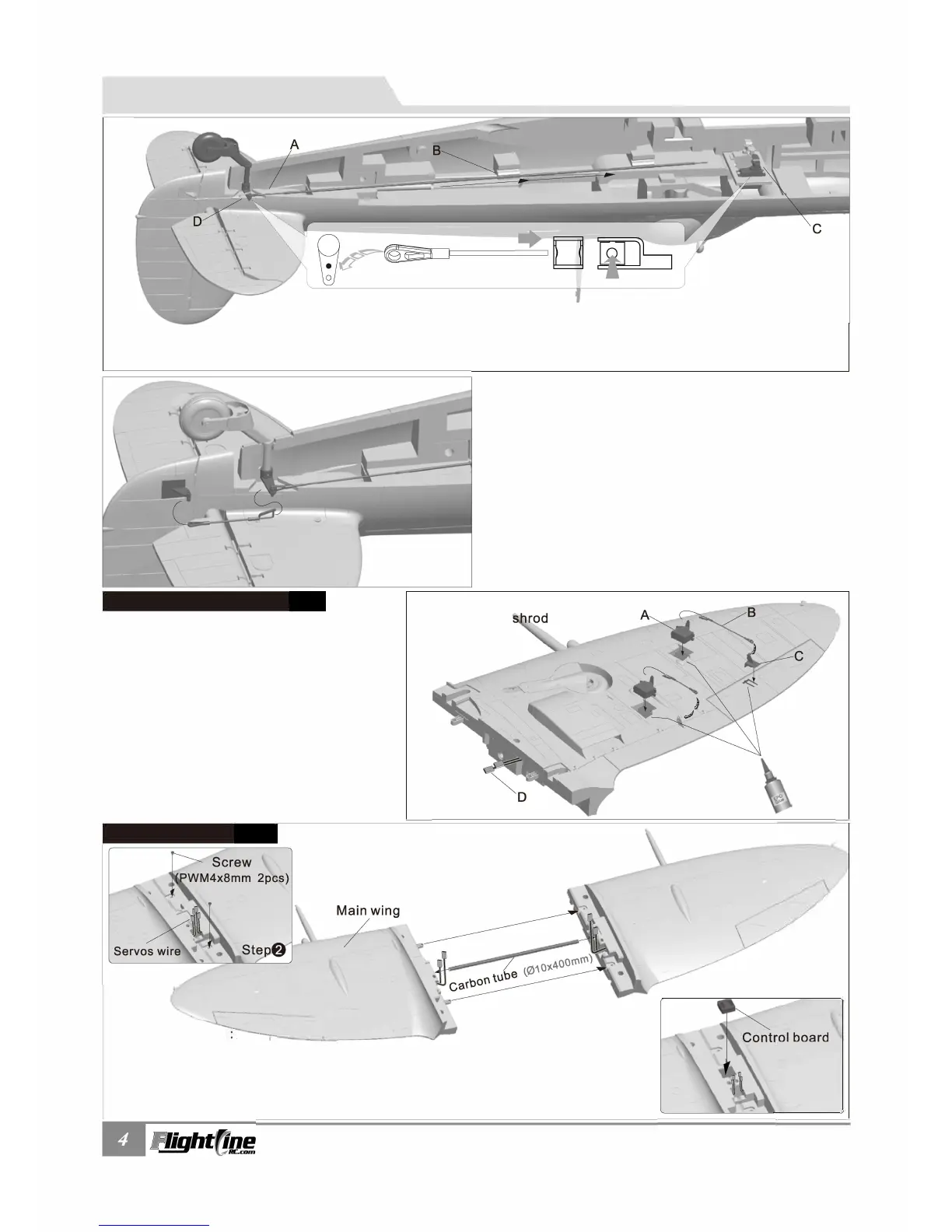

Note:
W
hen installing the rudder pushrod, make sure the tail wheel is
centered. Then install the rudder pushrod, and adjust the plastic clevis to
center the rudder.
1. Use rudder pushrod to connect the tail gear steering
arm and rudder horn.
Aileron push rod Installation
1. Use servo tester or radio to center the servo.
2.Use glue to attach the servo and aileron horn to
the main wing.
3.Run the servo cable through the trough, after all
the servos are installed, apply the decal over the
trough.
4.0ne side push rod insert to the servo
arm, adjust its length. And insert the Ball-head to
the aileron horn.
5
.Repeat these steps for the other main wing.
Main wing Installation
\
1.
lnsert the carbon tube into the main wing, and slide the left and right main wings
together. Glue is not required.
2.
Use the 2machine screws to join the main wing.
3.
Match the text on the label with the text on the control board, and attach it as
shown in the photo.
Step
PITFIRE MK.IXc
lten No.: FLW303
