FLIR A3 series User Manual

Pin configurations
15
15.1 Pin configuration for I/O connector
Pin Configuration
1 IN 1
2 IN 2
3
OUT 1
4
OUT 2
5
I/O +
6
I/O –
NOTE
Cables for digital I/O ports should be 100 m (328′) maximum.

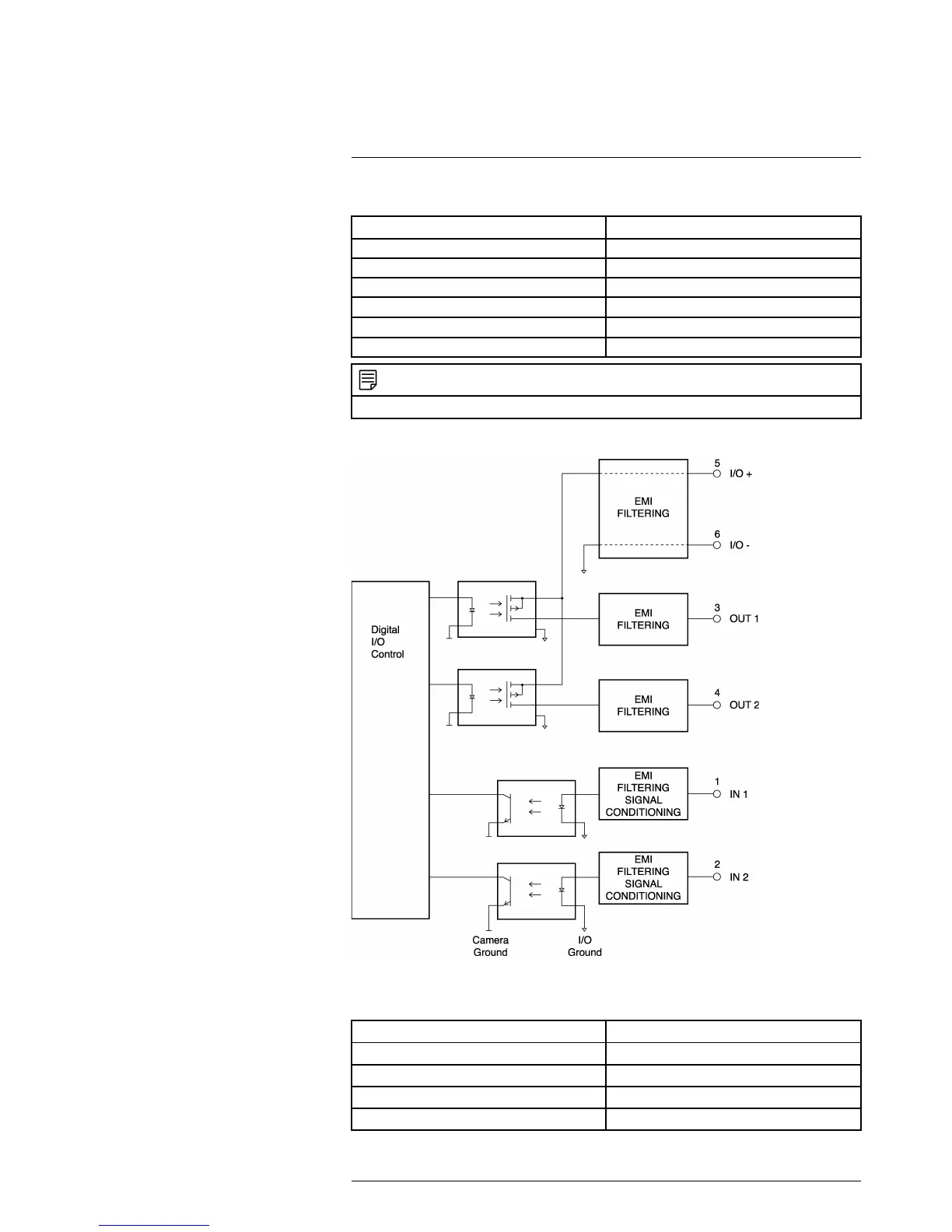

15.2 Schematic overview of the digital I/O ports
15.3 LED indicators
The LEDs indicate the following:
Type of signal Explanation
The LED glows continuously orange. The camera is starting up.
The LED glows continuously red.
An error has been detected. Contact service.
The LED glows continuously green. The camera has started.
The LED flashes 10 times per second. An error has been detected. Contact service.
#T559498; r.22370/22370; en-US
71
