FLIR C5 Series User Manual

2,47in
62,7mm
0,49in
12,5mm
1,36in
34,62mm
1,81in
45,95mm
1,67in
42,47mm
Visual Camera
IR Camera
0,15in
3,85mm
2,13in
54mm
0,9in
22,89mm
1,03in
26,18mm
0,61in
15,55mm
0,93in
23,52mm
UNC 1/4" - 20
USB-C
3,26in
82,89mm
5,45in
138,38mm
Mass: 185g +/- 10g
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
1(1)
T130872

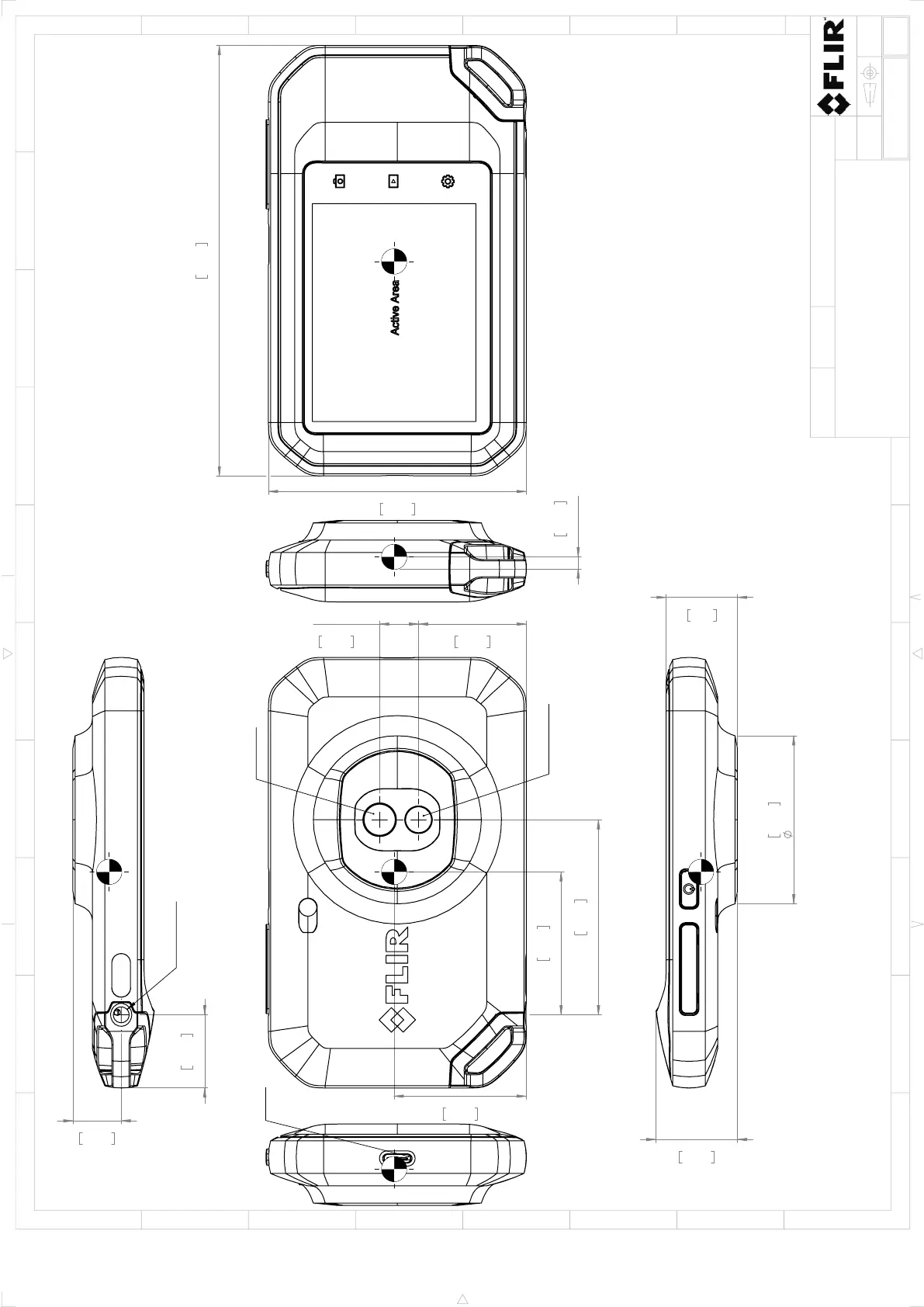

Basic dimensions FLIR Cx
JOHE
2020-01-20
R&D Instruments
Modified
1 2 3 4 5 6 7 8 9 10
A B
C D
E
F
G
H
1 32 54
C
F
B
D
G
E A
6
Rev
A
1:1
Scale
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.

FLIR C5 Series Specifications

General

Brand	FLIR
Model	C5 Series
Category	Thermal cameras
Language	English
