User interface
5

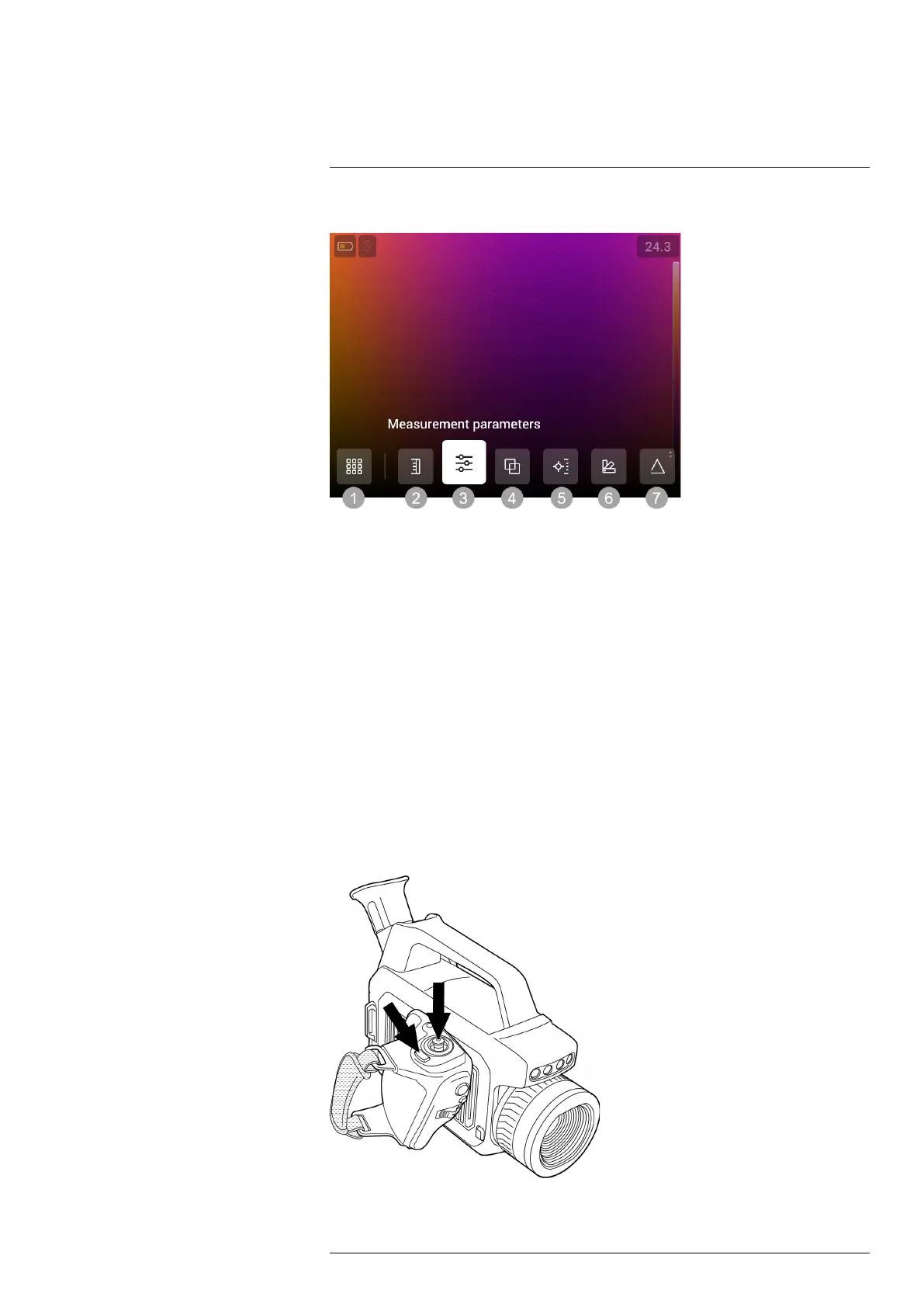

5.3 Main toolbar
1. Mode selection
2. Temperature scale
3. Measurement parameters
4. Image mode
5. Measurement
6. Color
7. Delta T
5.3.1 Navigation
To navigate the user interface, you can use the touch screen and/or the joystick and Back
button.
• To display the main toolbar, do one of the following:
◦ Tap the menu button at the bottom of the screen.
◦ Push the joystick.
• To navigate the toolbars, menus, and dialog boxes, and to change values in dialog
boxes, move the joystick up/down or left/right.
• To confirm changes and settings in menus and dialog boxes, push the joystick.
• To leave dialog boxes and to go back in the menu system, push the Back button.
Figure 5.3 Back button and joystick.
#T810605; r. AD/92464/92464; en-US
12
