2.2.1 R1, R2, R3, R3D, R5 and R5D Radar Assembly
The R1, R2, R3, R3D, R5 and R5D Radar Assemblies consist of the radar antenna and RF components, a
mechanical scanning sub-assembly, and a processor sub-assembly.

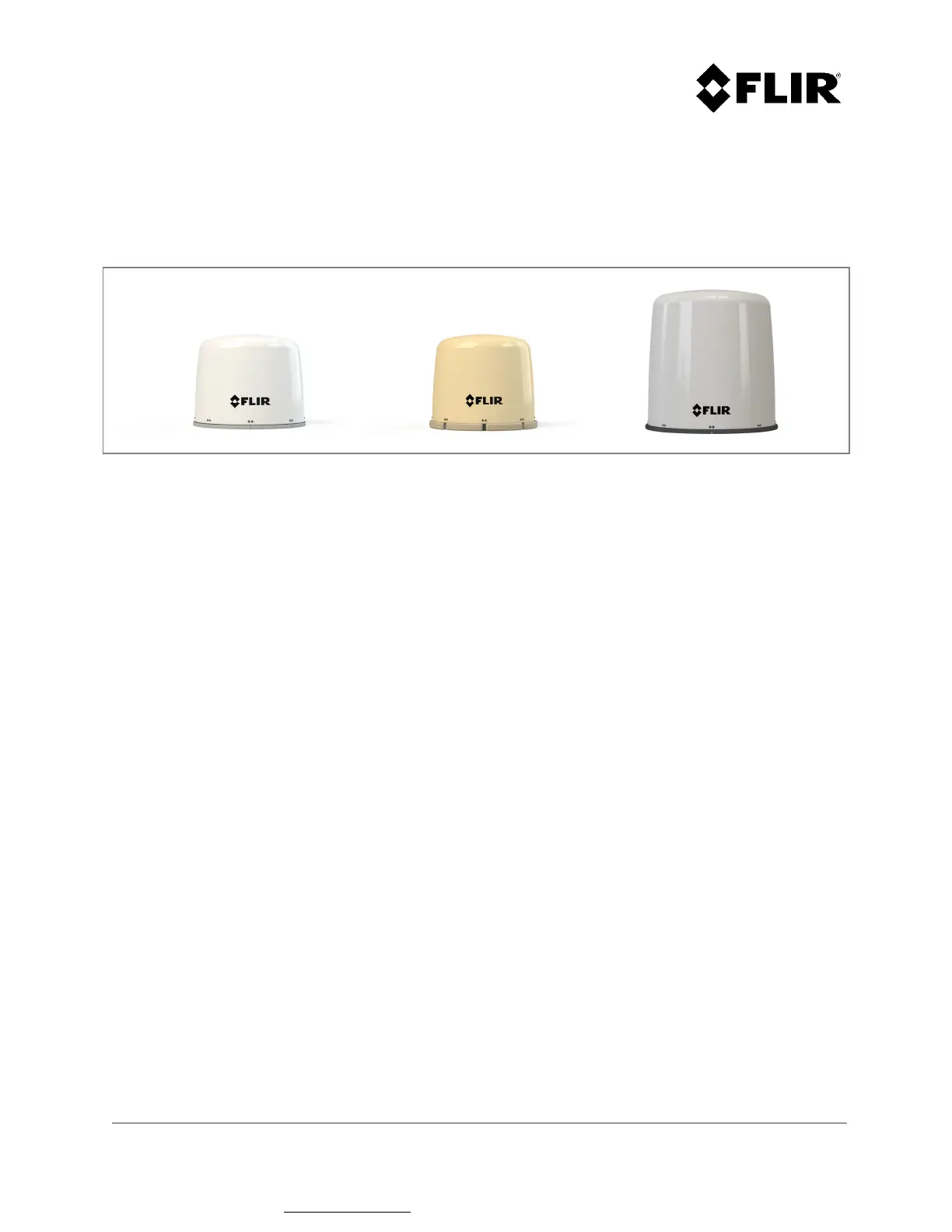

Figure 2 – Left: R1, R2, R3 Center: R3D Right: R5, R5D
2.2.2 Radar Server Computer
The Radar Server computer hosts the following applications:
• Radar Application Manager
• Radar Server Application
• Radar Terminal Application
• Radar Console Application (configuration and diagnostics only)
• Control Station Interface
Depending on the installation, the Radar Server computer may also host the client applications and
function as the Client Computer.
2.2.3 Client Computer
The Client computer hosts the client applications (Cameleon Tactical, Control Station, XML third-party
application). You can also use the Radar Console for remote diagnostics.
2.2.4 Breakout Box
In some installations a breakout box may be installed in close proximity of the radar to incorporate the
radar power supply and/or an Ethernet fiber-optic media converter.
