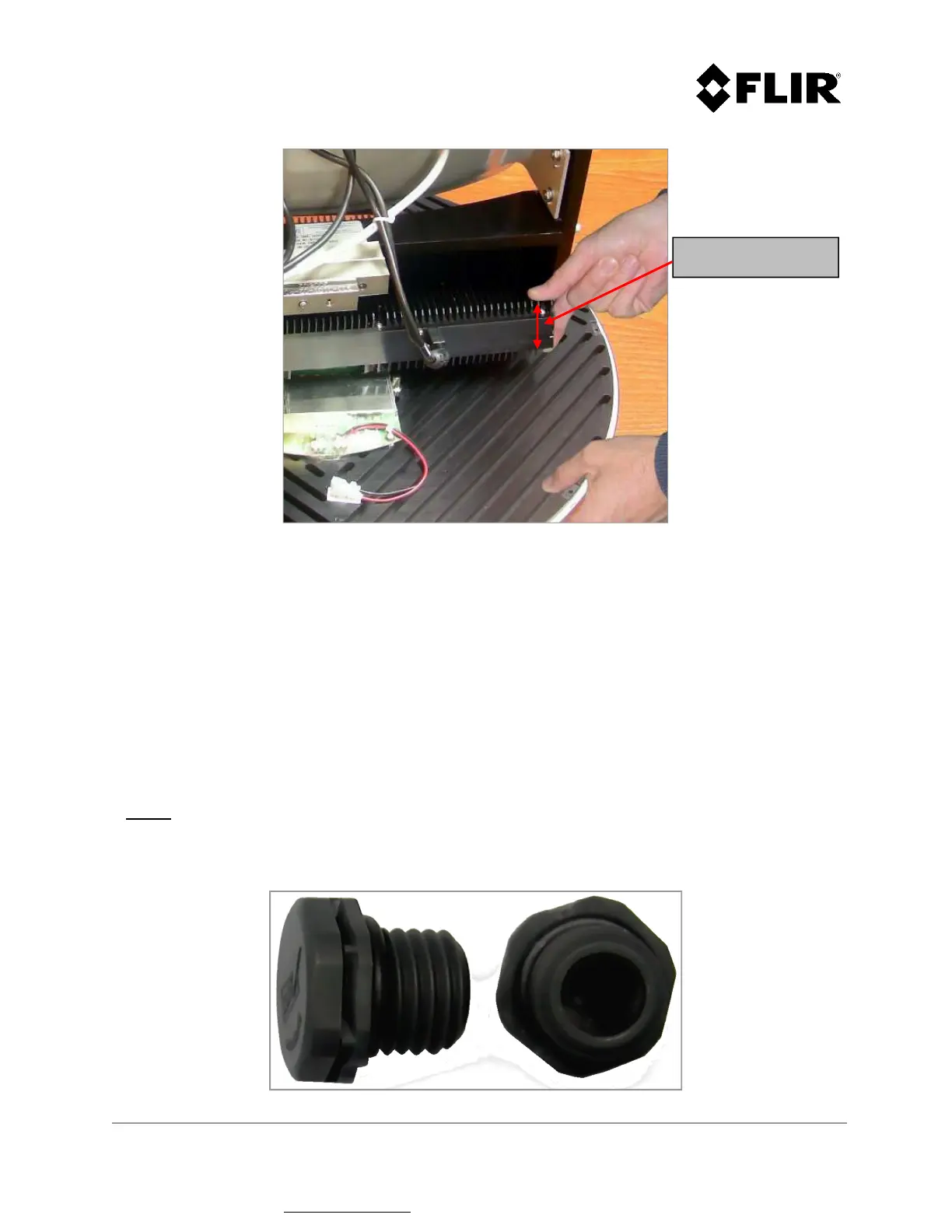

Figure 31 - Verify for loose payload (R5, R5D shown)
7.8 REPLACING THE MEMBRANE GORE VENT
The Gore Membrane Vents are screwed in under the base plate assembly.
The R1, R2, R3, R3D, R5 and R5D have Gore Membrane Vents to even the pressure as well as to
prevent insects and water from entering the radar. The instructions below are given for the
replacement of the Gore Membrane Vents. Contact FLIR Radars Customer Support for help in ordering
new ones.
NOTE: The estimated time to complete this procedure is from 2 minutes to 15 minutes. There is no
need to remove the radome.
Figure 32 - Gore Membrane Vents
Movement < 1mm
