Advanced Thermal Solutions SC2500 User Manual
DCO65U-E SC2500 User Manual Page 37

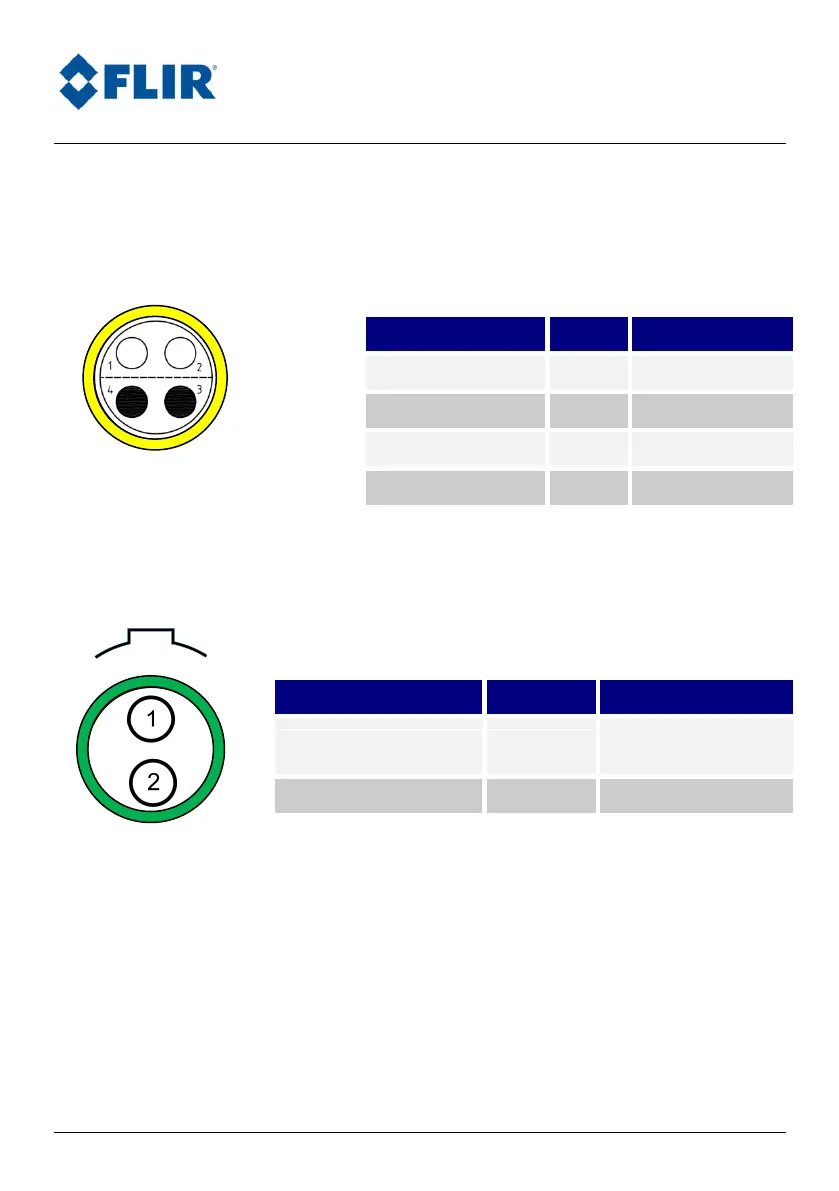

10.4.3. Trigger connector
Connector reference: LEMO ECP0S304CLN
Mating part: LEMO FFA0S304CLAC42Z
10.4.4. Lockin connector
Connector reference: LEMO ECG0B302CLN
Mating part: LEMO FGG0B302CLAD52Z
Signal
Pin#
characteristic
Trigger OUT
1
LVTTL – 3.3V
GND
2
Trigger IN
3
LVTTL – 3.3V
GND
4
Signal
Pin#
characteristic
Lockin
1
0/+10V AC only
(1Hz 5 kHz)
GND
2
