SECTION 3. OPERATING THE SYSTEM
Power
Task Light
Mini-USB/Charging/Analog
video out
(320 & 640 models only)
Display Brightness
Task Light On/Off
Palette Selection
Zoom (320 & 640 models)
Charging
Indicator
Eyepiece
Adjustable Diopter

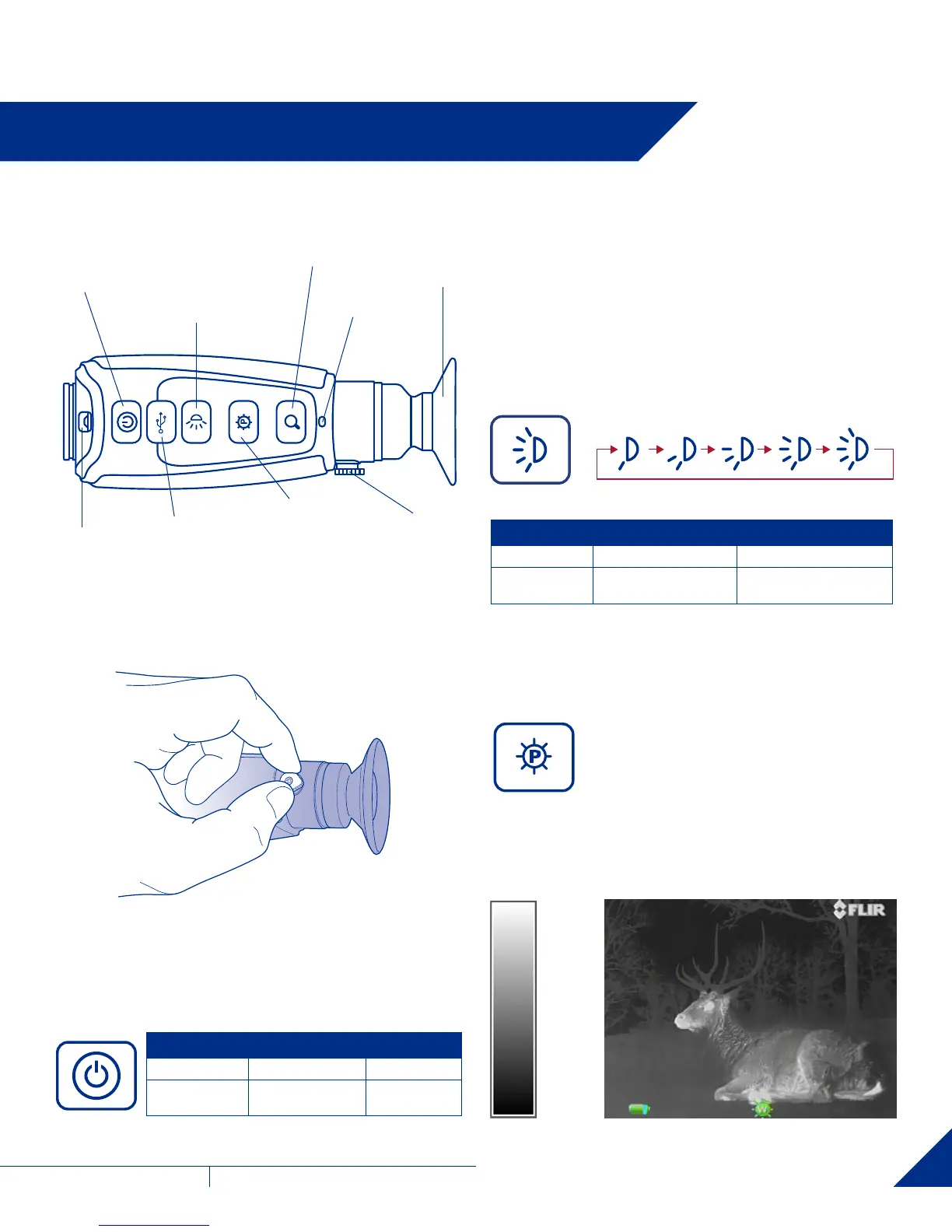

3.1 SYSTEM CONTROLS AND BUTTONS
3.1.1 DIOPTER ADJUSTMENT
While looking through the eyepiece, adjust the position of the diopter
lever to optimize the sharpness of the image in the viewnder.
3.1.2 POWER BUTTON
The Power Button performs the following functions:
3.1.3 DISPLAY BRIGHTNESS BUTTON
Use this button to cycle through the ve levels of display brightness.
Each press of the button advances to the next level of brightness.
When the highest brightness level is reached, subsequent button
presses advance to the next lower brightness levels. When the lowest
brightness level is reached, subsequent button presses advance to the
next higher brightness level. One of the following icons is displayed
for approximately 3 seconds after the button is pressed indicating the
current brightness level:
3.1.3 COLOR PALETTES
Use this button to toggle between the available color palettes. Please
see the following images for examples of SCOUT III’s color palettes.
SYSTEM STATE SHORT PRESS LONG PRESS
System OFF Turns Power ON N/A
System ON Access User Menu Turns Power
OFF
SYSTEM STATE SHORT PRESS LONG PRESS
System OFF Flashes LED Task light Turn on LED Task Light
Systemt ON
Changes Current
Display Brightness
N/A
Dim Bright
WHITE HOT
Most commonly used palette. Hot objects appear white. Good for
scenes with either high or low contrast.
