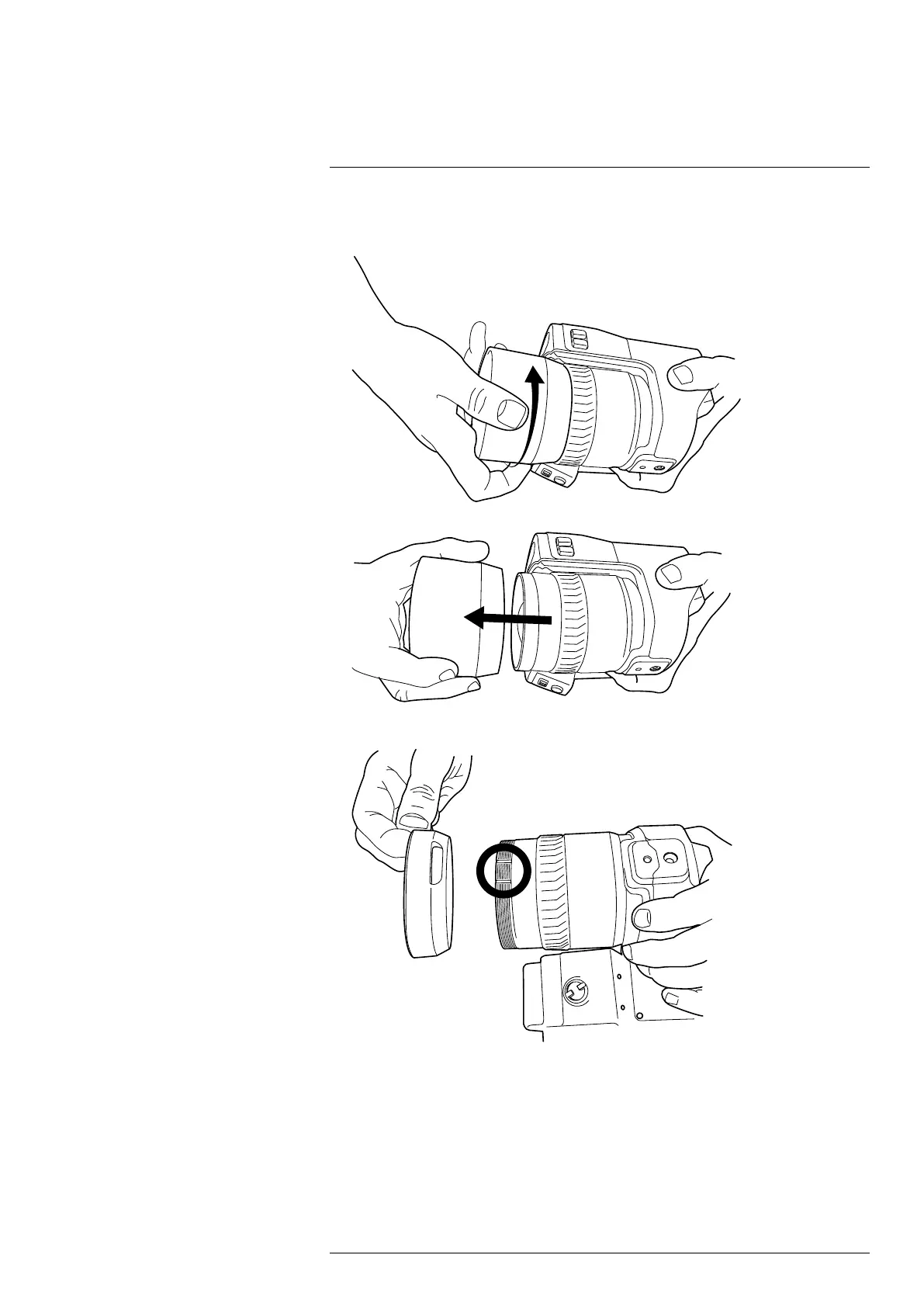

Handling
the
camera
13
Follow
this
procedure:
1.
T
urn
the
close-up
lens
counter-clockwise
until
it
separates
from
the
infrared
lens.
2.
Carefully
pull
out
the
close-up
lens
from
the
infrared
lens.
3.
Note
the
grooves
on
the
infrared
lens
and
their
counterparts
on
the
inside
of
the
rub-
ber
protection.
#T559954;
r
.
AP/42311/42335;
en-US
41
54
56
