Working with image modes
16
16.1 General
The camera captures both thermal and visual images at the same time. By your choice
of image mode, you select which type of image to display on the screen.
The camera supports the following image modes:
• Thermal MSX (Multi Spectral Dynamic Imaging): The camera displays infrared images
where the edges of the objects are enhanced with visual image details.
• Thermal: A full infrared image is displayed.
• Picture in picture: An infrared image frame is displayed on top of the visual image.
• Digital camera: The visual image captured by the digital camera is displayed.
Note
• These image modes only work correctly for calibrated lenses. The lens that ships with
the camera is factory calibrated. To have a new lens calibrated, you must send in the
camera and the lens to your local service department.
• All thermal and visual information is stored when an image is saved. This means that
you can edit the image later, in the image archive, in FLIR Tools/Tools+, or in FLIR Re-
searchIR Max, and select any of the image modes.

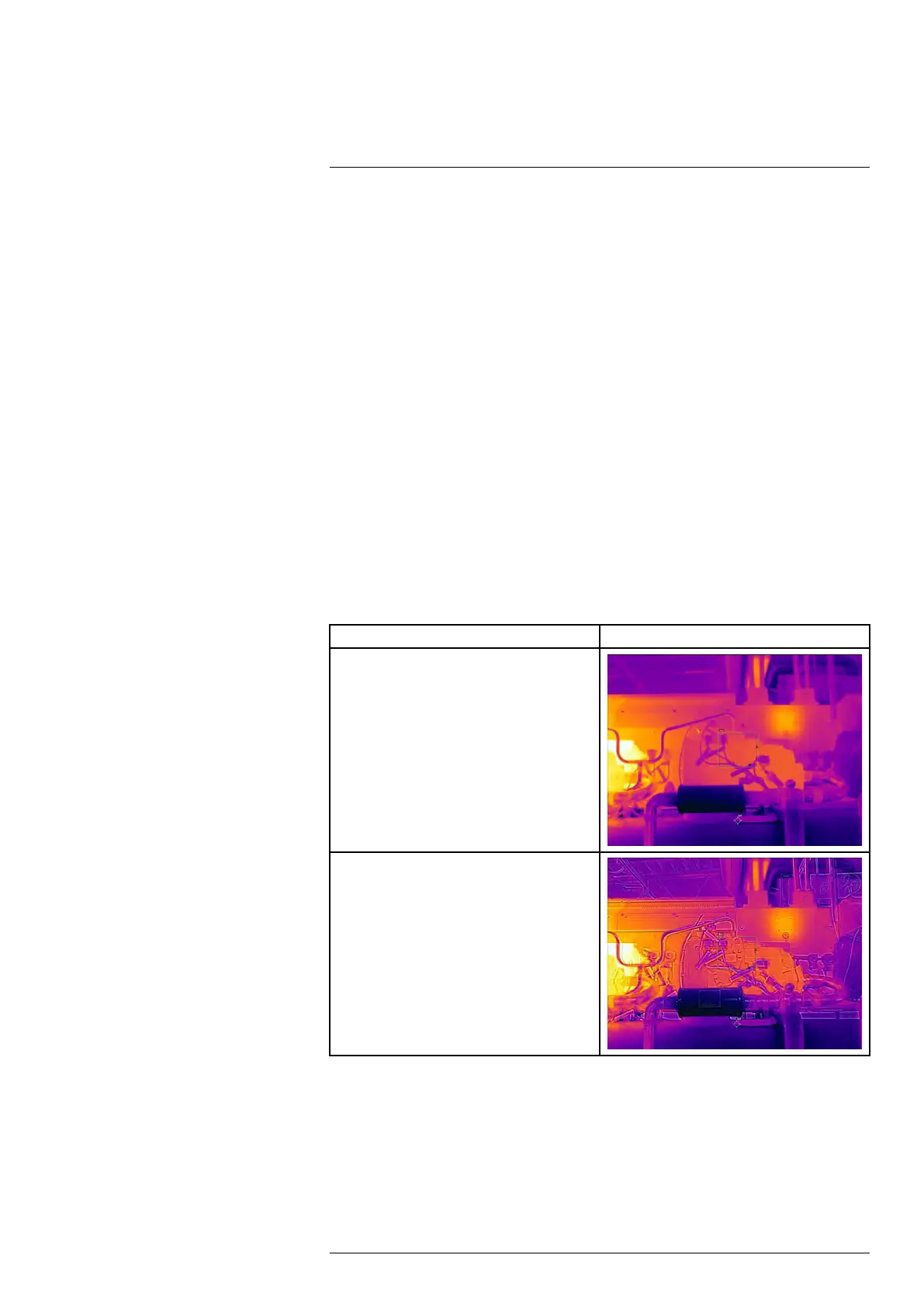

16.2 Image examples
This table explains the different types of image modes.
Image mode Image
Thermal
Thermal MSX
#T559954; r. AP/42311/42335; en-US
55
