FLIR TG165-X Quick Start

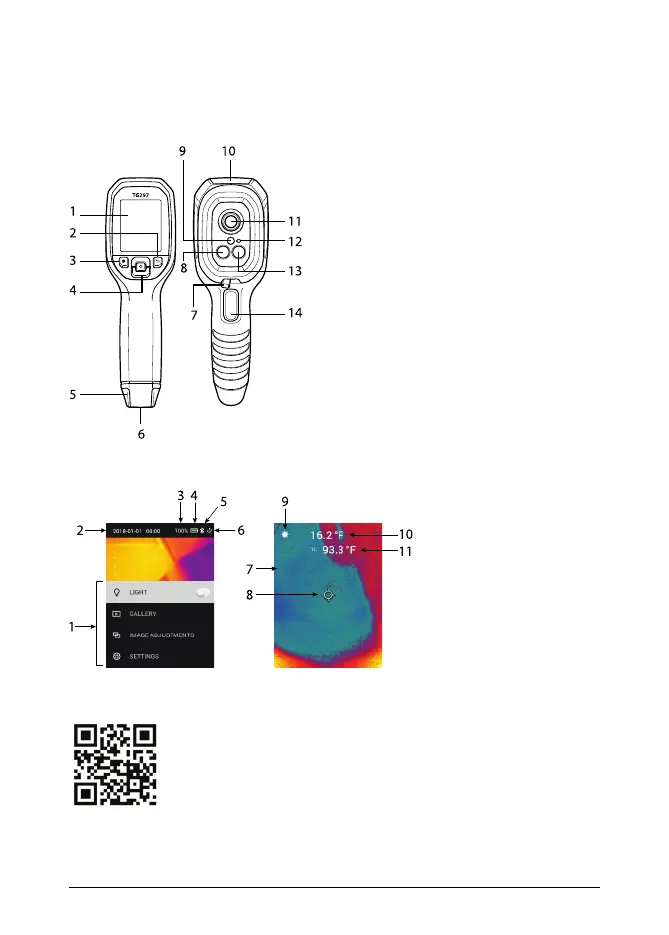

Illustrations
Note Explanations of the illustrations are provided in each lan-
guage section.
Figure 1 Camera parts
Figure 2 Display
Figure 3 QR Code for Registration
#NAS100021; r. AD/64725/64725; mul
1

FLIR TG165-X Specifications

General

Internal storage capacity	4 GB
Sensor type (thermal module)	-
Temperature measurement range	-25 - 300 °C
Image sensor size	2/3 \
Sensor resolution (thermal module)	80 x 60 pixels
Display type	LCD
Certification	CE/CB/EN61010/UL
Product color	Black
Built-in display	Yes
Display diagonal	2.4 \
Display resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 45 °C
Battery capacity	- mAh
Battery life (max)	5 h
Battery recharge time	6 h
Package depth	151 mm
Package width	284 mm
Package height	105 mm
Package weight	94 g

Weight and Dimensions

Depth	64 mm
Width	219 mm
Height	81 mm
Weight	40 g
