Floe PWC1300 - Step 1: Leveling Leg Installation; Prepare and Insert Leveling Legs

STEP 1

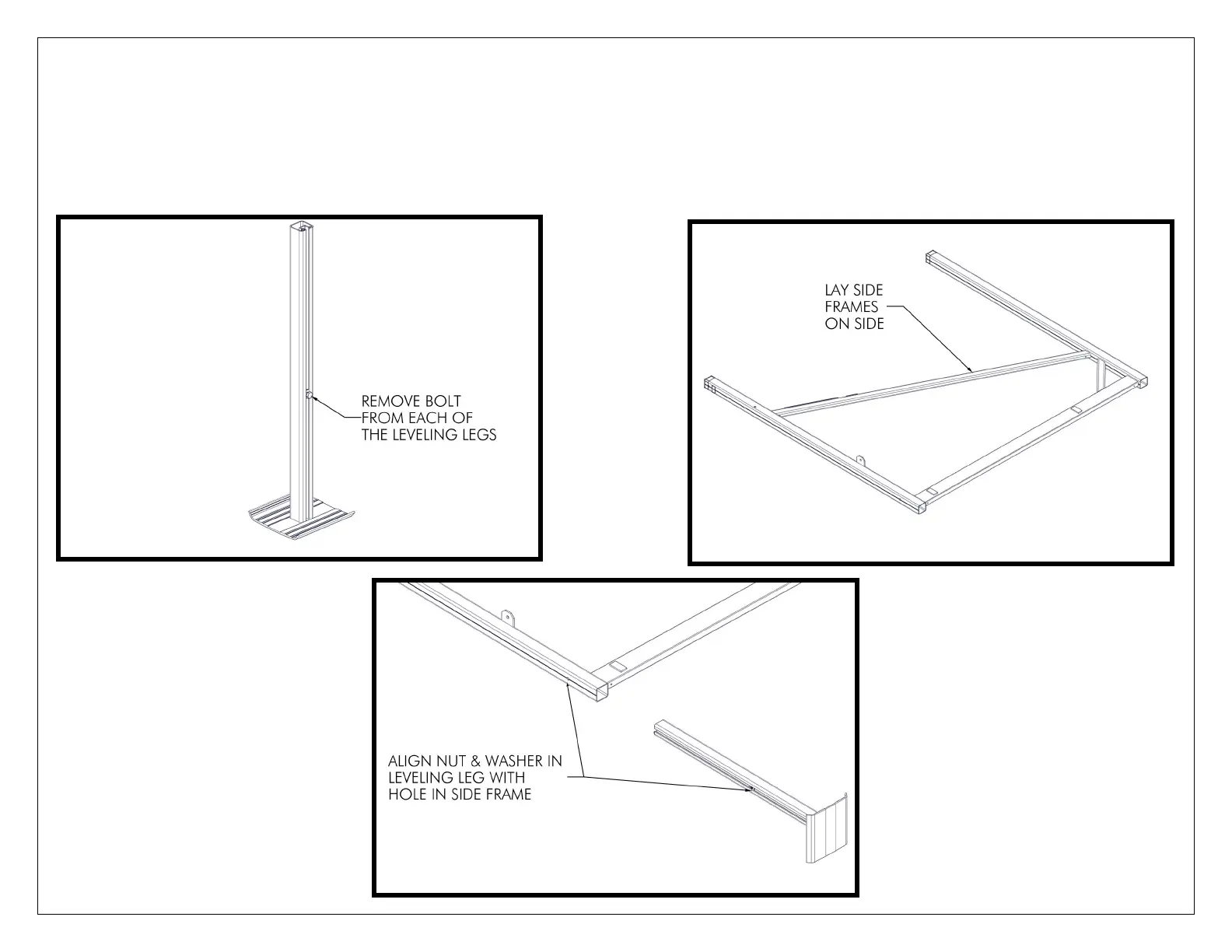

• REMOVE THE 3/8” X 3/4” BOLT FROM EACH OF THE LEVELING LEGS (FIGURE 1.1). LAY SIDE FRAMES ON
SIDE (FIGURE 1.2).
• INSERT LEVELING LEGS INTO CORNER POSTS WHILE MAKING SURE THAT THE NUT TRACK LINES UP WITH
THE LOWER HOLE IN THE CORNER POST (FIGURE 1.3).
FIGURE 1.1
4X
FIGURE 1.2
2X
FIGURE 1.3
4X
