Floe VSD 6000 - Page 10

10
512-65001-00 (VSD 6000-10000)
-ATTACH UPPER BRACKETS
ATTACH ALL UPPER BRACKETS TO CANOPY RAILS AS SHOWN BELOW. PLACE ½-13
NYLOCK NUTS ON EACH BOLT. DO NOT TIGHTEN.
DO NOT TIGHTEN.DO NOT TIGHTEN.
DO NOT TIGHTEN.
STEP 4
512-65000-00 (VSD 5000)

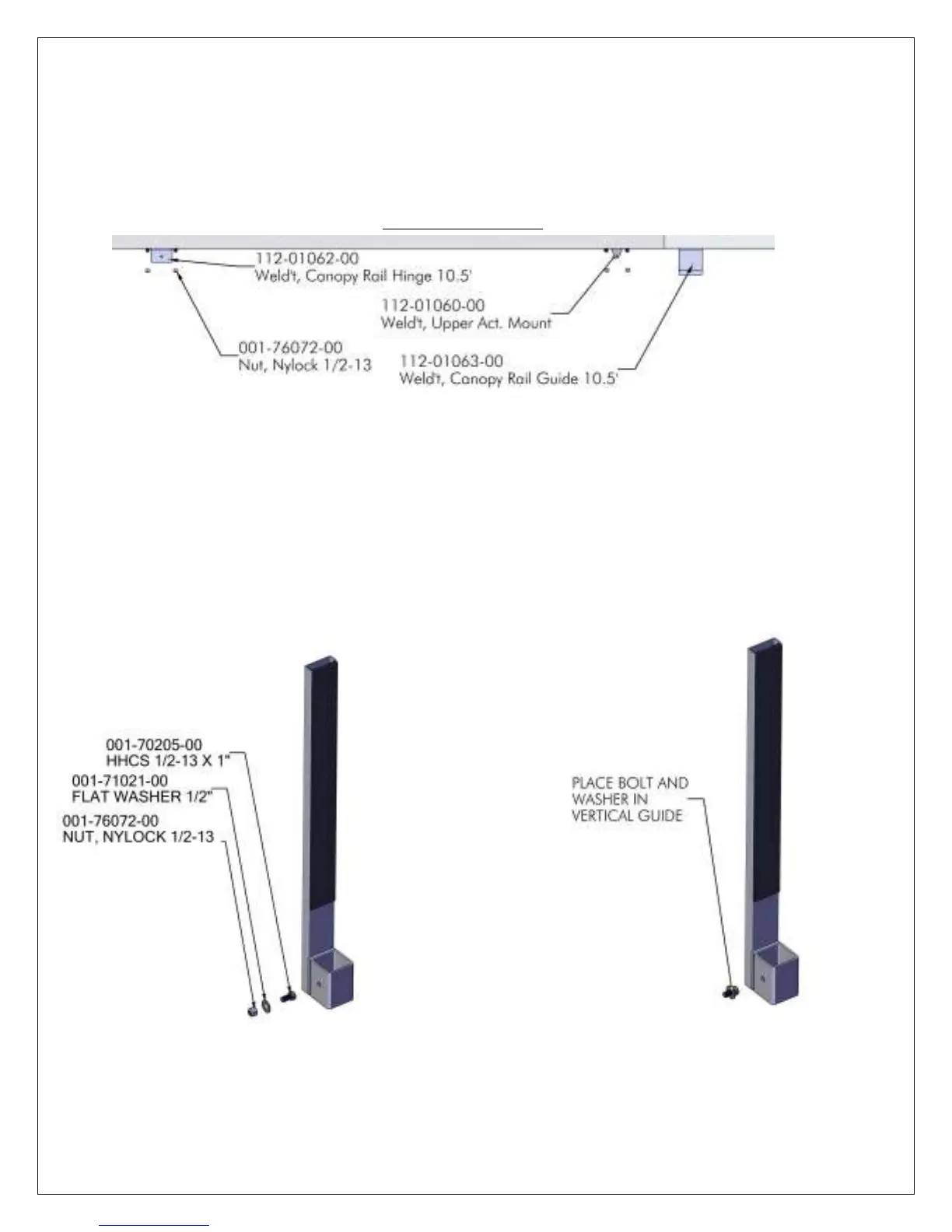

-ASSEMBLE CANOPY VERTICAL GUIDES (FIG. 1)
PLACE ½-13 x F1” BOLT AND WASHER IN VERTICAL GUIDE (FIG. 2)
SLIDE CANOPY VERTICAL GUIDES OVER REAR CANOPY LEGS (FIG. 3)
PLACE NUT ON BOLT OVER GUIDE. POSITION THE VERTICAL GUIDE 5 INCHES
5 INCHES5 INCHES
5 INCHES FROM
TOP OF CANOPY LEG (FIG. 4) TORQUE TO 60 FT/LBS.
TORQUE TO 60 FT/LBS.TORQUE TO 60 FT/LBS.
TORQUE TO 60 FT/LBS.
FIG. 2
FIG. 1
