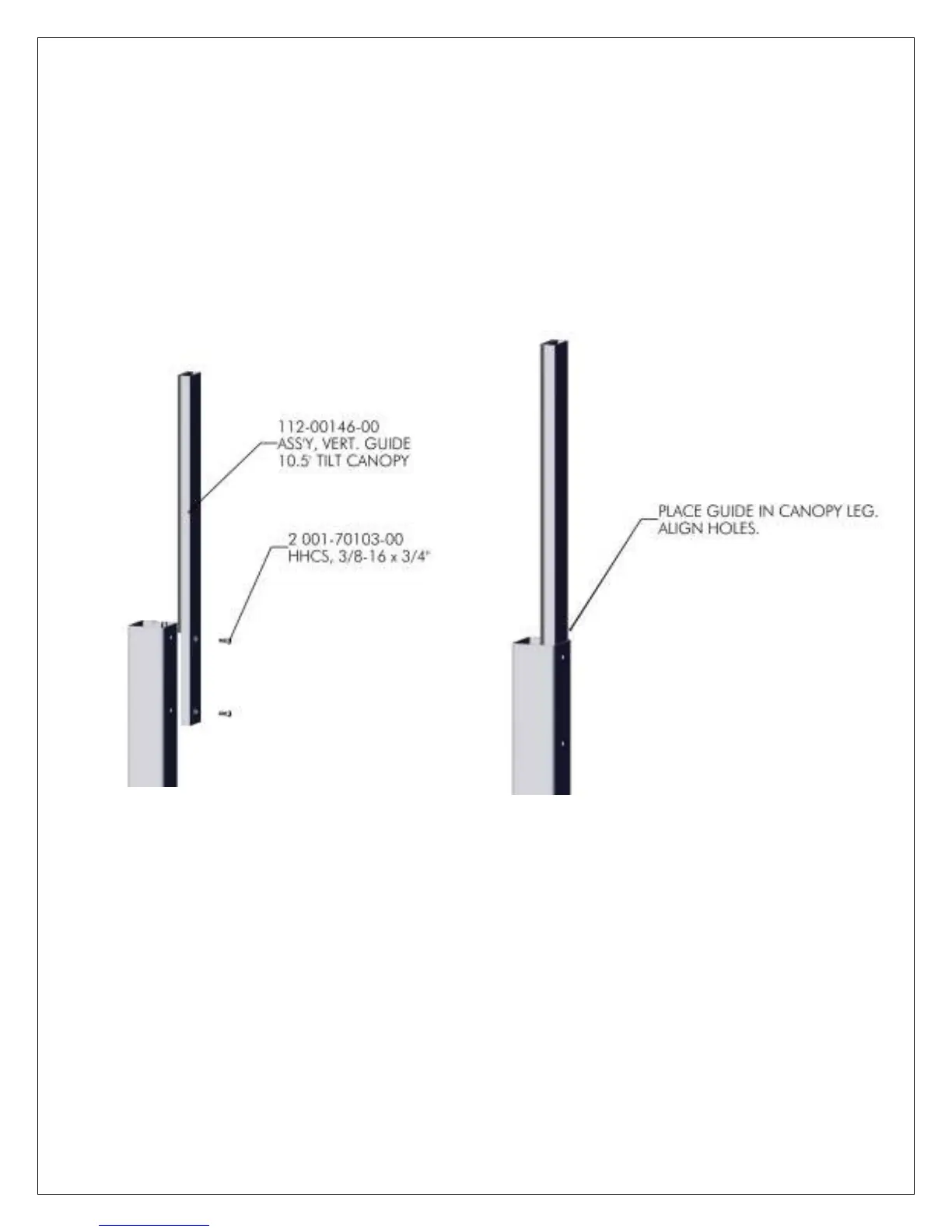

-ASSEMBLE CANOPY VERTICAL GUIDES (FIG. 1).
PLACE CANOPY VERTICAL GUIDES INTO REAR CANOPY LEGS AND ALIGN HOLES.
(FIG. 2).
PLACE 3/8-16 x 3/4” BOLTS INTO CANOPY LEG AND GUIDE-IN HOLES (FIG. 3).
TORQUE TO 1
TORQUE TO 1TORQUE TO 1
TORQUE TO 10 FT/LBS.
0 FT/LBS.0 FT/LBS.
0 FT/LBS. (FIG. 4).
FIG. 1 FIG. 2
