STEP 9 (VSD 5000 AND VSD 6000-10000)
-ATTACH CONTROL BOX
PLACE 1/2-13 X 1 1/4" CUSTOM BOLT INTO NUT TRACK ON SHORE SIDE OF PIVOTING
POST AT NEAREST AVALABLE LOCATION (FIG. 1).
PLACE CONTROL BOX BRACKET ON CUSTOM BOLT, AND PLACE NUT ON BOLT.
TORQUE TO 60 FT/LBS (FIG. 2). NOTE THAT THE BOX HANGS INSIDE THE LIFT.

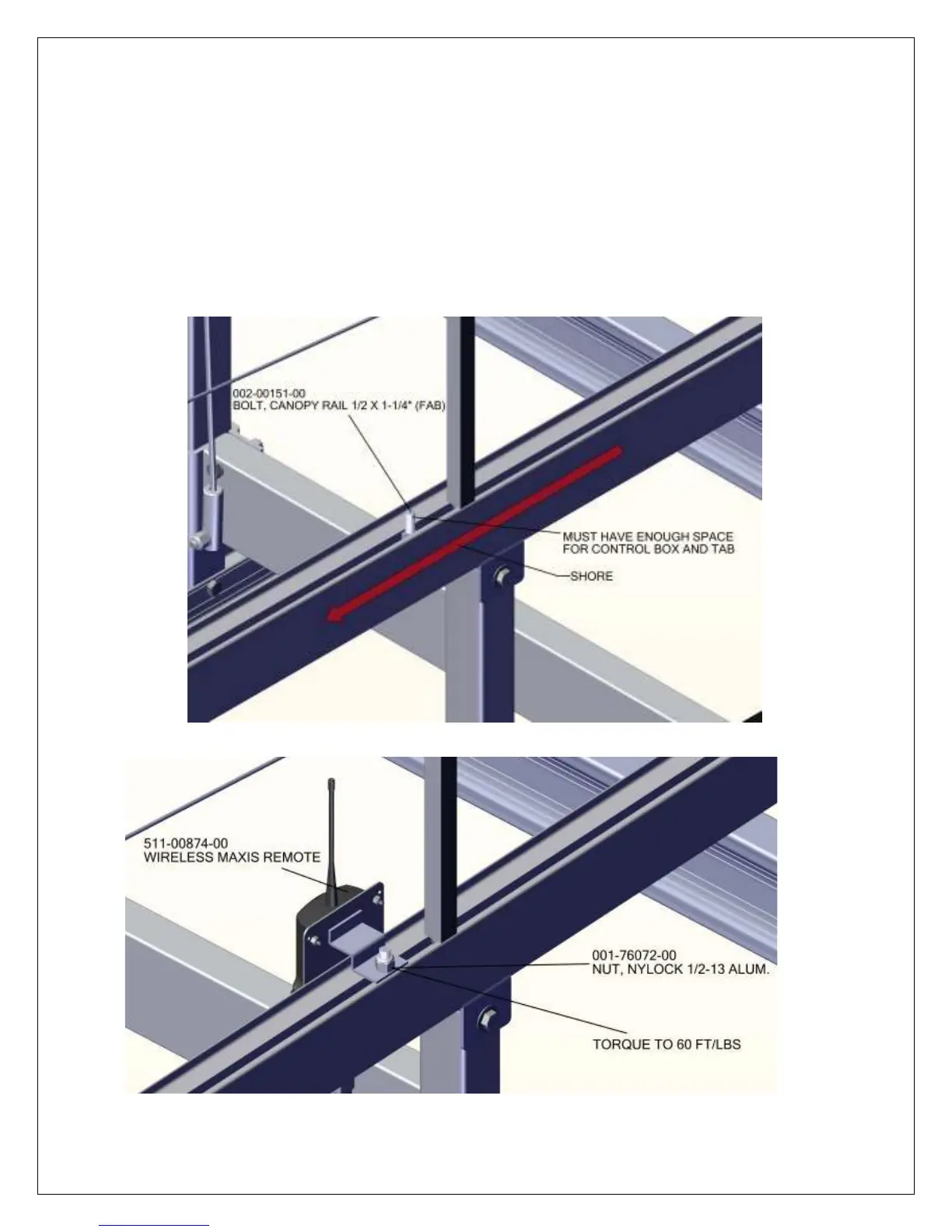

FIG. 1
FIG. 2
