22
STEP 2
-ATTACHING WIRING

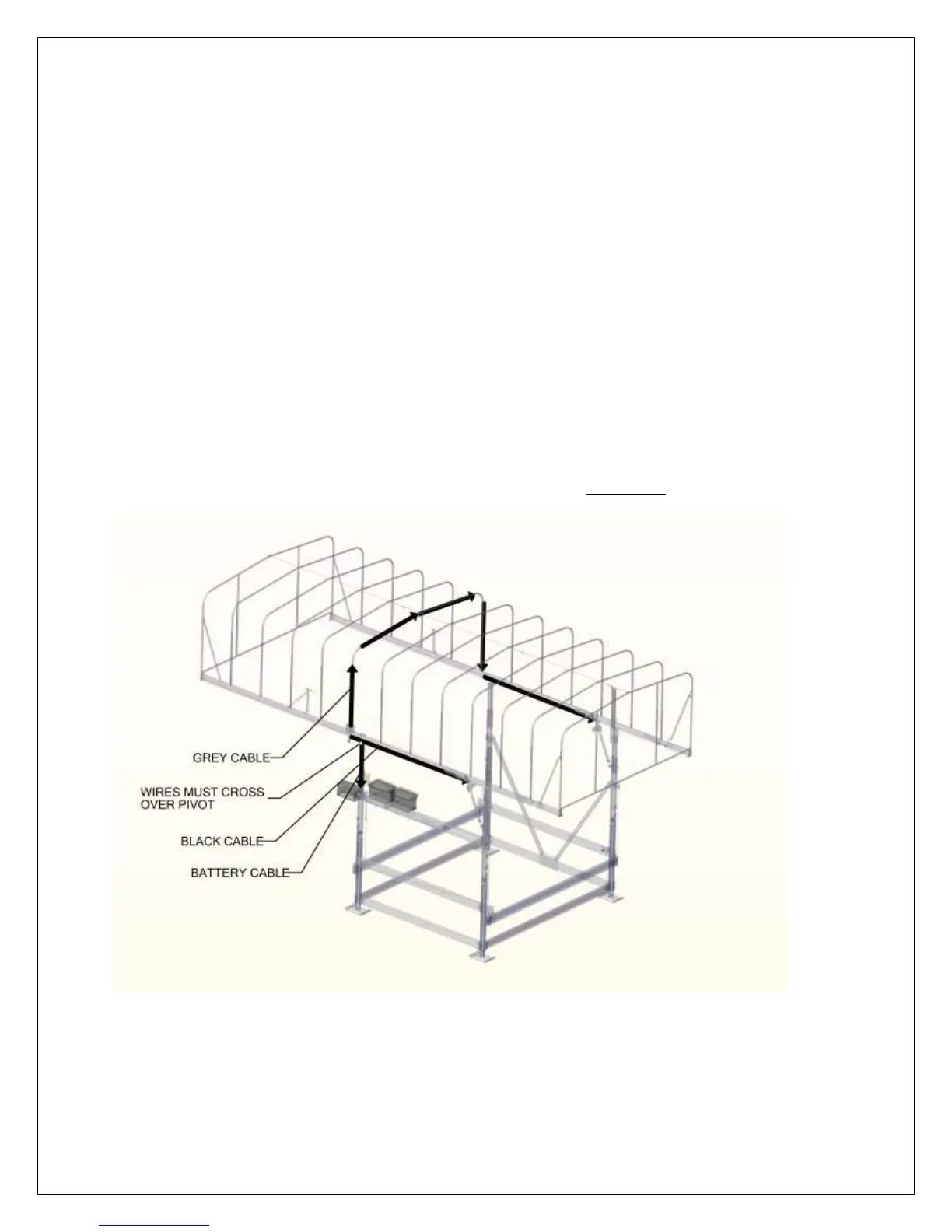

FOLLOW SHOWN WIRING TO PREVENT WIRE DAMAGE (FIG. 1). NOTE THAT WIRING
MUST GO OVER PIVOTING CANOPY CONNECTION.
THE CABLE WITH THE GREY END RUNS TO THE FAR ACTUATOR AND THE CABLE WITH
THE BLACK ENDS RUNS TO THE NEAR ACTUATOR.
ATTACH WIRE WITH VELCRO ALONG CANOPY HOOPS (FIG. 2-5).
EACH SIDE SHOULD HAVE ATTACH POINTS ON 4 HOOPS.
CANOPY HOOP CLOSEST TO CORNER POST WITH PIVOT SHOULD HAVE 12 ATTACH
POINTS.
WRAP EXCESS CORD NEAR ACTUATOR AND ALLOW FOR 2 INCHES
2 INCHES2 INCHES
2 INCHES OF SLACK (FIG. 6).
FIG. 1
