Floe VSD 6000 - Page 24

24

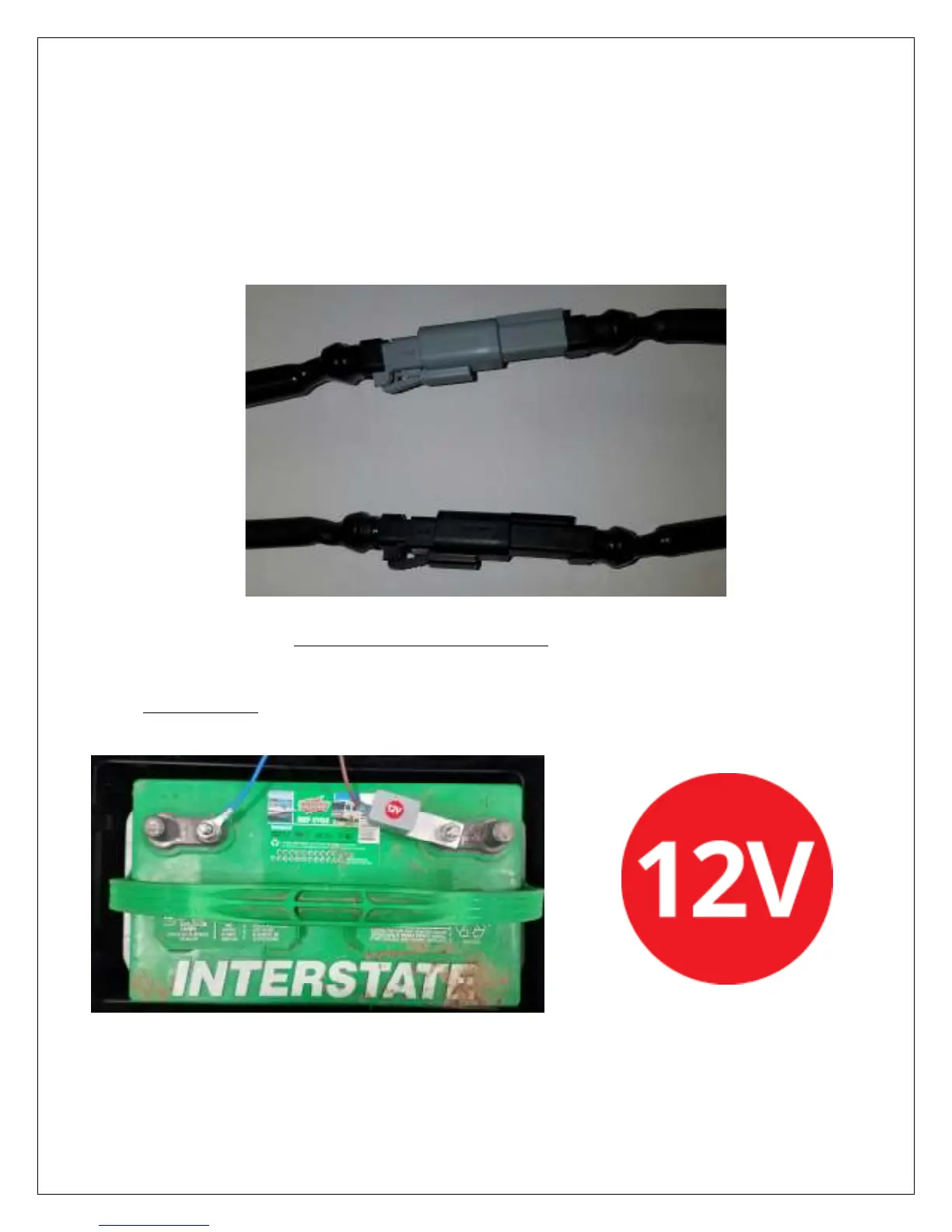

STEP 3
-CONNECTING ACTUATORS
CONNECT EACH ACTUATOR WITH RESPECTIVE CONNECTORS. WIRING IS
CONSTRUCTED SUCH THAT THERE IS ONLY ONE CORRECT CONFIGURATION.
STEP 4
-CONNECT BATTERY (
((
(12 VOLT CONNECTION
12 VOLT CONNECTION12 VOLT CONNECTION
12 VOLT CONNECTION ONLY
ONLYONLY
ONLY)
))
)
CONNECT THE LEAD WITH THE 10-AMP CIRCUIT BREAKER TO THE POSITVE TERMINAL
OF ONE BATTERY
ONE BATTERYONE BATTERY
ONE BATTERY. CONNECT THE OTHER LEAD TO THE NEGATIVE TERMINAL OF THE
SAME BATTERY.
