27

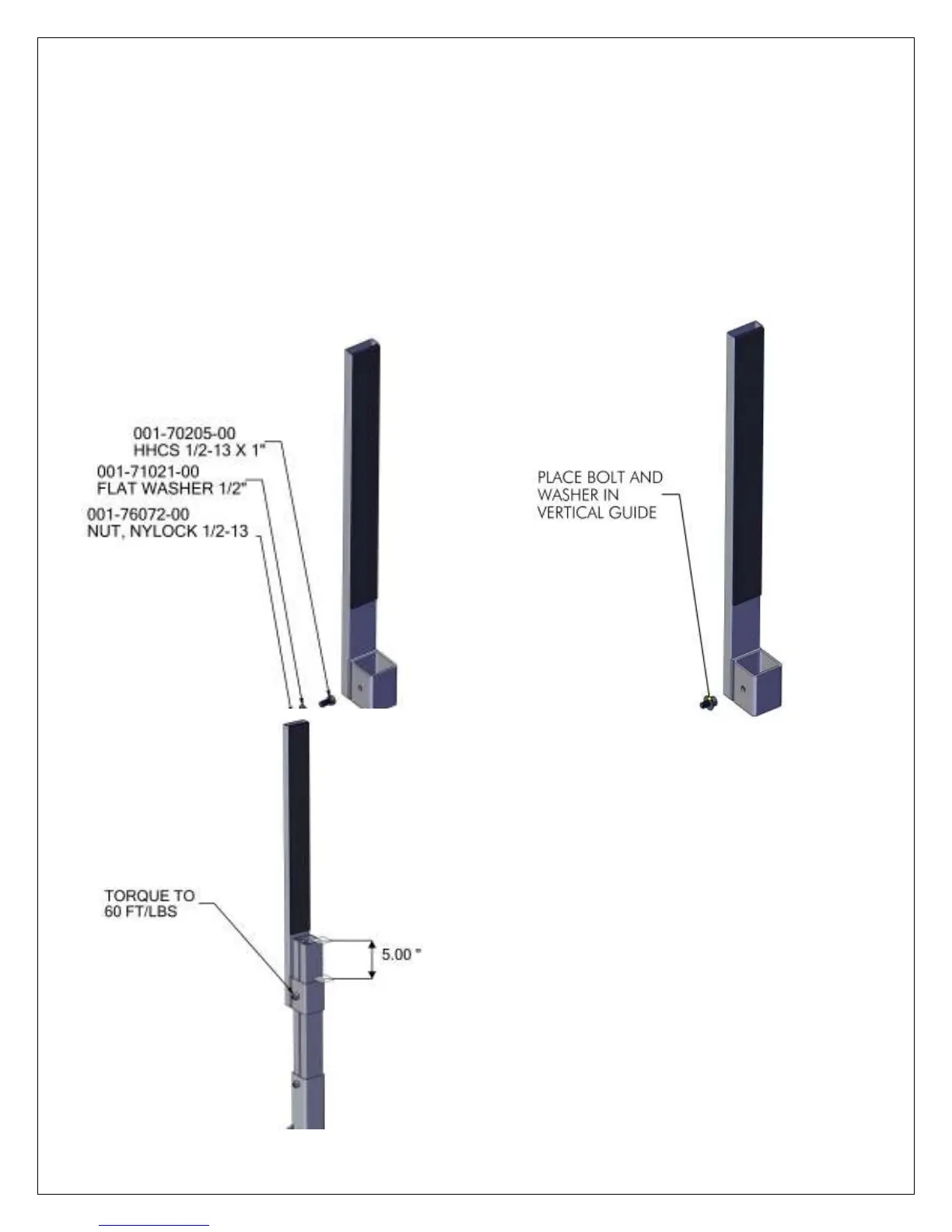

STEP 3
-ASSEMBLE CANOPY VERTICAL GUIDES (FIG. 1)
PLACE ½-13 x 1” BOLT AND WASHER IN VERTICAL GUIDE (FIG. 2)
SLIDE CANOPY VERTICAL GUIDES OVER CANOPY LEGS NEAREST TO MOTOR
PLACE NUT ON BOLT OVER GUIDE. POSITION THE VERTICAL GUIDE 5 INCHES
5 INCHES5 INCHES
5 INCHES FROM
TOP OF CANOPY LEG (FIG.3) TORQUE TO
TORQUE TO TORQUE TO
TORQUE TO 60 FT/LBS.
60 FT/LBS.60 FT/LBS.
60 FT/LBS.
GUIDES MUST BE ASSEMBLED FACING TOWARD INSIDE OF LIFT WITH PLASTIC FACING
OUTWARD (FIG. 4)
FIG. 2
FIG. 3
FIG. 1
