Floe VSD 6500 - Step 1: Corner Post Assembly

SHEET 5 OF 12

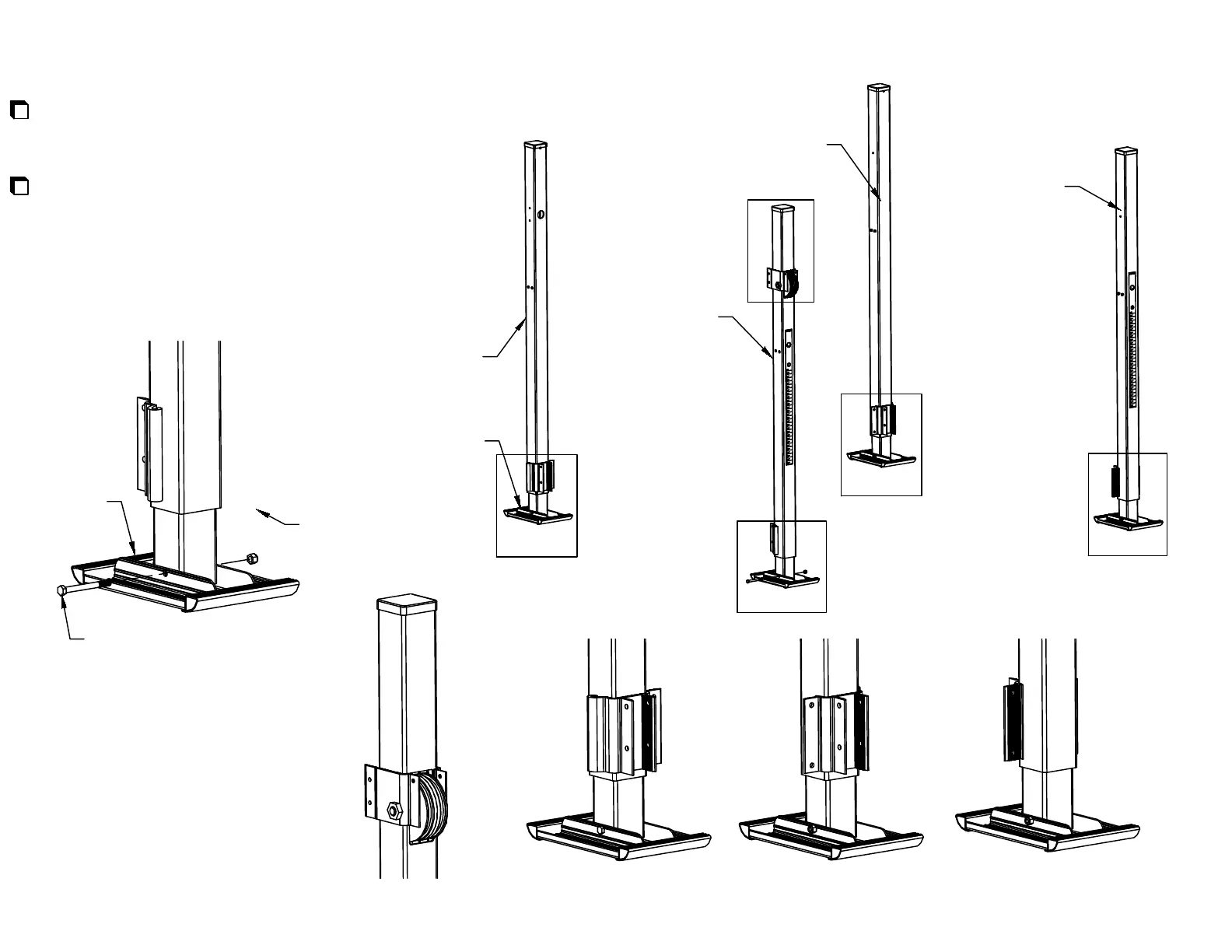

Attach sand pads to all four corner post assemblies
using (4) 1/2" x 5" bolts and (4) 1/2" nylock nuts.
Torque to 25 ft/lbs. See Fig 1A.
Arrange corner posts as shown to the right and in
Fig. 1A thru Fig. 1E.
1/2" x 5" Bolt
1/2" Aluminum
Nylock Nut
Fig. 1B
Fig. 1D
Fig. 1E
Fig. 1A
Fig. 1A
Fig. 1B Fig. 1C Fig. 1D Fig. 1E
Right Front
Corner Post Ass'y
Right Rear
Corner Post Ass'y
Left Rear
Corner Post Ass'y
Left Front
Corner Post Ass'y
Sand Pad
Sand pad
1C
Step 1
