Floe VSD 6500 - Step 3: V-Brace Installation

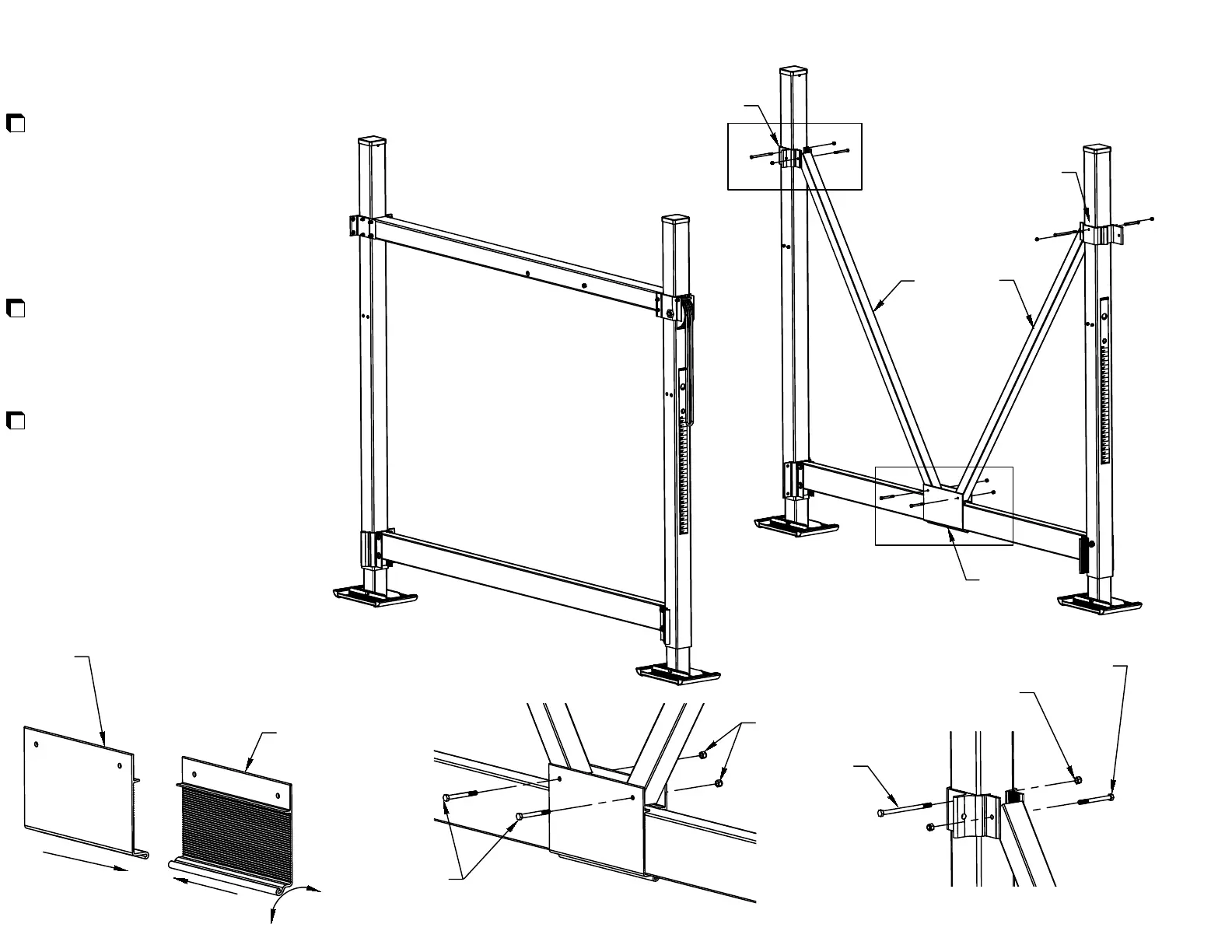

Fig. 3A
SHEET 7 OF 12
Slide the two lower V-brace clamps
together. See Fig. 3A. Locate the
lower V-brace clamps approximately
in the center of the side frame beam.
Fasten the V-braces to the lower
V-brace clamps w/ (2) 3/8" x 3 1/2"
bolts and nylock nuts. See Fig. 3B.
Attach the diagonal V-braces to the
upper V-brace clamps using (2) 3/8"
x 3 3/4" bolts and nylock nuts as
shown in Fig. 3C.
Male
V-brace
Clamp
Female
V-brace
Clamp
3/8" x 3 1/2 "
Bolts
3/8" Nylock Nuts
Fig. 3B
Fig. 3B
V-Braces
Upper Clamp
Upper Clamp
At this time you may have to slide the
lower V-brace clamp horizontally
along the side frame beam to be
able to align the upper V-brace with
the holes in the corner posts. Once
aligned attach the upper V-braces
clamps to the corner posts using (2)
3/8" x 6" bolts and nylock nuts.
Lower
Clamp
Fig. 3C
3/8" x 6"
Bolt
3/8"Nylock Nut
3/8" x 3 3/4" Bolt
Fig. 3C
Step 3
