Flory 33 Series - Page 12

O
PERATION

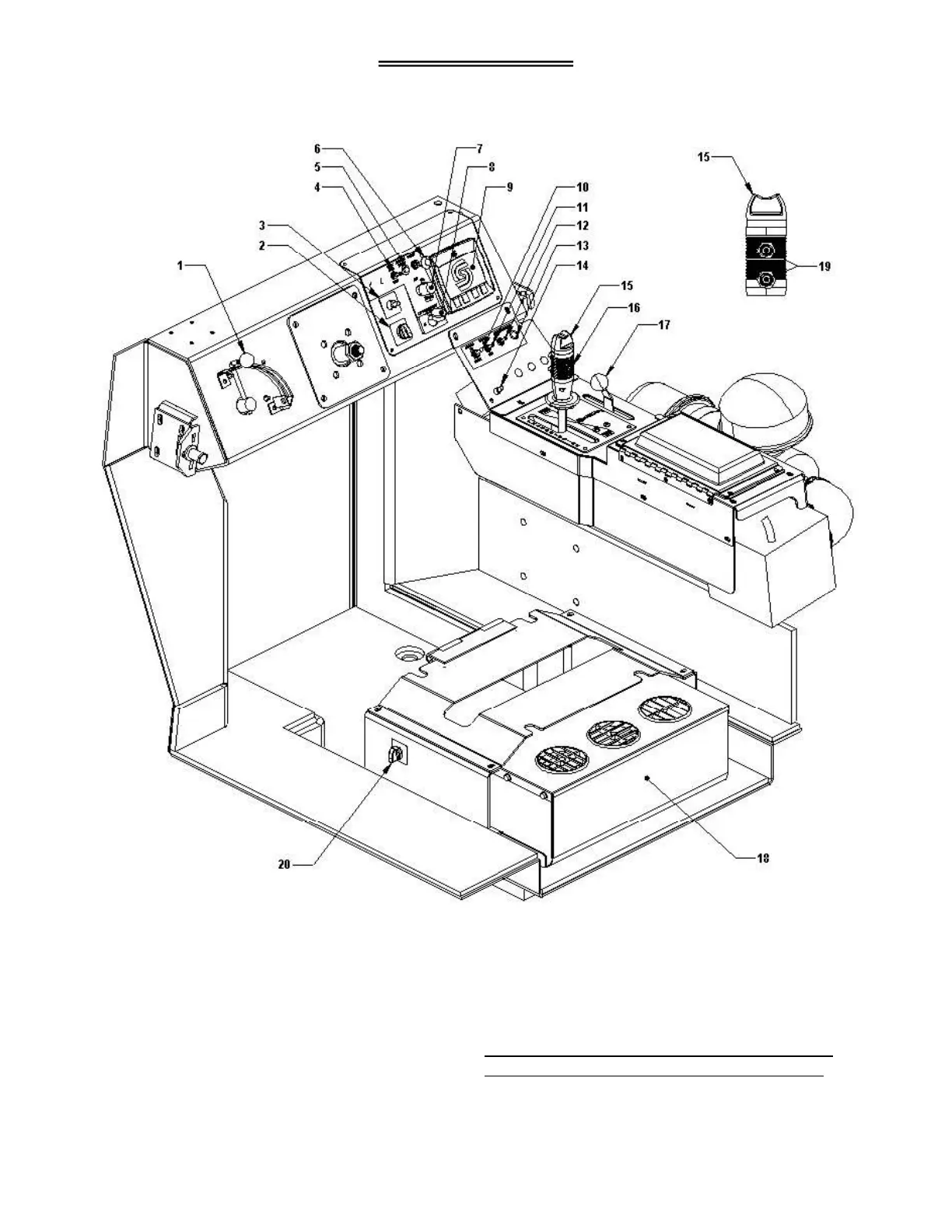

Controls/Gauges —————
1. Reel Control (on-off and speed) 12. Caution Light Switch
2. A/C – Temperature Control 13. Caution Light Indicato
r
3. A/C – Heater Switch 14. Murphy switch
4. Hi/Low Shift (Becomes 2WD/4WD with 15. Blower Damper Control
Optional 4WD kit) 16. Speed Control Lever (F – N – R)
5. Cooling Fan Manual Purge 17. Engine Throttle
6. Parking Brake 18a. A/C Blower Control (on A/C unit – Rt front)
7. Ignition Switch 18b. A/C Temp Control (on A/C unit – Rt front)
8. 12 Volt Power Poin
t
19. Reel Lift (front push-
b
uttons, up – down)
9. Engine and Systems Display - (ESD) 20. Heater Control (optional, when installed)
10. Blower Spout Control (up – down) 21. Traction control switch with optional 4WD
11. Lights (Not shown, on floor at right heel)
107
