PITLESS ADAPTOR
CHECK VALVE
BLEEDER ORIFICE & TEE
PIPE COUPLING
TAPE CABLE TO PIPE
PUMP
VENTILATED WELL CAP
SUBMERSIBLE CABLE
UNION
CONTROL BOX
(3 WIRE MODELS)
ELECTRICAL DISCONNECT
PRESSURE GAUGE
AIR VOLUME CONTROL
PRESSURE SWITCH
TO HOUSE SERVICE
GATE VALVE
RELIEF VALVE
2 ft.
(.6m)
SEE TABLE

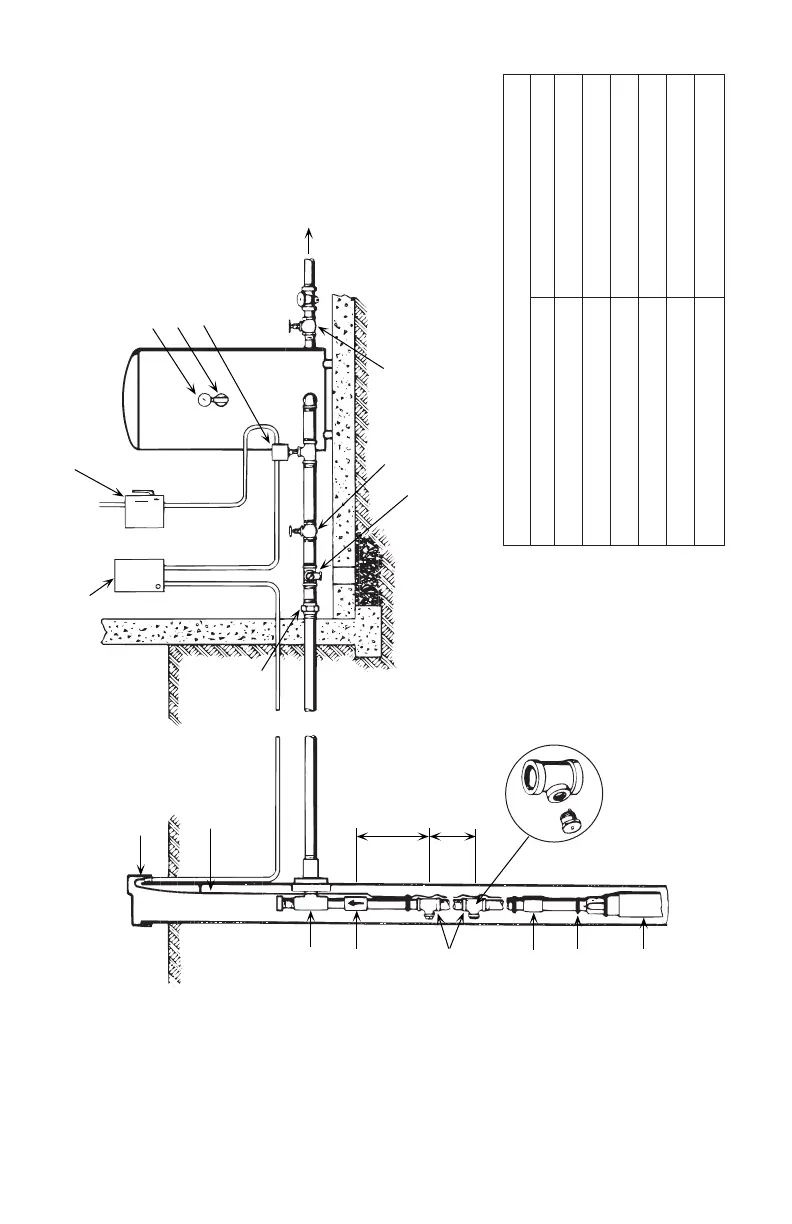

FIGURE 13 – Standard Pressure Tank Installation
CHECK VALVE DISTANCE TO TOP BLEEDER ORIFICE
TANK SIZE DISTANCE
42 Gallon (159L) 2' (.6M) 82 Gallon (310L) 3' (.9M)
120 Gallon (454L) 5' (1.4M) 220 Gallon (833L) 5' (1.4M)
315 Gallon (1192L) 10' (3.0M)
525 Gallon (1987L) 15' (4.6M)
