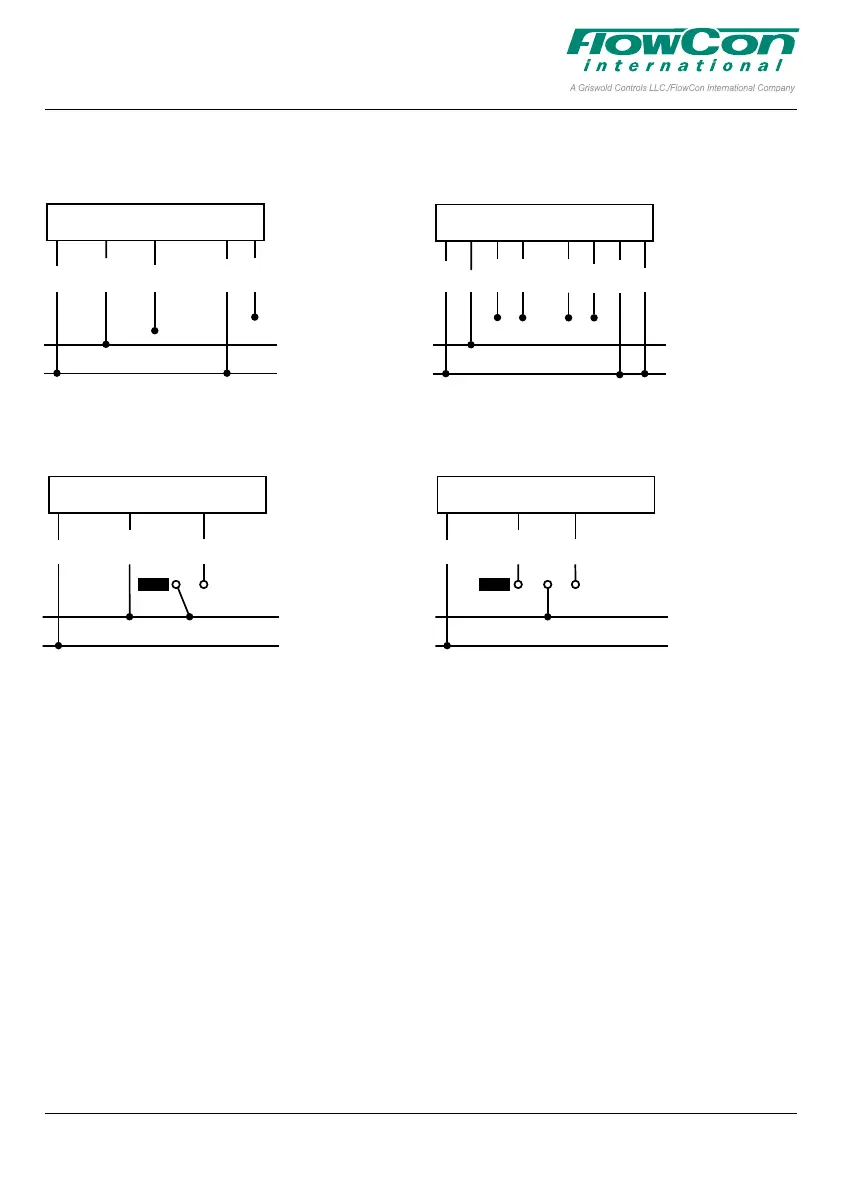

FlowCon FN.0.2 User Manual

Blue Yellow
Power 24V AC/DC
Ground/common
Green Grey
Feedback signal
0(2)-10V DC
Signal ground
Input signal
0(2)-10V DC
<0.5mA
Brown
FN.0.2 Actuator
0(2)-10V modulating
FlowCon FN (analog)
Black Pink
Power 24V AC/DC
Ground/common
Yellow
D+
Red
FN.0.2-BUS Actuator
RS-485 Serial
Green
Violet
D-
White Grey
P1
P2
FlowCon FN (digital)
Blue
Power 24V AC/DC
Ground/common
Grey Brown
Open
FN.0.4 Actuator
2-Position, Normally Closed
Close
PLEASE NOTE: FN.0.4 has a reation time of 0.8 sec.
This is the time from giving a 24V power signal until
the actuator starts to move. This is particular important
if using a pulse power signal.
Blue
Power 24V AC/DC
Ground/common
Grey Brown
Open
Stop
FN.0.4 Actuator
3-Point Floating, Normally Closed
Close
Wiring
This paper is a supplement to the FlowCon General Instruction
Latest release of any FlowCon material is available on www.owcon.com
FlowCon FN.0.2, FN.0.2-BUS and FN.0.4
1B95080 - 01/2023
Page 2 of 8

FlowCon FN.0.2 Specifications

General

Brand	FlowCon
Model	FN.0.2
Category	Controller
Language	English
