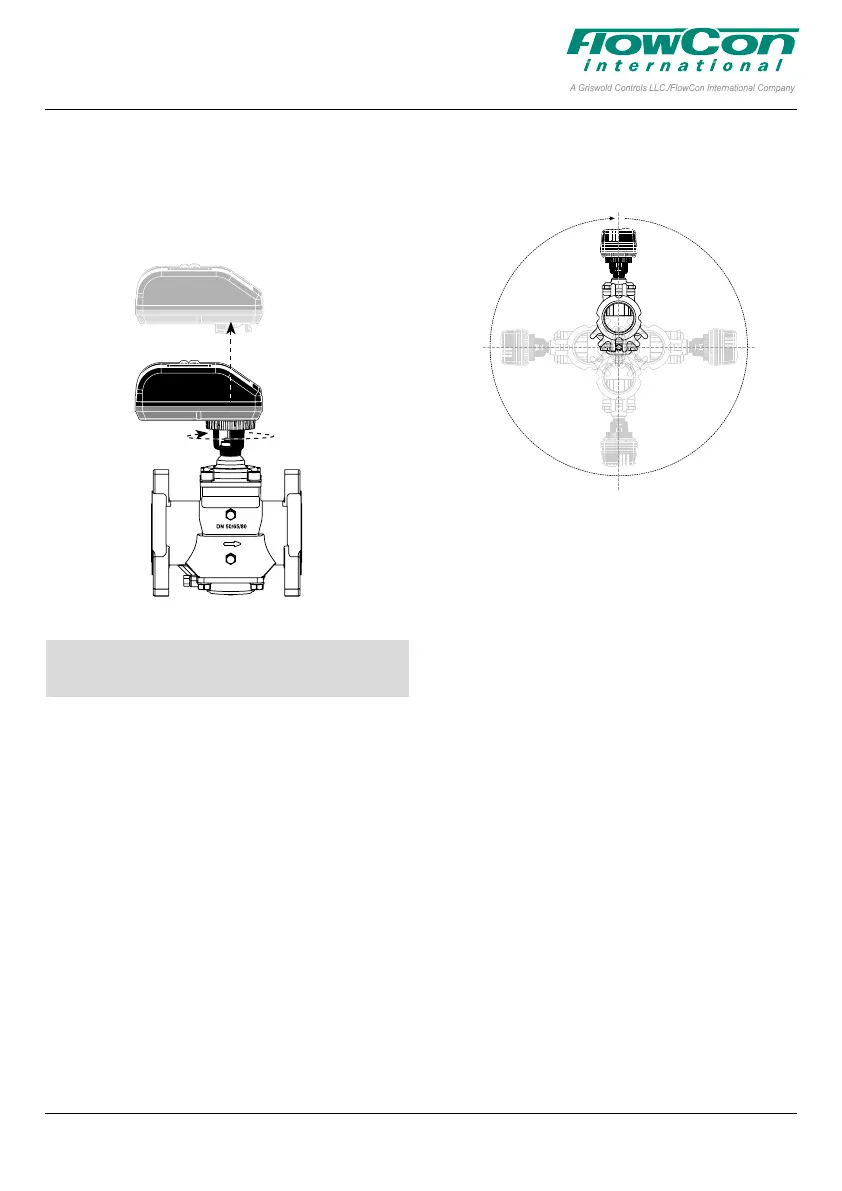

Figure 4
360º
Figure 5
In case the actuator will have to be removed, it
is recommended to electrically open the valve
for easier removal. Hereafter reverse the proce
-
dure and turn the snap ring clockwise until the
actuator is loosened and lift the actuator up.
Again, no need for additional tools.
Do not remove cover from actuator.
Opening cover will void warranty.
Orientation
Upside-down installation is allowed along with
the standard horizontal and vertical installation
(figure 5).
This paper is a supplement to the FlowCon General Instruction
Latest release of any FlowCon material is available on www.owcon.com
FlowCon SM 15-250 mm (1/2”-10”)
1A95106 - 01/2019
Page 2 of 8
