Flowserve Durametallic P-50 User Manual

9
4.2.6 Remove the rotor retaining
ring from the sleeve and re-
move the rotor from the sleeve.
4.2.7 Remove the O-rings from the
sleeve and discard. Be careful
not to mar the sleeve.

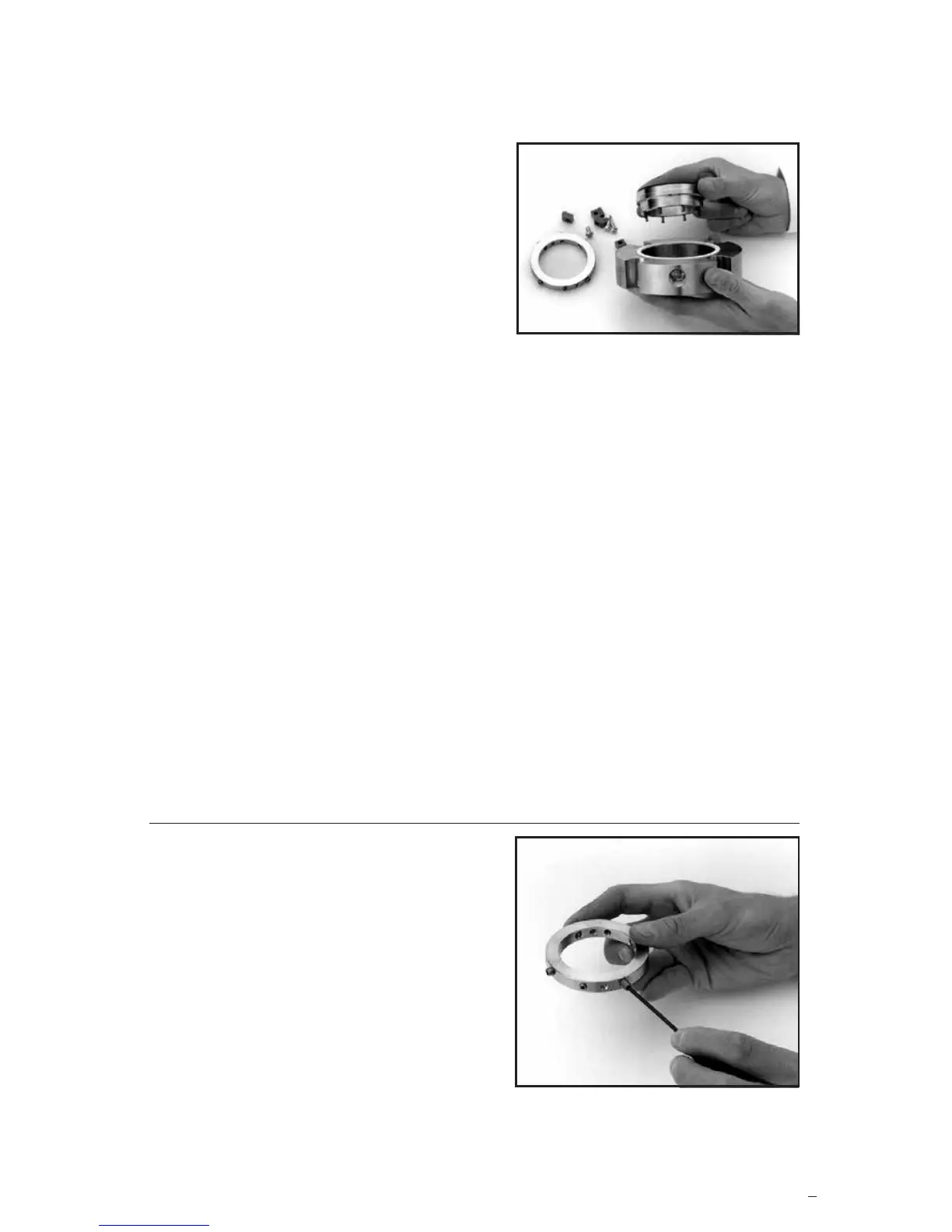

4.2.8 Pull the stator from the gland
ring bore and remove and dis-
card the springs. See Figure 9.
4.2.9 Remove the stator mounting
O-ring and face gasket, from
the gland and discard.
Note: Parts which should be discarded include the O-rings, gasket,
springs, centering tabs and centering tab cap screws and set screws.
Parts which may be reused if in satisfactory condition include the sleeve,
gland and sleeve collar.
Parts which may be reconditioned by an authorized Flowserve repair
facility include the rotor and stator.
Figure 10
4.3 Re-assembly
4.3.1 Install new set screws into the
collar. Be careful to locate the
cup point and half dog point set
screws in the proper holes.
See Figure 10.
Figure 9
