18 Disposal
Up to 95 % of the Valtek GS control valve is metal. The re-
maining materials are synthetic, rubber, polytetrafluoroethyl-
ene (PTFE), graphite, paint, and lubricants.
NOTICE
Potential hazards and their sources are un-
der the operator‘s influence. The operator
must observe national and international environmental condi-
tions for control valve removal from the pipeline and cleaning.
Permissible limit values must be maintained to ensure suit-
able protective measures; service personnel must be prop-
erly instructed in performing the disassembly and reassembly
procedure.
The valve should be professionally disassembled and reas-
sembled. Metal parts should be scrapped, with the remaining
materials disposed of according the national conditions.
Peripheral units (accessories) should be recycled according
the relevant manufacturer‘s User Instructions.

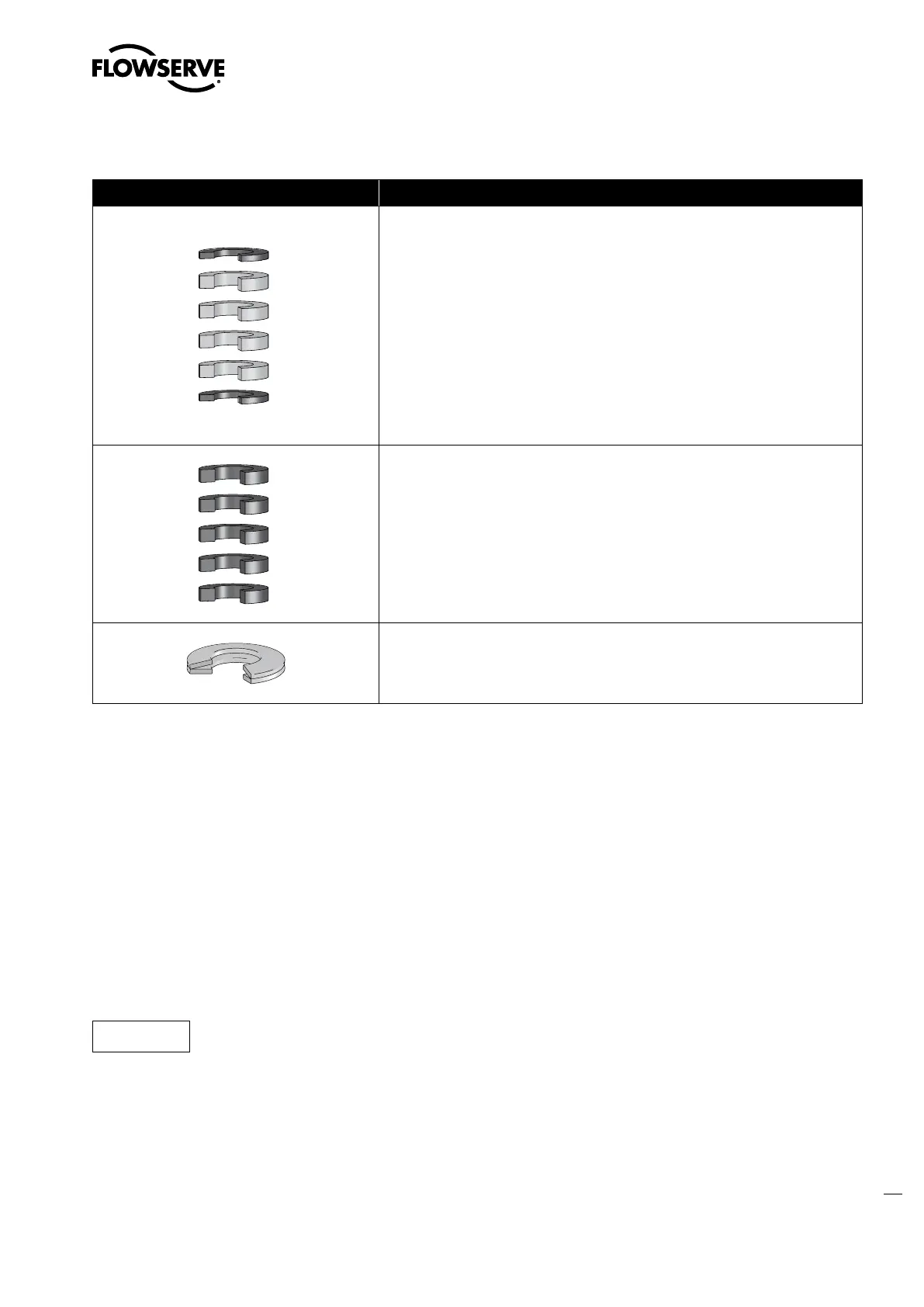

Parts List - Packing Details
Part Detail
PTFE Packing (88)
This consists of:
1 Pc. Anti Extrusion Ring
4 Pcs. Packing Rings
1 Pc. Anti Extrusion Ring
Rotate each ring 180° from the overlapping point.
Graphite Packing (88)
This consists of:
5 Pcs. Packing Rings
Rotate each ring 180° from the overlapping point.
Belleville Springs (109)
The two Belleville springs must stacked in series !
Table 17: Packing Details
