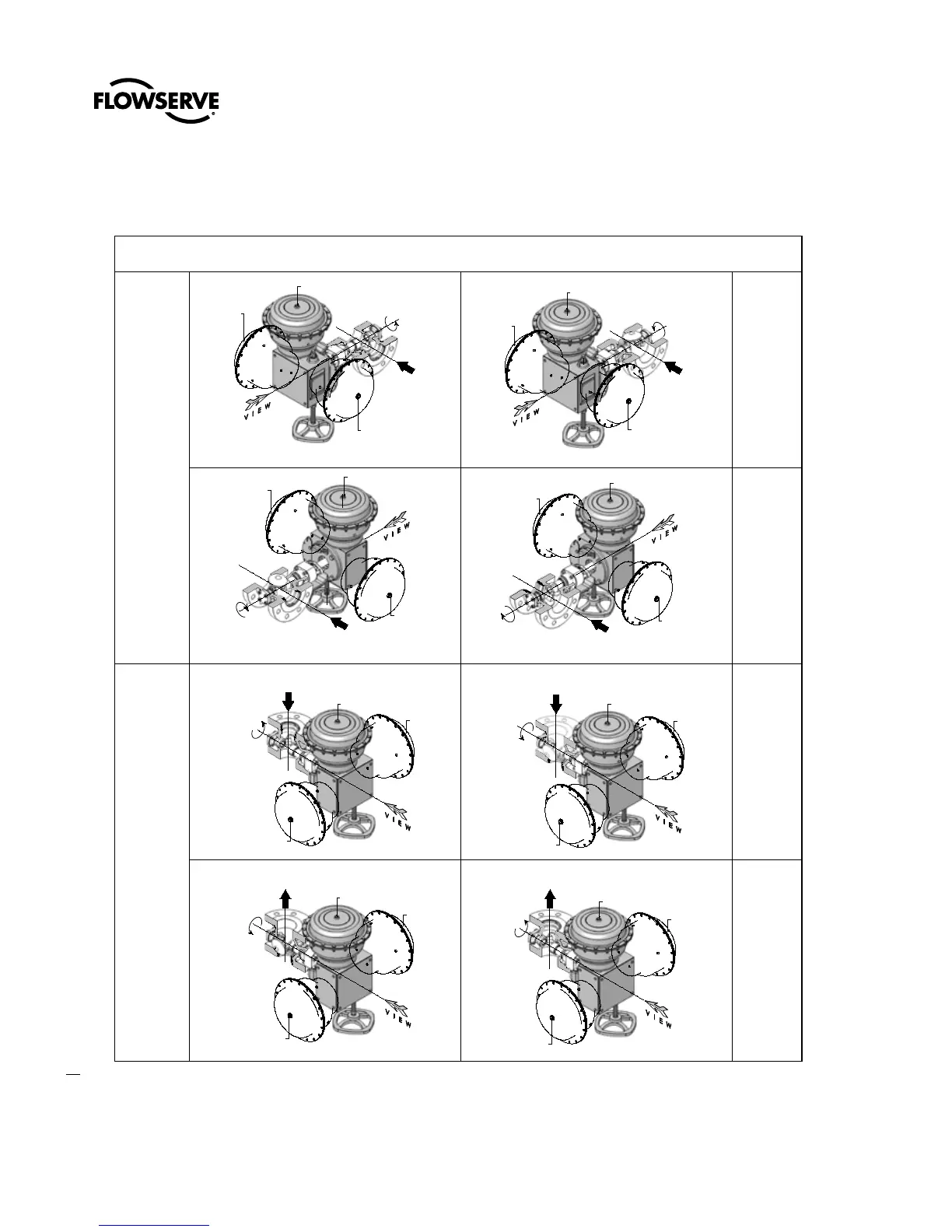

12 Pipeline Mounting Orientations – Air-To-CloseConfiguration -
Diaphragm Actuator
AIR-TO-CLOSE, FAIL OPEN CONFIGURATION
SHAFT DOWNSTREAM SHAFT UPSTREAM
HORIZONTAL FLOW
LEFT
RIGHT
FLOW
AIR TO CLOSE
TOP
RIGHT
LEFT
AIR TO CLOSE
TOP
FLOW
LEFT HAND PIPE MOUNTING
LEFT
RIGHT
FLOW
AIR TO CLOSE
TOP
LEFT
RIGHT
FLOW
AIR TO CLOSE
TOP
RIGHT HAND PIPE MOUNTING
VERTICAL FLOW
LEFT
RIGHT
FLOW
AIR TO CLOSE
TOP
LEFT
RIGHT
FLOW
TOP
AIR TO CLOSE
FLOW DOWN
LEFT
RIGHT
TOP
AIR TO CLOSE
FLOW
LEFT
RIGHT
AIR TO CLOSE
TOP
FLOW
FLOW UP
Valtek MaxFlo 4 FCD VLENIM0064-01-A4 – 11/15
