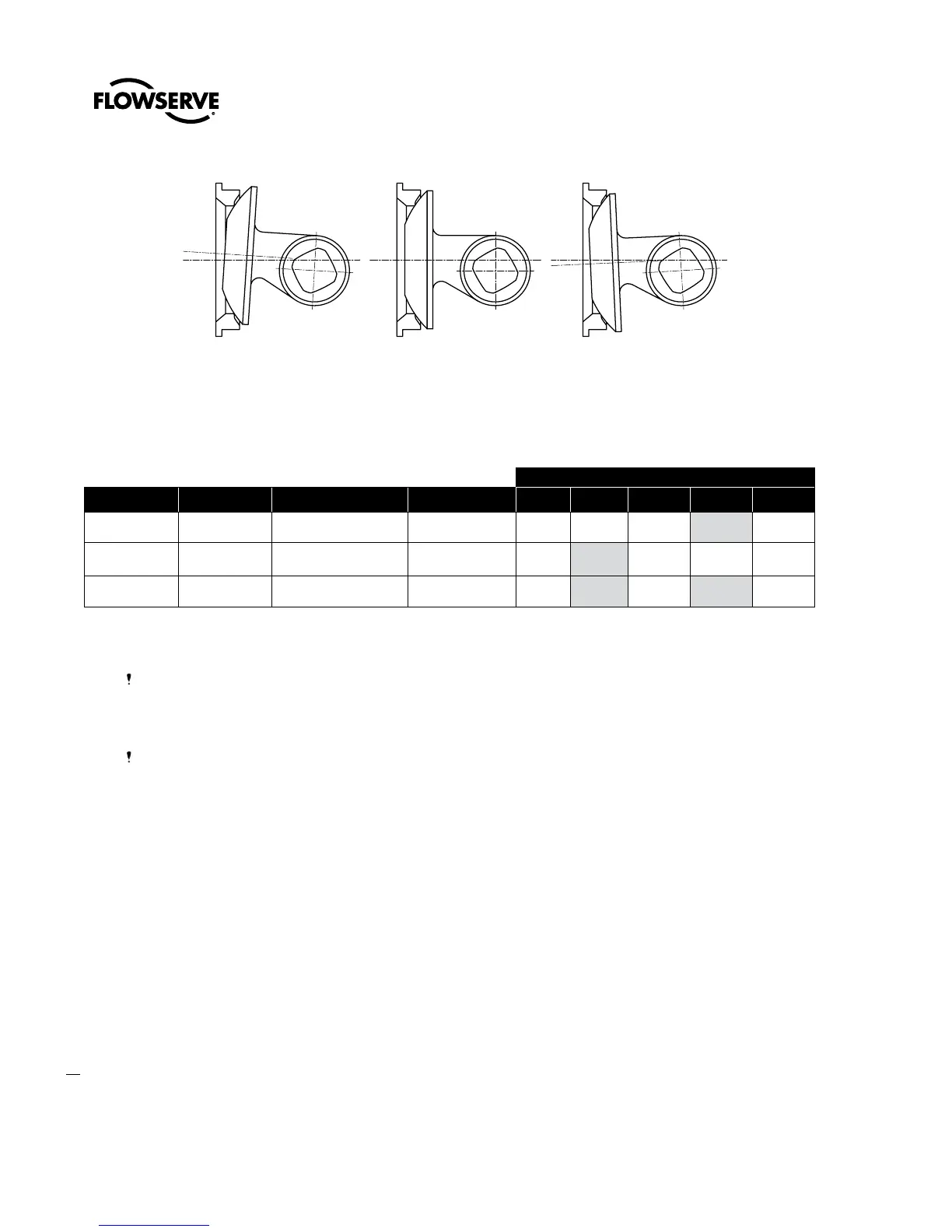

Figure 5: positioning of plug
Recommended plug rotation. Plug
slightly under-rotated.
Table IV: Shim Selection
Thickness of shims available
Valve Size Rounding rule Example Chosen thickness 0.1 mm 0.15 mm 0.2 mm 0.3 mm 0.5 mm
1"
DN25
to 0.05 mm
A – B = 0.27 mm
rounded to 0.25 mm
0.1 mm
0.15 mm
X X X X
1.5" to 8"
DN40 à DN200
to 0.1 mm
A – B = 0.27 mm
rounded to 0.2 mm
0.2 mm X X X X
10" – 12"
DN250 – DN300
A - B - 0.3
rounded to 0.5mm
A – B = 0.9 mm
A – B – 0.3 mm = 0.6 mm
0.5 mm X X X
Maximum limit for plug rotation. The
plug should not be rotated further.
Recommended plug rotation ex-
ceeded. Setting should be avoided.
10 Actuator Remounting
NOTE: The MaxFlo 4 valve opens in a clockwise
direction when looking down the valve shaft.
10.1 When remounting the actuator to the valve, refer to the
appropriate actuator manual.
NOTE: The actuator stroke stops must be adjusted
correctly to avoid any over-rotation of the plug stroke.
Poor adjustment can cause damage to the valve. Pay
special attention to the adjustment of the closing stop
when the valve has a soft seat.
10.2 Install the valve in the pipeline as indicated in the “Instal-
lation” section according to the orientation recommen-
dations given at the end of the manual.
