Item 117 Packing box nuts
Item 109 Packing box studs
Item 80 Gland flange
Item 87 Packing follower
Item 114 Bonnet nuts
Item 108 Bonnet studs
Item 93 Packing spacer
Item 88 Packing set
Item 99 Packing stop
Item 40 Bonnet
Item 42 Purge plug (optional)
Item 58 Bonnet gasket
Item 46 Thrust bearing
Item 51 Shaft
Item 83 Shaft bearing
Item 50 Plug
Item 84 End post bearing
Item 1 Body
Item 23 Shims (if required)
Item 20 Seat
Item 30 Seat retainer
Item 61 End post gasket
Item 122 End post
Item 115 End post studs
Item 119 End post nuts

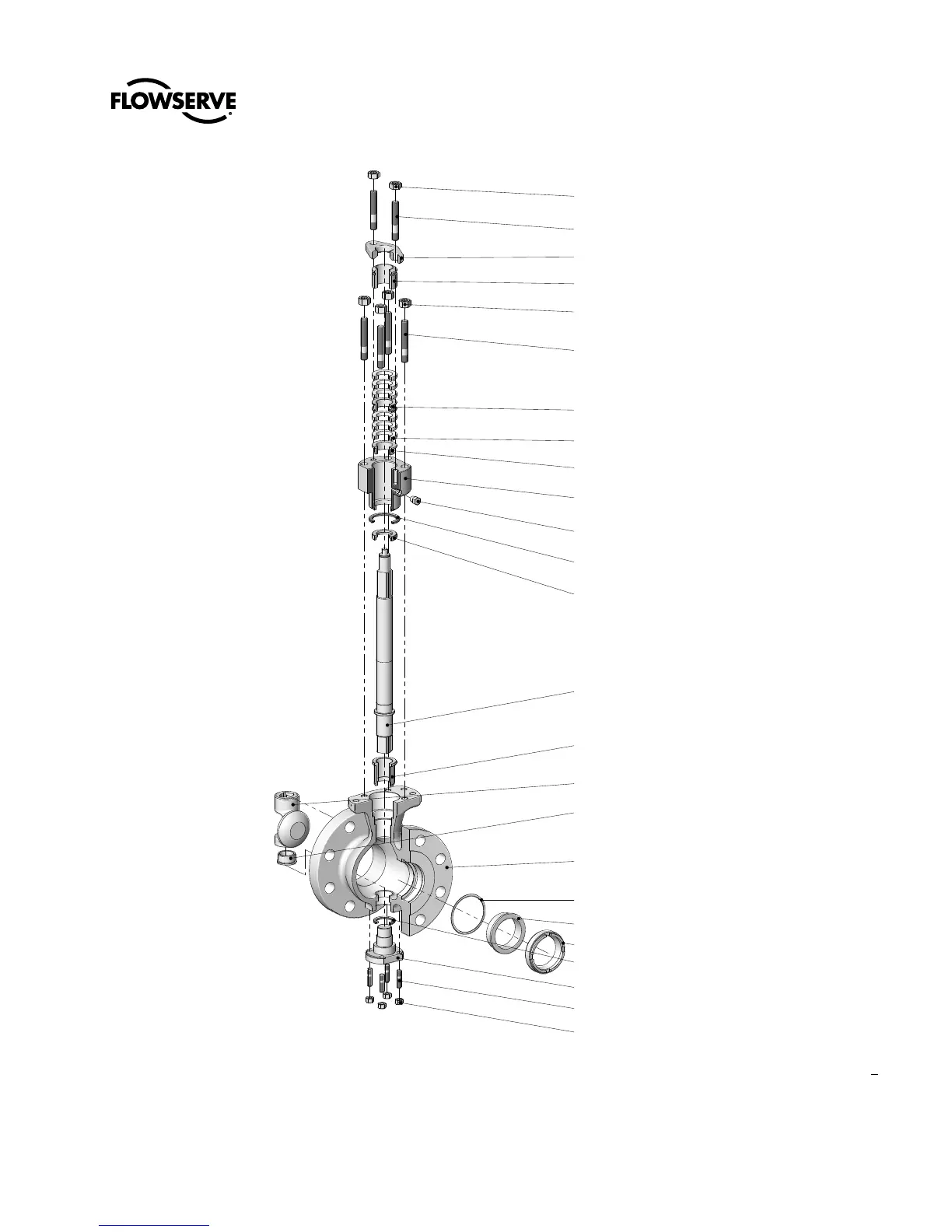

Figure 1: MaxFlo 4 valve body assembly
item numbers correspond directly to the valve’s bill of material.
Refer to it for specific part numbers.
