LANCE HANGERS AND ADJUSTABLE KIT CONTINUED
Once both hangers are in place, use two people to lift the fixture to the
installed handing hardware. Be sure to hang from the center of the lance
hanger to ensure a balanced fixture. If using the Adjustable Hanger Kit,
hook the Gripple hooks on each lance hanger. Adjust the height on each
end until level by sliding the Gripple hook up or down along the cable. To
slide down, squeeze and hold the release mechanism on the sides of the
hook.
4
RACKS WITH TRAY AND VAS

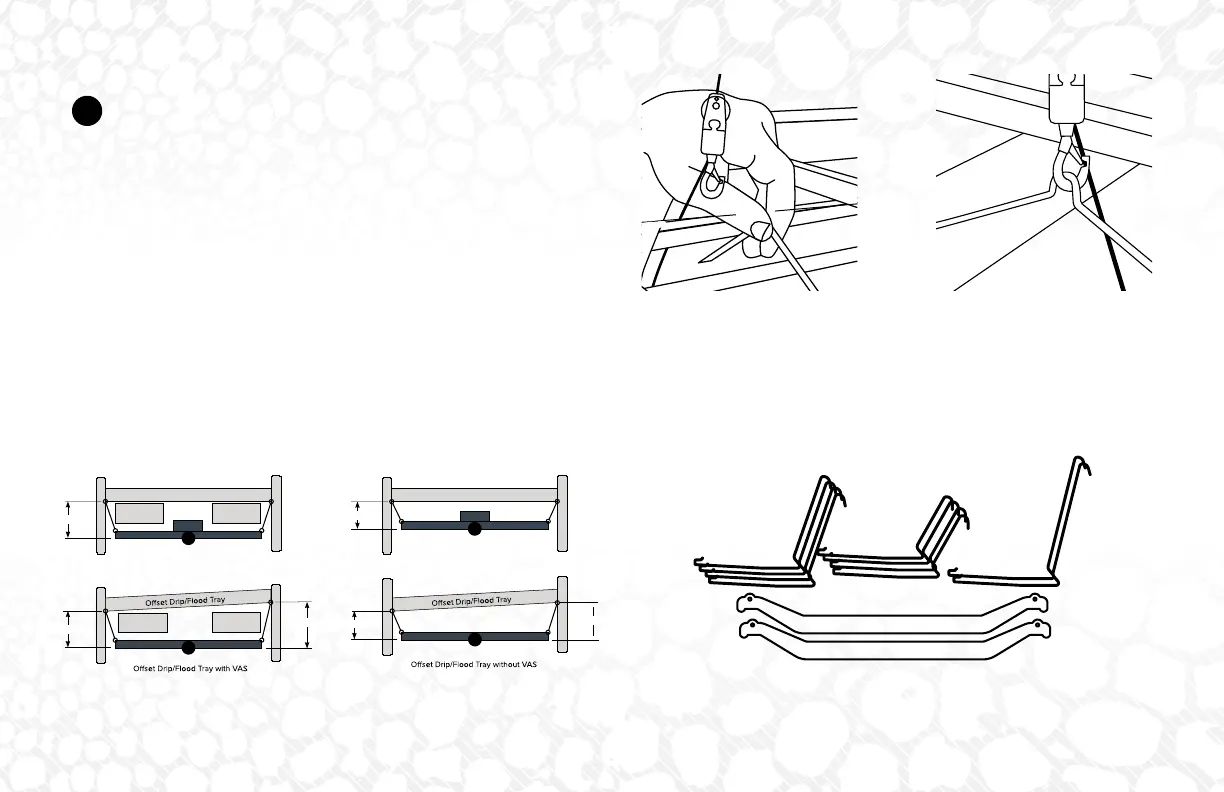

Please refer to the illustration to find the correct hanger configuration for your
specific application.
~6” [15 cm]
ABS Tray with VAS
ABS Tray without VAS
~4” [10 cm]
~6” [15 cm]
~8” [20 cm]
~4” [10 cm]
~6” [15 cm]
ABS Tray
VAS VAS
ABS Tray
VAS
VAS
VAS Hanger
Medium
VAS Hanger
Short
VAS Hinge Brace
VAS Hanger
LONG
