FLUENCE SPYDR 2 Series - Page 12

12

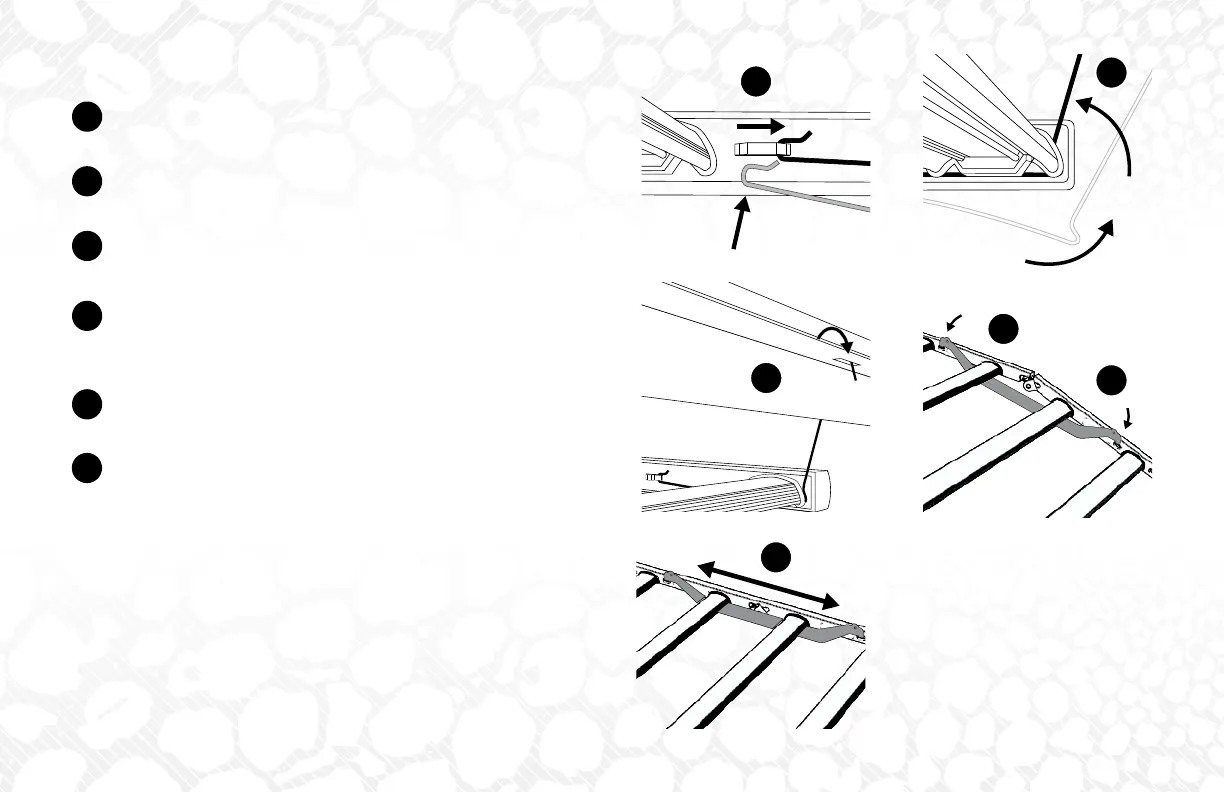

RACKS WITH TRAYS AND VAS CONTINUED
Hook one of the wire hangers on the 2nd bridge lance furthest from the
hinge.
Bring wire around the end light bar such that it fits around the end
connector as shown.
Hook the other end of the wire hanger into slots on the rack system.
Repeat on both sides of the rack.
Install one side of brace by hooking one end of brace into bridge lance
on SPYDR frame. Install other side of brace by slightly collapsing SPYDR
fixture at hinge.
Hook the free end of brace into bridge lance on opposite side of SPYDR
frame on the other side with the hinge collapsed.
Complete hinge brace installation by unfolding SPYDR frame to fully
opened position. Repeat on the other side.
1
2
3
4
5
“CLICK”
1
2
3
4
5
6
6
