SPYDR 2 Series fixtures ship with your choice of hanging hardware. To mount your SPYDR 2 fixture, start by identifying a suitable support structure to hang
your fixture from. Common support structures include pallet racks, rolling tables, Unistrut, trusses, and structural channel. For optimal results, two people are
recommended to mount the fixtures.
POWER SUPPLY MOUNTING CONTINUED

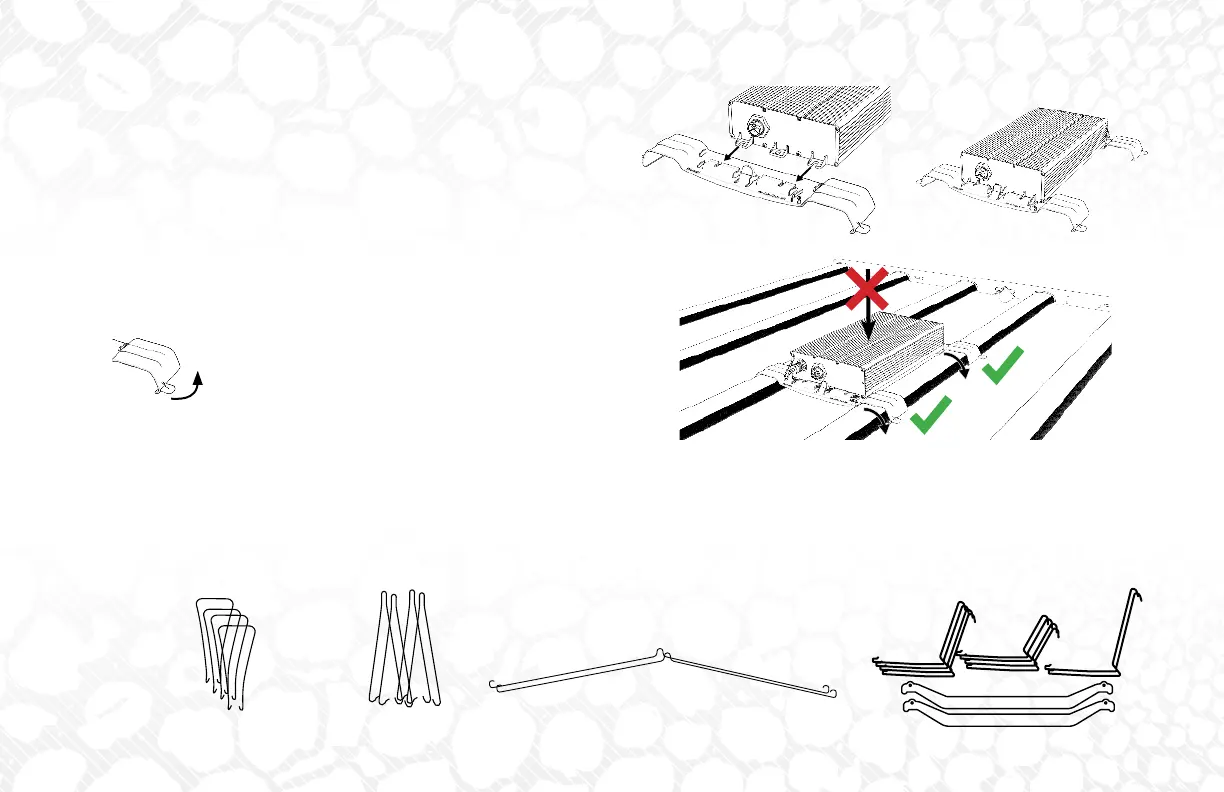

SPYDR 2h models
i. Place the PSU on a flat level surface.
ii. Push/slide brackets on to the PSU base flange until you hear a click.
iii. Once brackets are securely attached flip unit over and clip on to
center light bars in the middle of the SPYDR 2h fixture by using the clips
on the corner of the bracket.
NOTE: If there is a need to remove power supply bracket, use tab on
bracket by pulling it up to release from heat sink light bar.
Waterfall
Mount
Solid Decking
Mount
Lance Hanger
FIXTURE MOUNTING INSTRUCTIONS
“CLICK”
“CLICK”
iii.
i.
ii.
ABS/Flood Tray with/without VAS
To Next Page
