Fluke 16 User Manual

Replacement Parts
11
!
CAL
ENABLE
10A
100
mA
1000V
750V
MAX
ALL INPUTS
1kV MAX
500mA
F 250V
POWER
AUTO
2ND
MN MX
RATE
dB
REL
LOCAL
THRESH ADDR BAUD
HOLD
LO
HI
COMP
A
A
V
FREQ
DUAL DISPLAY MULTIMETER
45
V
REF#
REF
V
COM
FUSED
80T-150U
+
_
9V
BATTERY
+
+
R38
Clip to Base Contacts
Vm
ig4f.eps

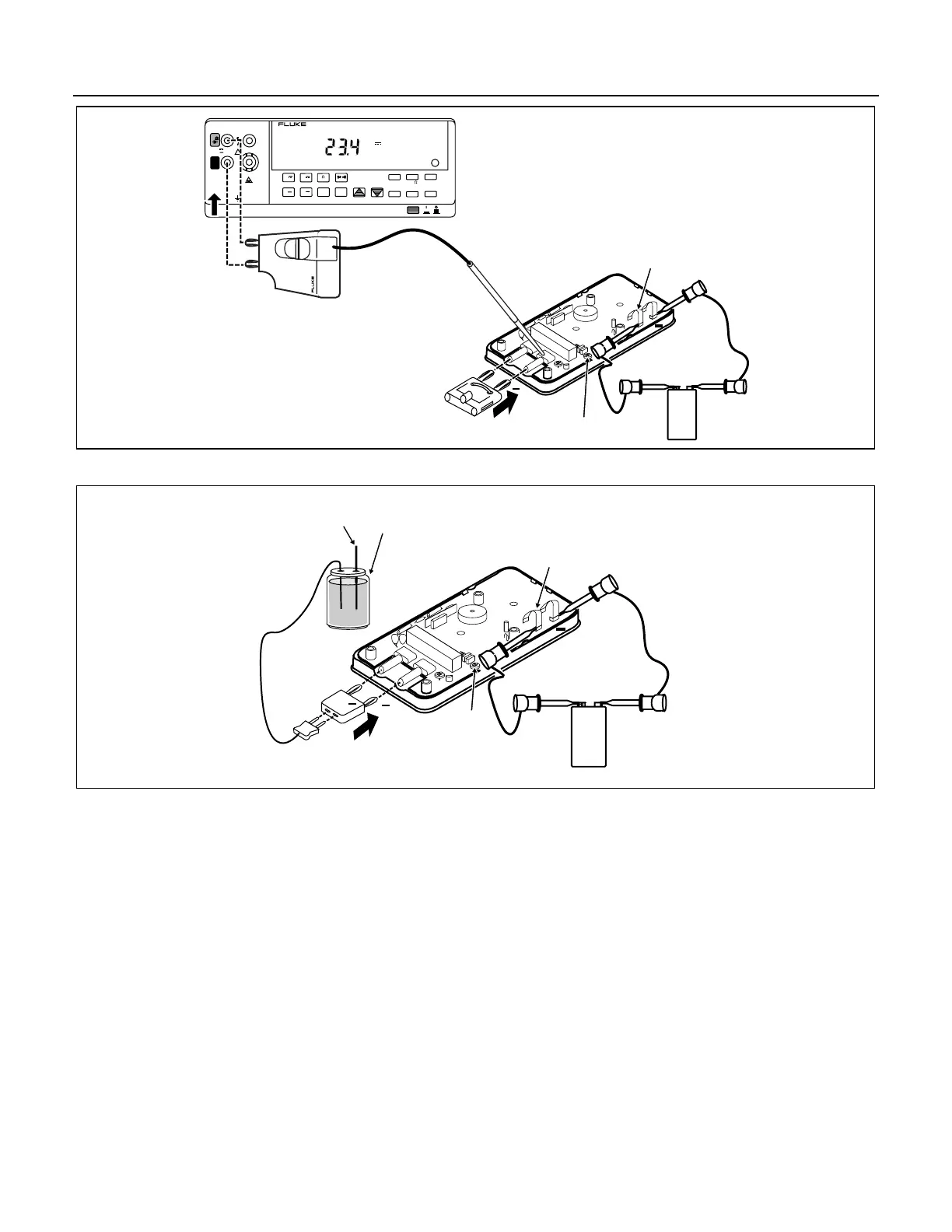

Figure 5. Calibration Adjustment for Temperature Using the 80T-150U
+
_
9V
BATTERY
+
Clip to Base Contacts
R38
Ice or Lag Bath
80AK
Thermocouple
Thermometer
+
+
ig5f.eps
Figure 6. Calibration Adjustment for Temperature Using an Ice or Lag Bath

Fluke 16 Specifications

General

Type	Digital Multimeter
Continuity Check	Yes
Diode Test	Yes
Temperature Resolution	0.1 °C
Accuracy	±(0.5% + 1 digit)
Temperature Measurement	-40 °C to 400 °C
Capacitance Measurement	1000 µF
Battery Type	9 V
Battery Life	200 hours
Operating Temperature	0 °C to 50 °C
Storage Temperature	-20 °C to 60 °C
Emissivity	Not applicable
Distance to Spot Ratio	Not applicable
AC Voltage Range	0.1 mV to 600 V
DC Voltage Range	0.1 mV to 600 V
Resistance Range	0 - 40 MΩ
