Fluke 1736 Instructions

Direct Input
0 V DC to 10 V DC Configuration

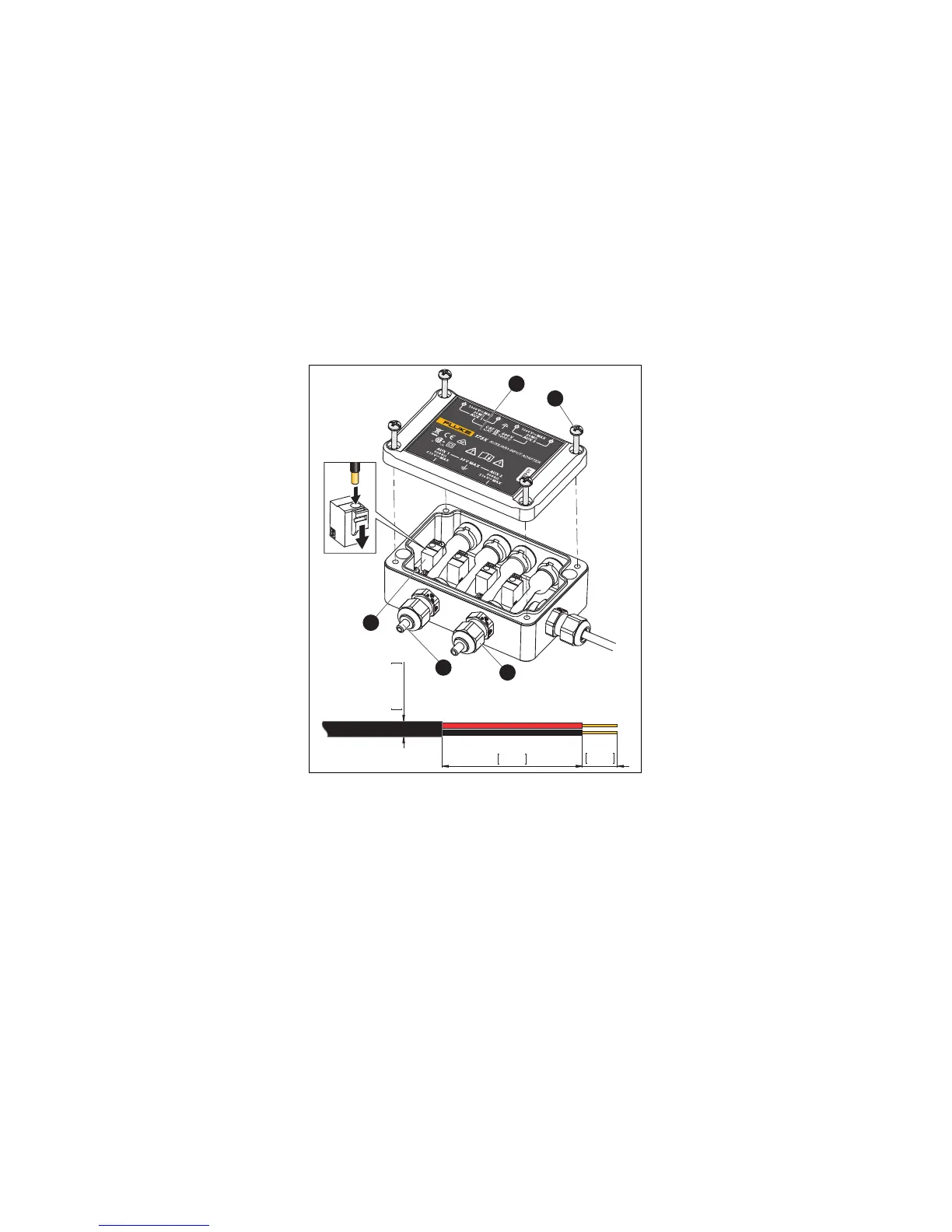

To connect the Adapter:
1. Make sure that all 4 mm safety test leads are disconnected.
2. Loosen the 4 captive screws  and remove the lid  to
open the housing.
3. Cut and strip the cable.
4. Open the grommet strain relief  and remove the dummy
plug D.
Note
The dummy plug or a cable must be installed to achieve
the ingress protection of IP50.
1
2
3
4
5
40mm
1,57in
10mm
0,39in
Ø 3-6 mm
0,12-0,24in
Shop for Power Metering products online at:
1.888.610.7664
www.PowerMeterStore.c om

Fluke 1736 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
