Fluke 1736 Manual Supplement

1736/1738 Users Manual Supplement
7/19 5
• To supply power to the Logger from installations with neutral
voltage (see Figure 7B):

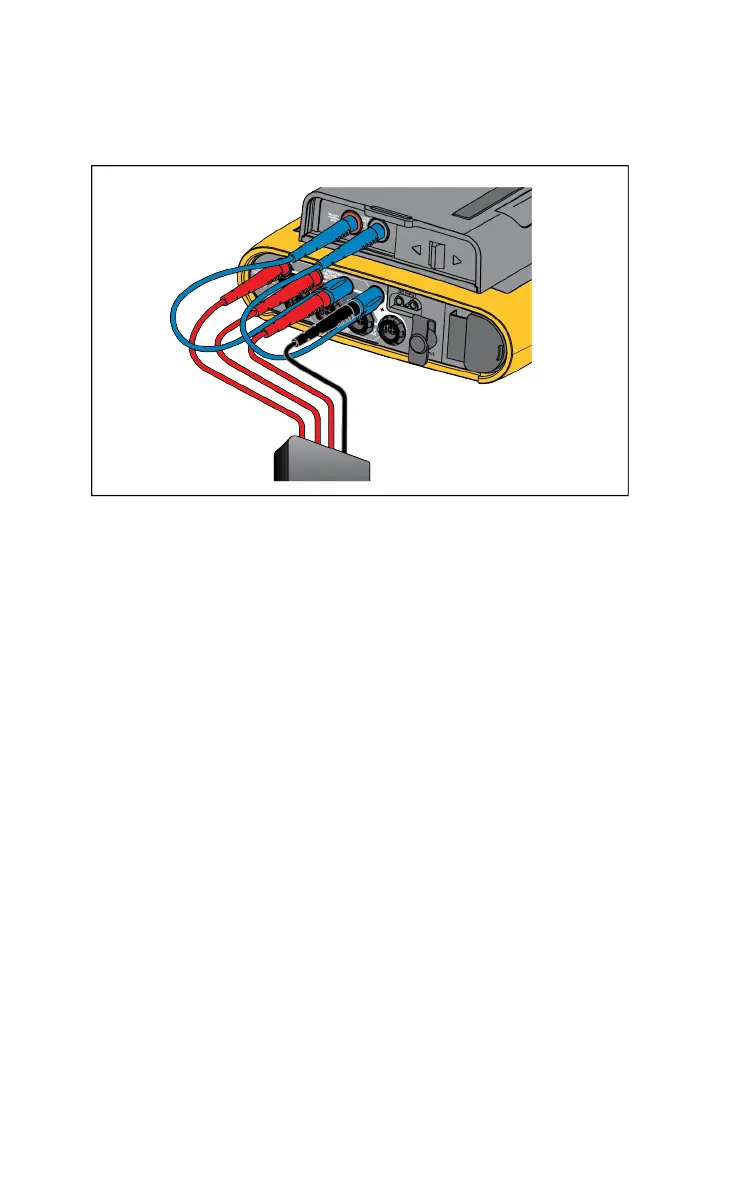

Figure 7B: Measurement with neutral voltage and supplying
instrument power.
Note
You must locate and connect an alternate power source to the
instrument if the voltage to measure is <100 V or >500 V. Use
the set of 2 m test leads (item 8 in Figure 11) or the supplied
power cord.
6. Connect the voltage inputs to the test points.
The Logger automatically turns on and is ready to use in <30
seconds.

Fluke 1736 Specifications

General

Product type	Three phase power measurement logger
Cable lock slot type	Kensington
International Protection (IP) code	IP50
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Built-in display	Yes
Display diagonal	4.3 \
Touchscreen type	Resistive
Display resolution	480 x 272 pixels
Display technology	TFT
Efficiency	68.2 %
Battery life	4 h
Charging time	6 h
Battery voltage	3.7 V
Input frequency	50/60 Hz
Battery capacity	9.25 Wh
Power consumption (max)	50 VA
Battery life (power save mode)	5.5 h

Weight and Dimensions

Depth	55 mm
Width	198 mm
Height	167 mm
Weight	1100 g
Power adapter weight	400 g
Power supply dimensions (WxDxH)	130 x 45 x 130 mm
