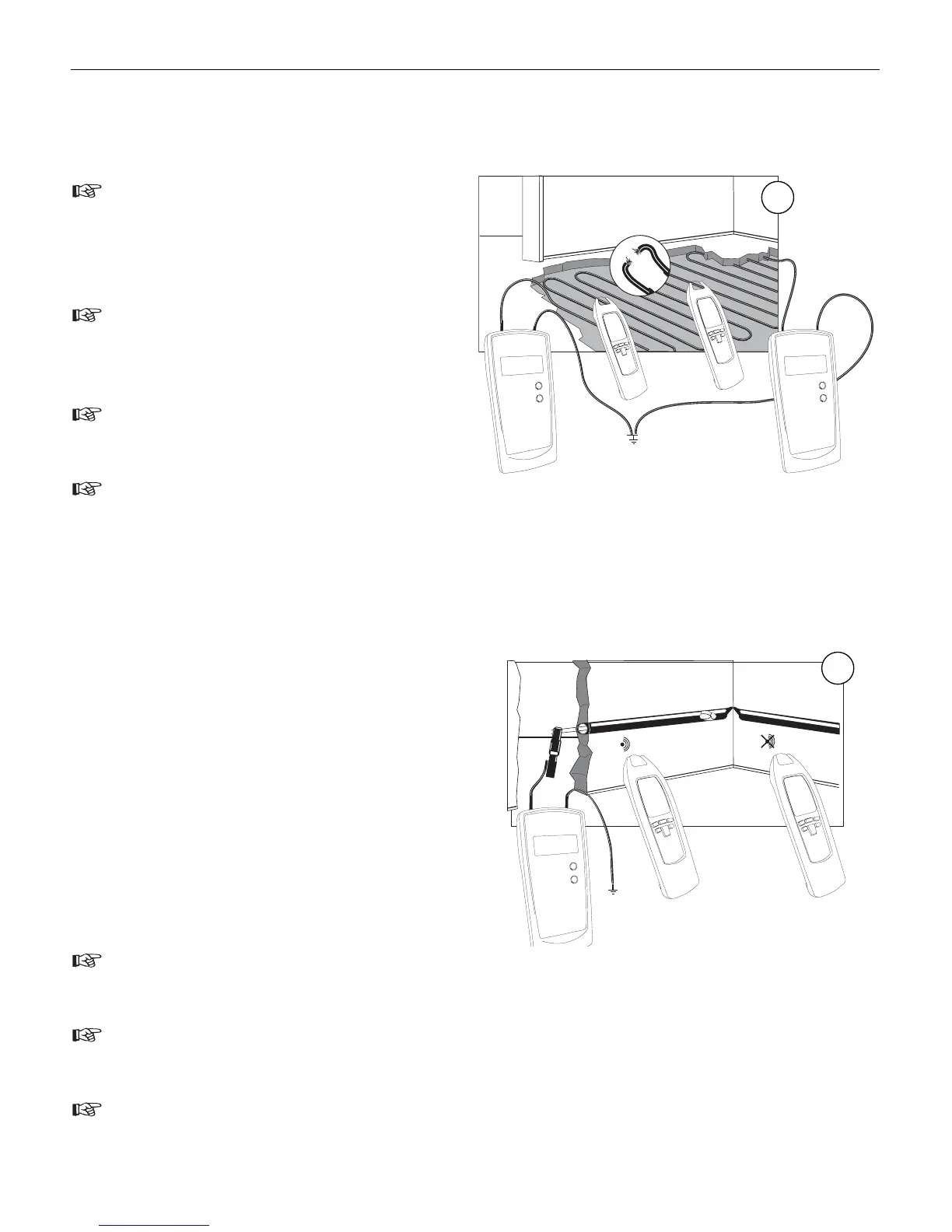

Error detection for a electrical floor heating (one-pole application)
Please also note the connection conditions.
If a shield mat or shield wiring is located
above the heating wires, no ground connecti-
on may exist. If required, separate the shield
from the ground connection.
The switching with button 4 from »LEVEL I«
to »LEVEL III« the sensitvity of Distance is in-
creased up to a factor of 5.
A second transmitter is required for this appli-
cation.
Setup: manual mode, minimal sensitivity. Tra-
cing depth max. 2 meters.
Locating of bottlenecks (obstructions) in installation pipes
(single-pole application)
Requirements:
• Any circuits in the pipe must be dead and groun-
ded.
• Connect transmitter to the metal coil and auxiliary
ground according to figure 9.
• Carry out this example as described in the appli-
cation example.
Systematically circle round the interruption the
changing the sensitivity
If you have only coil actual of non conducting material (ex. fiber), we recommand you to slide a
copper wire ex. 1,5 mm
2
up to the x-pipes.
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.
