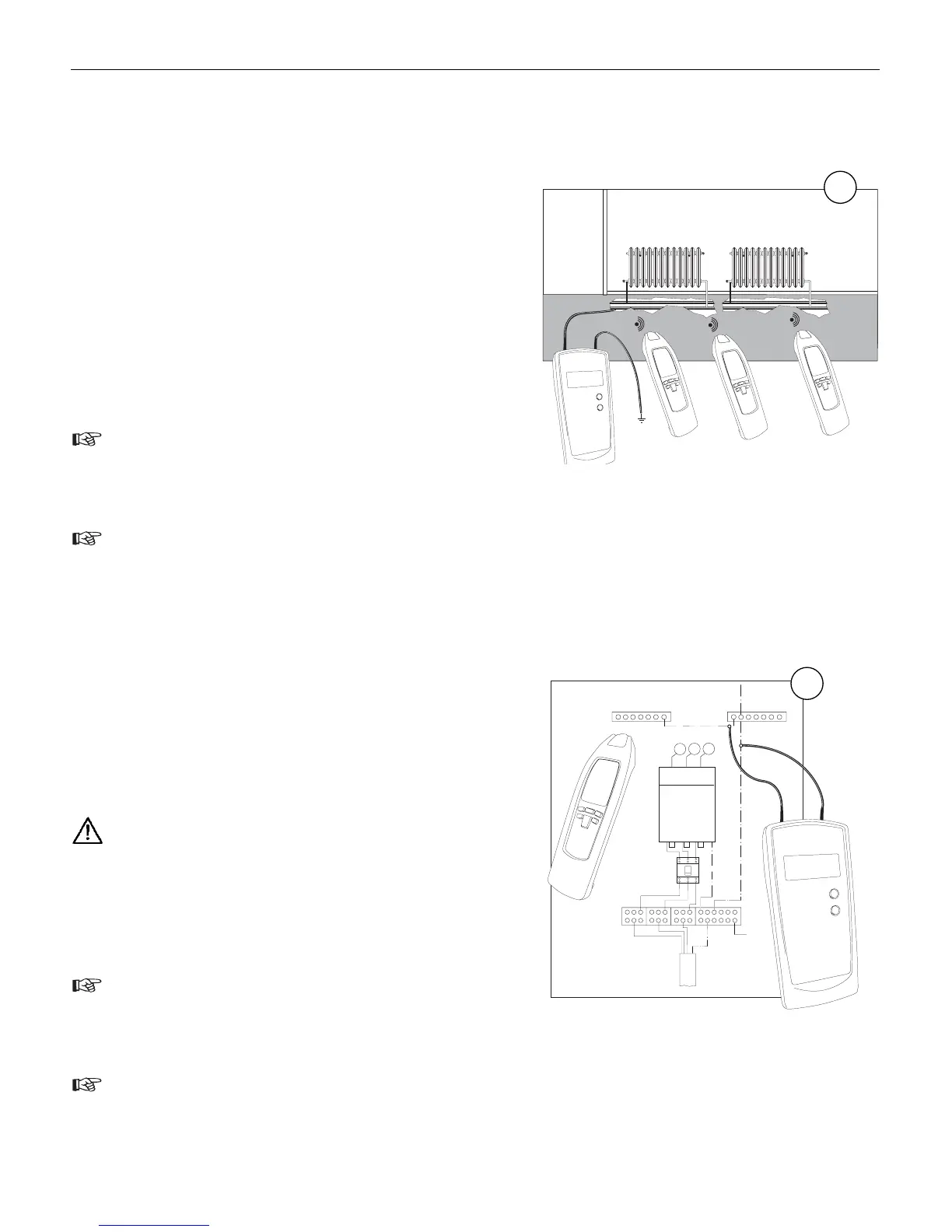

Detedting the direction of water and heating pipes already installed
(one-pole application)
Requirements:
• The respective water and heating pipes must be
suitably grounded.
• Connect the transmitter according figure 13.
• Carry out this example as described in the application
example.
The earth of a properly earthed socket is a suitable
ground.
The switching with button 4 from »LEVEL I« to
»LEVEL III« the sensitvity of Distance is increased up
to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2,5 meters.
Locating a complete house wiring (one-pole application)
Practical application example
In order to determine all electrical lines of a house within
one working process, proceed as follevel is:
• Remove the bridge in the main distribution between
"PE" and "N".
For safety reasons, the system must not be live!
• Connect the transmitter to the system compliance with
the figure 14. Now, the neutral conductor, being present
within the total system, may be followed.
The switching with button 4 from »LEVEL I« to
»LEVEL III« the sensitvity of Distance is increased up
to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.
21
Fluke 2042
Users manual
13
14
