TS30 Test Set
Users Guide
Safety Information
The following symbols are used either on the test set or
in the manual:
Warning
Read all safety information before you use
the Product.
Do not use the test set if it is damaged.
Before you use the test set, inspect the case.
Look for cracks or missing plastic. Pay
particular attention to the insulation
surrounding the connectors.
If this product is used in a manner not
specified by the manufacturer, the
protection provided by the product may be
impaired.
Do not connect directly to mains.
Do not touch voltages > 30 V ac rms, 42 V ac
peak, or 60 V dc.
Do not use the Product around explosive
gas, vapor, or in damp or wet environments.
Measure a known voltage first to make sure
that the Product operates correctly.
Never hold the speaker against your ear
when it is on, or when turning it on or off.
Sounds emitted by the speaker can be loud
enough to damage your hearing.
Physical Characteristics
See Figure 1.
The TS30 housing is made of high-impact plastic. The
unit provides rugged service and withstands the rough
handling and shocks normally associated with field use.
The TS30 housing permits operation in bad weather,
such as in rain and dust storms.
The back of the handgrip has a contoured surface,
which lets you grip the test set between chin and
shoulder, leaving both hands free for other tasks.
The keypad has 16 keys that are recessed. The recessed
area protects the keypad and reduces accidental
pressing of the keys.
The belt clip includes a spring-loaded clip that ensures a
secure connection to belt loops and D-rings.
bfl01.eps

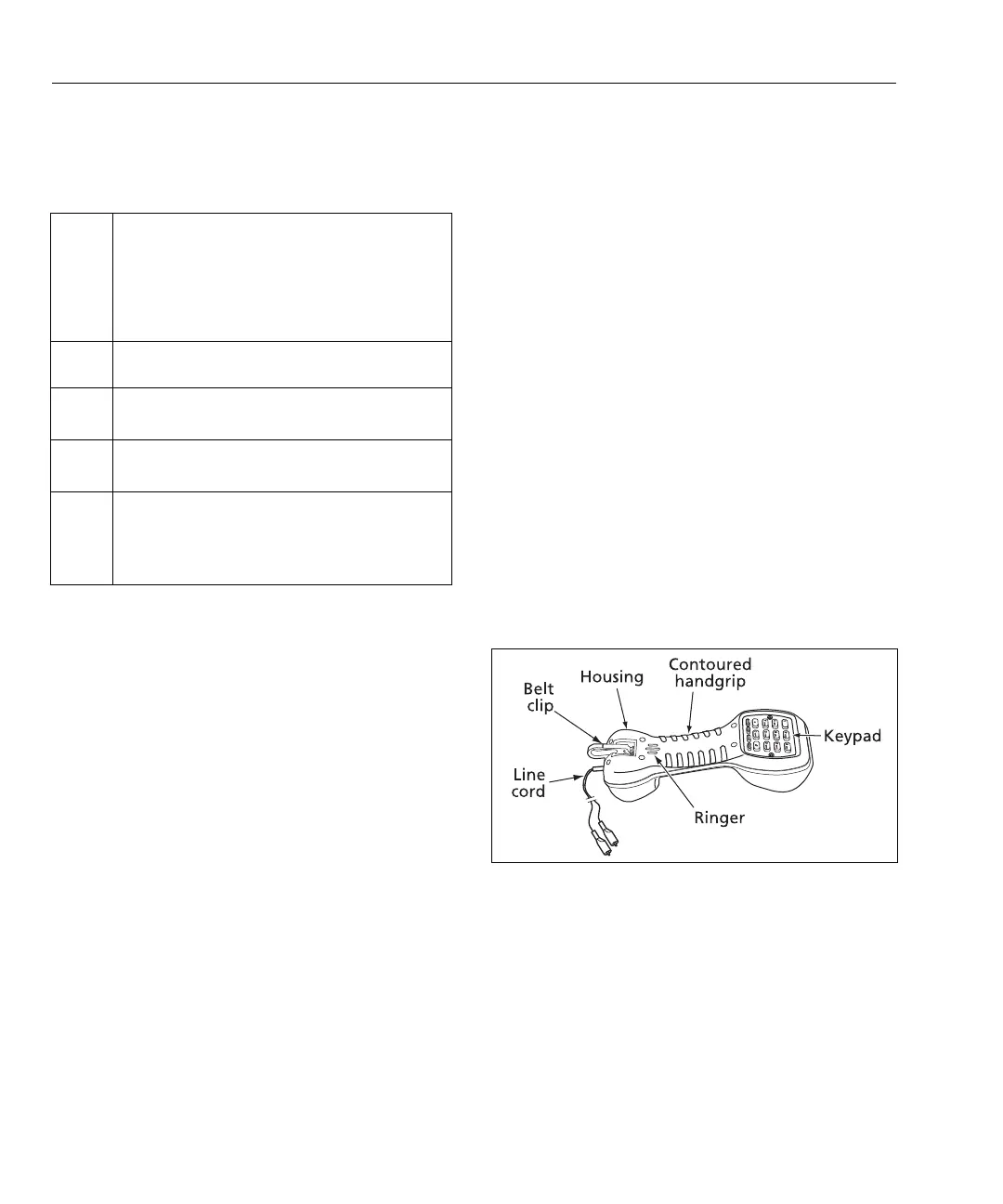

Figure 1. Physical Characteristics
The line cord is attached through a rubber strain relief.
See “Line Cord”.
The electronic ringer is located near the belt clip on the
hand grip.
Warning: Risk of personal injury. See the
manual for details.
Caution: Risk of damage or destruction to
equipment or software. See the manual for
details.
Warning: Risk of electric shock.
Conforms to relevant European Union
directives.
Complies with relevant North American
Safety Standards.
Do not put products containing circuit
boards into the garbage. Dispose of circuits
boards in accordance with local
regulations.
