Fluke 337 User Manual

ClampMeters
Performance Tests
7
Performance Test Procedure
To test each of the Meter’s functions and operating ranges, do the following:
1. Connect the source to the Meter’s VΩ and COM input jacks.
2. Referring to Table 2, put the Meter in the desired function and range for each test.
3. Apply the indicated output from the source.
4. When using the amp function on the 5520A, make sure LCOMP on the 5520A is ON.
5. The reading on the Meter display should be within the low and high limits shown in the table.
6. Repeat steps 1-4 for each function and range in Table 2.
If the Meter fails to perform within the low-high range indicated for each test in Table 2, the Meter needs
to be calibrated and adjusted, or requires some repair.
5520A Calibrator
50-Turn Current Coil
Conductor
1000A
600V
CAT
TRUE RMS CLAMP METER
337
OFF
V
A
V
Amps
AC
DC
Volt s
INRUSH
ZERO
MIN/MAX
Hz
MAX
MIN
A
Hz
COM
600V
V
CAT
HOLD
adc07f.eps

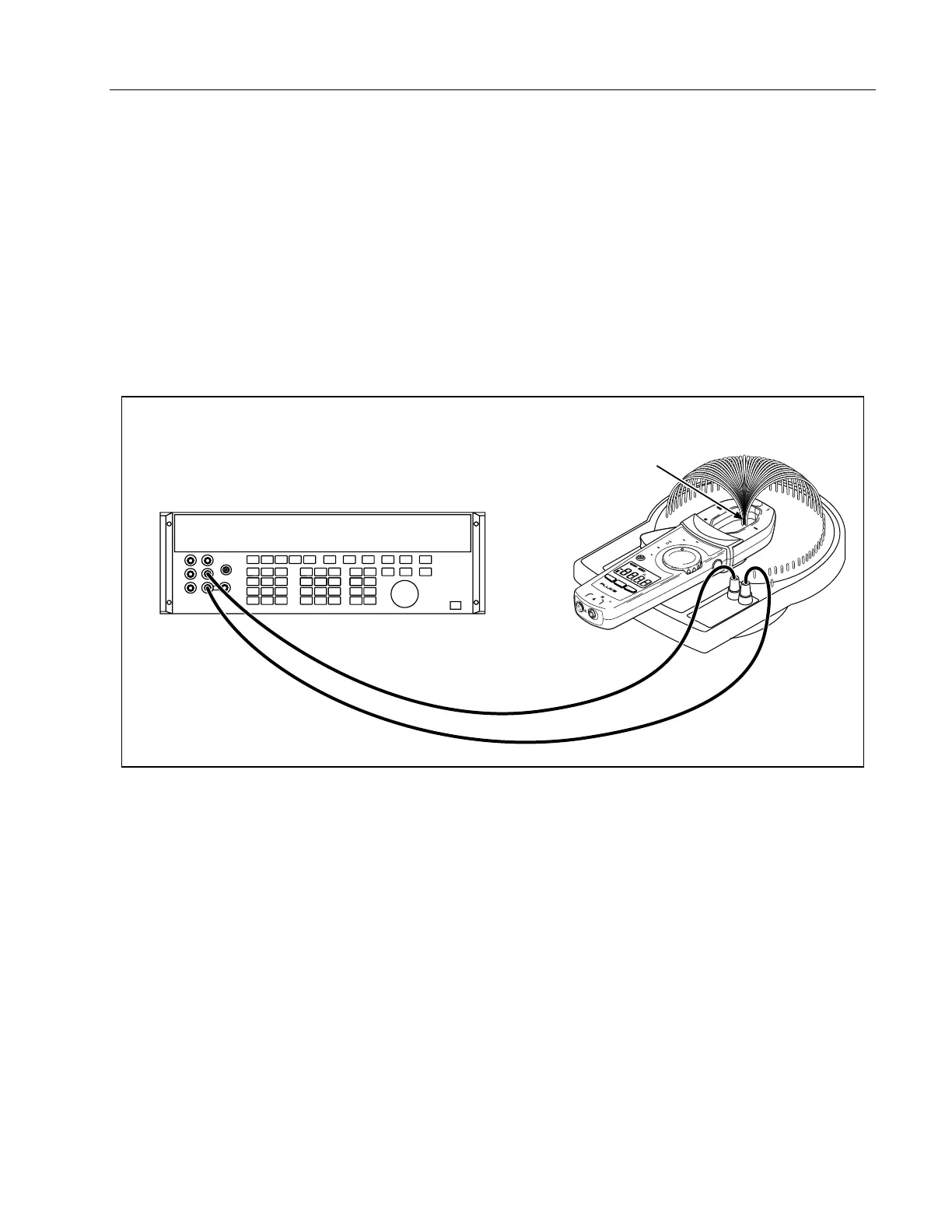

Figure 4. 33x Amps/Hz Verification Setup

Fluke 337 Specifications

General

Continuity	< 30 Ω
Safety Rating	CAT III 600 V
DC Current Accuracy	2.0% ± 5 digits
DC Voltage Accuracy	±1% + 3 digits
Resistance Accuracy	1.0% ± 5 digits
Display	LCD
Battery Type	2 x AA
