Fluke 718 30G - Page 20

718 30G/100G
Users Manual
12
COM
mA
30V
MAX
0-30psi 0-206kPa
RANGE
90psi 620kPa
MAX
UNITS
ZERO
DAMP
MIN
CLR
MAX
HOLD
LOOP
POWER
BAROMETRIC ADJ.
SIGNAL
TEST
+
–
Pressure Module
Red
Black
718
PRESSURE
CALIBRATOR
HOLD
wh010f.eps

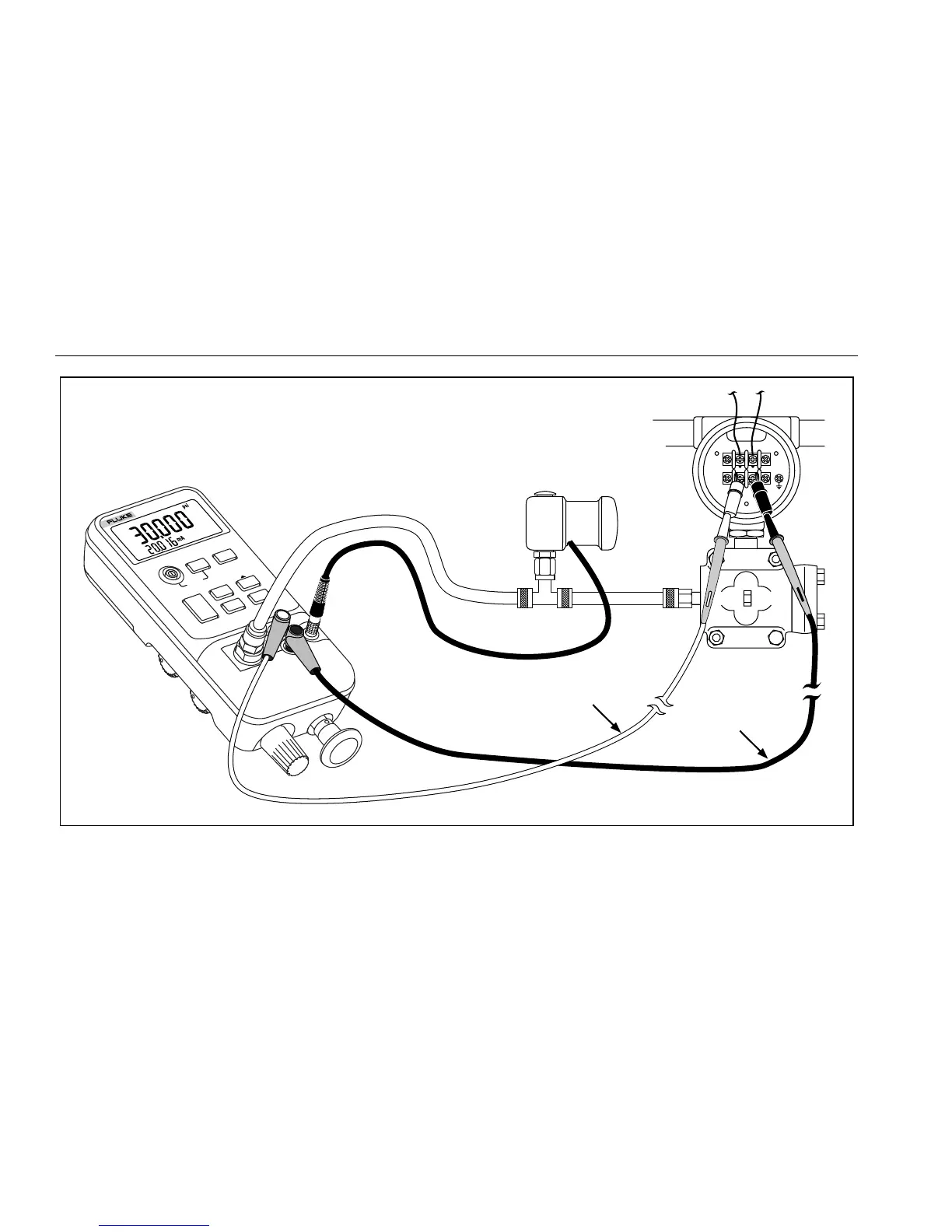

Figure 5. Pressure Module with Internal Pump
