Automotive Multimeter
The Meter's Features
11

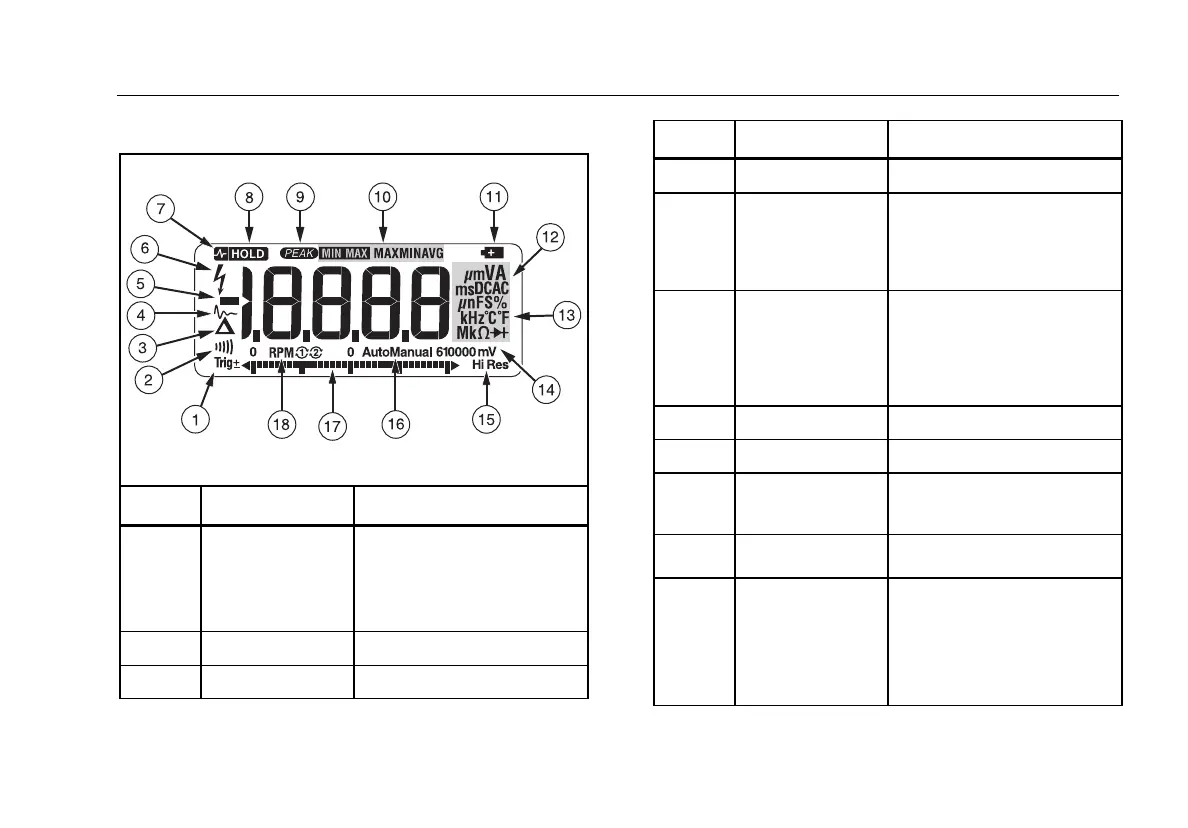

Table 6. Display Features
ayg04f.eps
Number Feature
Indication
Y
Polarity indicator for the
analog bar graph.
A
TrigY
Positive or negative slope
indicator for Hz/duty cycle
triggering, pulse width, RPM.
B X
The continuity beeper is on.
C W
Relative (REL) mode is active.
Number Feature
Indication
D a
Smoothing is active.
E -
Indicates negative readings. In
relative mode, this sign
indicates that the present input
is less than the stored
reference.
F Z
Indicates the presence of a
high voltage input. Appears if
the input voltage is 30 V or
greater (ac or dc). Also
appears in cal, Hz, and duty
cycle modes.
G
RS
AutoHOLD is active.
H
S
Display Hold is active.
I p
Indicates the Meter is in Peak
Min Max mode and the
response time is 250 µs.
J
m
MAX MIN AVG
Indicators for minimum-
maximum recording mode.
K b
The battery is low.
XWWarning: To avoid false
readings, which could lead to
possible electric shock or
personal injury, replace the
battery as soon as the battery
indicator appears.
