Fluke CableAnalyzer DSX-5000 User Manual

 Do not disassemble or crush battery cells and
battery packs.
 Do not put battery cells and battery packs near heat
or fire. Do not put in sunlight.
 Do not operate the Product with covers removed or
the case open. Hazardous voltage exposure is
possible.
 Remove the input signals before you clean the
Product.
 Have an approved technician repair the Product.
 Do not put metal objects into connectors.
 For Products with rechargeable batteries, use only
AC adapters approved by Fluke Networks for use
with the Product to supply power to the Product
and charge the battery.
Caution
To prevent damage to the Product or cables under test
and to prevent data loss, read all safety information given
in all documentation supplied with the Product.
Connectors, Keys, and LEDs
HFO00EPS

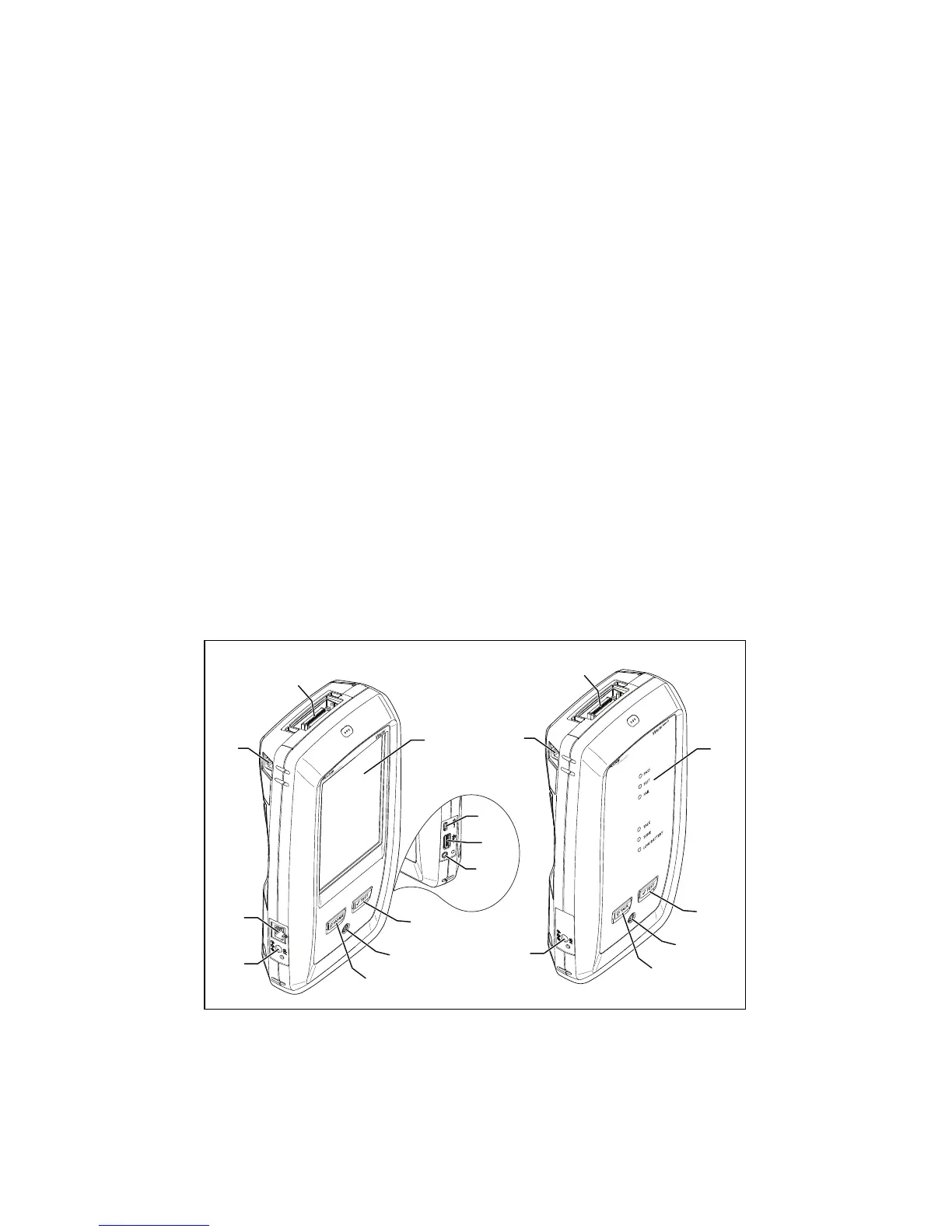

Figure 1. Connectors, Keys, and LEDs
 Connector for a link interface adapter.
 RJ45 jack for communications between the main and remote
testers when you do alien crosstalk measurements.
 LCD display with touchscreen.
A
B
H
G
C
I
K
J
D
E
F
A
B
G
L
D
E
M

Fluke CableAnalyzer DSX-5000 Specifications

General

Category	Measuring Instruments
Model	DSX-5000
Manufacturer	Fluke Networks
Measurement Type	Cable Certification
Test Speed	9 seconds for Cat 6A certification
Battery Life	8 hours
Supported Cable Types	Twisted Pair (Cat 5e, 6, 6A, 8)
Test Standards	TIA, ISO
Display	5.7 inch color LCD with capacitive touchscreen
Battery	Rechargeable lithium-ion
Operating Temperature	0°C to 45°C
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Connectivity	USB, Wi-Fi
Accuracy	Meets or exceeds TIA Level V and IEC Level V accuracy requirements
