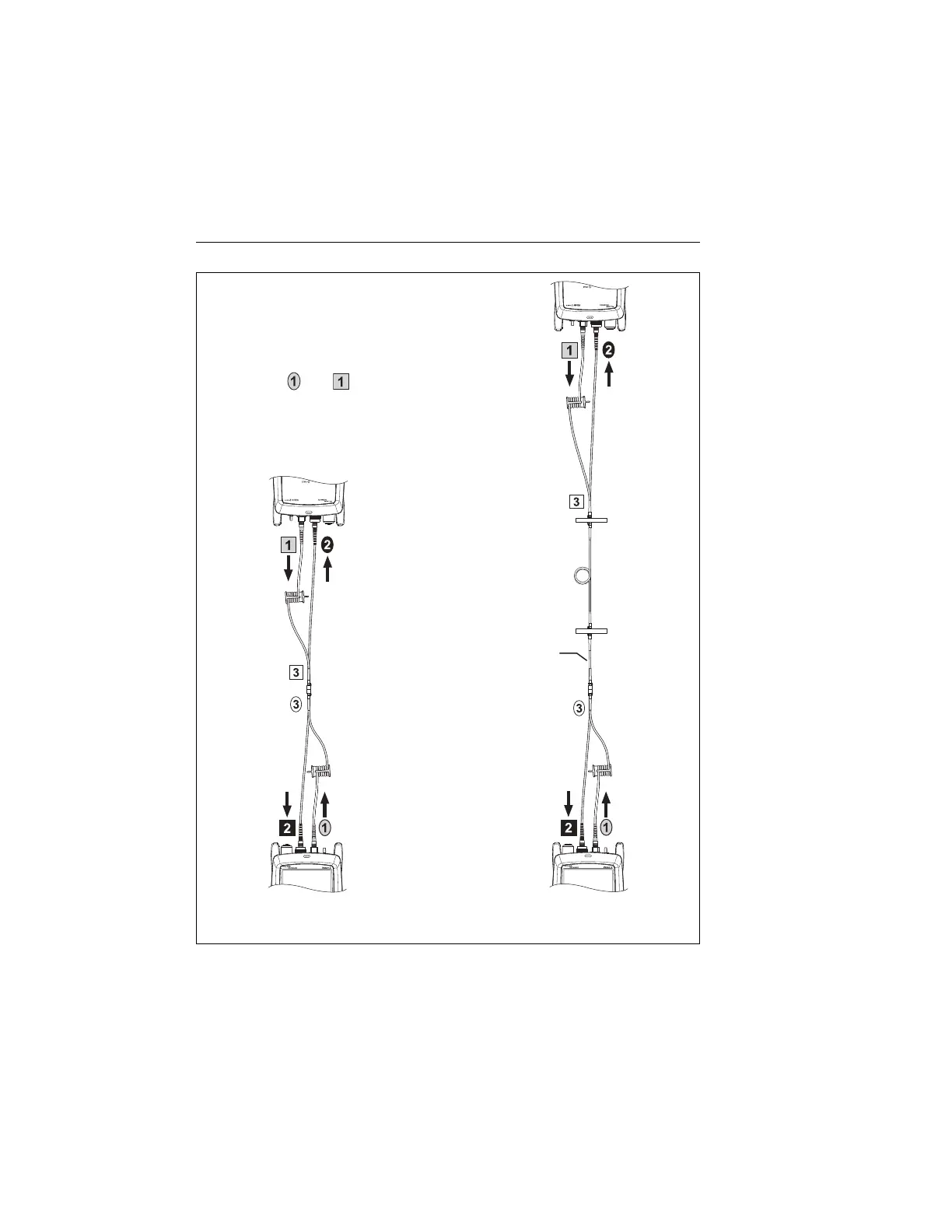

Figure 133. Modified 1 Jumper Reference Method for
Smart Remote Mode
WCaution
Do not disconnect the outputs
( and ) after you set the
reference.
Short MT-RJ (no pins)
to MT-RJ (pinned)
test reference cord
(0.3 m or less.
Fiber Link Test
Reference
Mandrel*
Mandrel*
*Use mandrels only with multimode modules.
