DC Inverter U-match Series Duct Type Unit

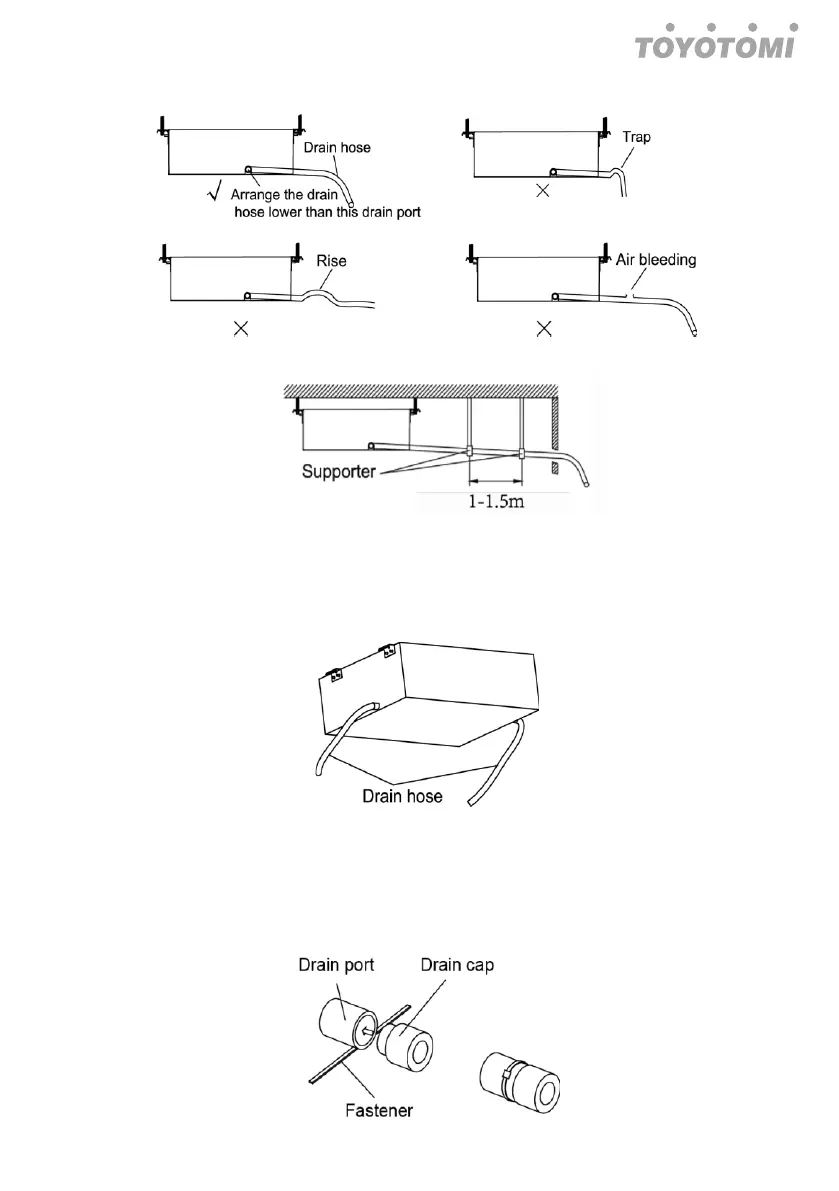

pocket. See the following figure.
(3) When the hose is long, install supporters. See the following figure.
(4) Always use the drain hose which has been insulated properly
(5) Use a suitable drain hose
(6) There is a drain port on both the left and right sides. Select the drain port to
match the local conditions. See the following figure.
(7) When the unit is shipped from the factory, the drain port is defaulted to be the
one on the left side (electric box side).
(8) When using the drain port on the right side of the unit, reinstall the drain cap to
the left side drain port. See the following figure.
